1999-2003 Fiat Punto Service and Repair Manual

Fiat Punto 1999–2003: Service and Repair Manual Scope

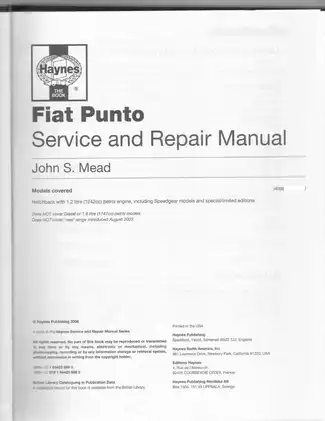

• Covers 1999–2003 Fiat Punto hatchbacks with 1.2-liter 8-valve SOHC and 16-valve DOHC petrol engines, including Speedgear and Sporting variants
• Official Haynes publication P/N 4066, copyright 2006
• Contains 97 pages of technical information including detailed engine repair, transmission service, fuel system schematics, and cooling system data
• Files download to your account within seconds of checkout
• Re-download the file any time, no expiration
• OCR text layer lets you jump to a torque spec by keyword
• Suitable for printing individual sections for shop-floor use
• This Haynes publication provides the factory-referenced service data for the 1.2-liter engine range, excluding the diesel and 1.8-liter petrol units produced from August 2003 onwards

Manual Content and Structure

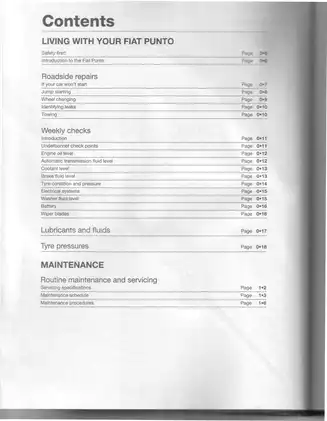

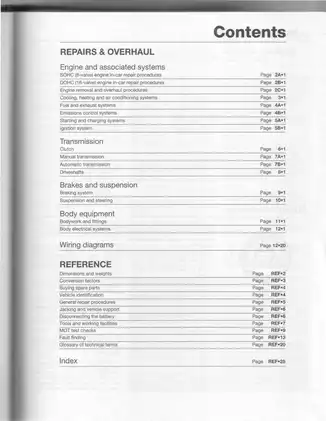

The manual offers a structured approach to vehicle maintenance, organized into clear chapters covering major systems and roadside repair procedures. It details engine and associated systems for both 8-valve and 16-valve units, including removal and overhaul. Transmission coverage spans manual, automatic, and CVT systems, while the chassis section documents braking, suspension, and steering maintenance. Electrical systems and body equipment are addressed alongside comprehensive wiring diagrams. A reference section provides dimensions, weights, conversion factors, and vehicle identification data to assist with parts procurement.

Technical Specification Highlights

This publication includes detailed specification tables for engine oil capacity, valve clearances, and torque settings. Engine oil capacity for the 1.2-liter units is listed at 2.80 liters. Inlet valve clearance for the SOHC engine is documented at 0.40 ± 0.05 mm in the specification table. The cooling system antifreeze mixture is specified to provide protection down to -35°C. For what an OEM service publication covers, users can reference the included technical tables covering bolt torques such as the 86 Nm requirement for roadwheel bolts. This Haynes workshop manual is a vital reference for technicians and owners maintaining the 1999–2003 Fiat Punto petrol range, providing complete coverage of engine, chassis, electrical, and maintenance specifications.
