Fiat Ducato X250 Technical Training Manual (2006)

Fiat Auto S.p.A.’s Italian-language Parts & Services Training Academy publication covers the 2006 Ducato X2/50 generation, also referenced as X250. It explains launch-year vehicle architecture, configuration data, system operation, connector pinouts, and diagnostic references. This is technical training material, not a complete step-by-step workshop repair manual.

PDF Text Search and Diagram Detail

Search and wiring labels: The main text supports PDF text search, but labels within image-based wiring diagrams are not searchable. There are no embedded PDF bookmarks. Small pin numbers and wire codes in the sampled engine-management and HVAC diagrams require zooming.

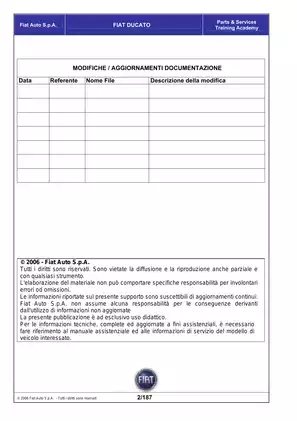

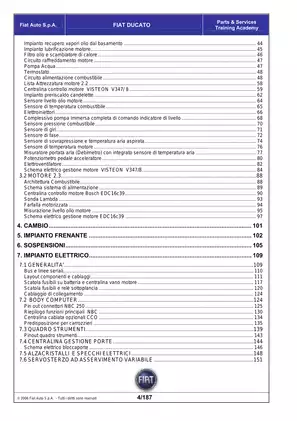

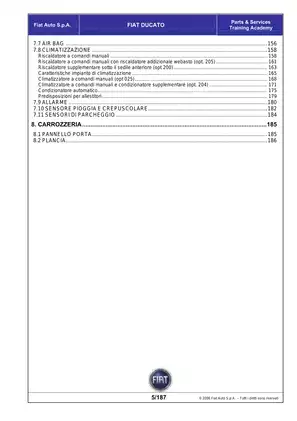

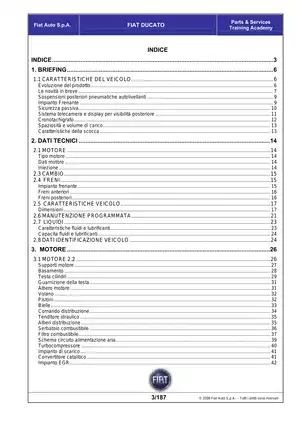

One printable, 187-page PDF in Italian, supplied in a RAR archive. The total includes five opening pages: the cover, documentation-update page, and three-page contents section.

Engine Systems, Chassis, and Electrical Diagnostics

The following selected topics illustrate the coverage rather than reproduce the full contents. Other examples include rear-camera operation and digital tachograph applications.

• Engine construction: Cylinder-head layout, piston and connecting-rod classifications, chain-driven timing, turbocharger, EGR, crankcase ventilation, lubrication, and cooling on the 2.2 engine.

• Fuel and engine control: Denso common-rail operation, Visteon V347/8 and Bosch EDC16C39 management, ECU pinouts, sensor characteristics, and engine-management wiring diagrams.

• Chassis and brakes: MacPherson front suspension, rear leaf-spring configurations, Bosch 8.0 ABS/EBD, optional stability systems, and Drum-in-Hat parking-brake construction.

• Diagnostic and service references: Timing-alignment instructions, injector IMA coding requirements, glow-plug current charts, instrument-cluster replacement requirements, and Servotronic fault strategies.

• Electrical architecture: NANO-FLORENCE B-CAN/C-CAN/A-BUS network diagrams, NBC 250 Body Computer pinouts, harness layouts, fuse and relay assignments, and door-control circuits.

• Climate and conversion equipment: Manual and automatic climate systems, Webasto heating, rear auxiliary HVAC circuits, and electrical interfaces for bodybuilders.

The content is suited to technicians already familiar with diesel and automotive electrical systems who can interpret connector pinouts and use vehicle diagnostic equipment.

Vehicle Configurations and Powertrain Differences

Vehicle coverage includes Furgone panel vans, dropside trucks, chassis cabs, chassis cowls, and special conversion bases. Wheelbase and roof designations run from CH1 through XLH3; Panorama, double-cab, person-transport, minibus, and bodybuilder applications appear where their equipment differs.

The powertrain material distinguishes the 2.2 4HV 100 Multijet with Visteon V347/8 management from the 2.3 Sofim F1AE0481ID 120 and F1AE0481IM 130 Multijet engines with Bosch EDC16C39 control. MLGU five- and six-speed gearbox and clutch combinations are identified.

The 2.3 chapter concentrates on changes from the previously known engine configuration, including fuel architecture, the wideband lambda sensor, motorized throttle, and electronic oil-level system. The later 3.0 Multijet/M40 package is mentioned as an upcoming late-2006 addition, without a detailed technical chapter.

Maintenance Data and Engine Service References

Configuration tables distinguish Light and Maxi running gear, load ratings, brake sizes, wheel and tire combinations, and standard or widened rear-track applications. Dimension drawings cover the different van, truck, and conversion bases.

Scheduled-maintenance tables, approved fluid and lubricant types, system capacities, vehicle and engine identification locations, and paint-code information support service planning. The suspension material also identifies Light and Heavy spring variants, Panorama comfort springs, and late-2006 self-leveling pneumatic suspension.

The 2.2 timing section provides a short step-by-step alignment procedure. Its factory tool list includes timing pins 2000016500, oil-pump centering fixture 2000016700, injector extractor 2000017200, and crankshaft timing fixture 2000018700.

Electrical Fault Tracing and Replacement Requirements

The connector pinouts and system descriptions support fault tracing and repair planning. A connector-code comparison table relates original connector names to Fiat’s standardized diagram labels, helping technicians follow circuits across the different drawing conventions.

Diagnostic notes explain IMA-code entry after injector replacement, instrument-cluster proxy alignment, and restoration of odometer and service data. Body Computer logistic-mode handling and parking-sensor configuration for towbar-equipped vehicles are also covered.

The electrical chapter maps engine-compartment, dashboard, cab, optional-equipment, and rear harnesses. It distinguishes Modale and Comfort instrument clusters and four door-control configurations, with material on electric windows and mirrors, TRW variable-assist steering wiring, airbags, alarm and anti-tilt systems, and rain/light sensing.

Heating, Air Conditioning, and Bodybuilder Interfaces

HVAC coverage distinguishes manual heat, Webasto auxiliary heat, under-seat rear heat, manual and automatic single-zone air conditioning, and rear auxiliary climate control. The diagrams include Webasto heater wiring and the manual front/rear auxiliary climate circuit.

Bodybuilder material includes the Opt. 081 interface, auxiliary battery and alternator provisions, rear-speaker preparation, and option fuse/relay modules.

Repair Scope and Component Cautions

The gearbox, brake, suspension, and body chapters mainly explain construction and system differences. They do not provide complete transmission teardown, brake overhaul, body-panel replacement, or component-by-component removal and installation procedures. The door-panel and dashboard section consists primarily of exploded assembly views.

Fiat identifies the publication as training material and directs readers to the applicable service manual and current service information for complete repair data.

The 2.2 section warns that the intake and exhaust camshafts are not interchangeable because their cam spacing differs; mixing them during repair could leave the valve train incorrectly assembled. It also identifies the airflow meter as a non-separable assembly, so attempting to dismantle it risks damaging the sensor.

Before working on common-rail fuel components, brake hydraulics, refrigerant circuits, airbags, or electrical systems, follow the appropriate depressurization and isolation procedures and use the current service information for the exact vehicle configuration.

A Preview of Sensor and EGR Reference Values

For the 2.2 engine, the fuel-temperature sensor table specifies 2.45 kΩ (+0.14/-0.13 kΩ) at 20°C and 0.318 kΩ (±0.008 kΩ) at 80°C. These entries accompany a component drawing and electrical connection diagram.

The 2.2 EGR electrical reference lists 5 Ω between actuator pins 1 and 5, alongside separate closed-valve position-sensor resistance values and ECU pin assignments.
