Yamaha EF800/EF1000 Generator Service & Repair Manual – 2003 (P/N 7XD-28197-40)

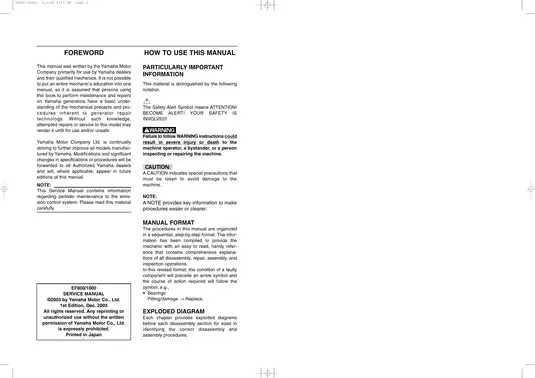

Yamaha Motor Co., Ltd. service manual P/N 7XD-28197-40, 1st Edition, December 2003, covers the EF800 (7XC3) and EF1000 (7XD3/7XD2) generator variants listed above. Match the model code, market version, and starting serial when selecting this manual.

Searchable Text and Wiring Diagram Detail

Search, navigation, and small labels: PDF text is searchable across the service chapters; there are no embedded PDF bookmarks. Small wire-color codes and connector labels in dense circuit and routing diagrams need zooming for comfortable reading.

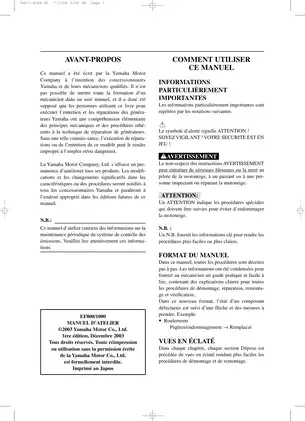

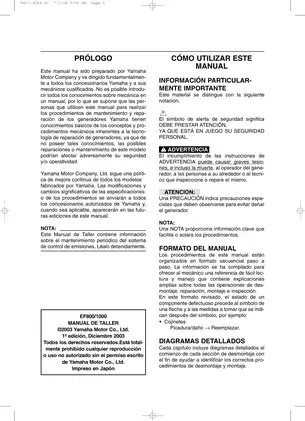

One printable, 218-page PDF contains English, French, and Spanish text. The total includes the covers, introductory/index pages, three section dividers, and two largely blank pages.

Engine Overhaul and Generator Fault Diagnosis

The following is a selection of covered work rather than a complete contents list; additional topics include fuel-petcock service and breather-hose inspection.

• Maintenance and adjustment: Periodic inspection charts, engine-oil service, air-filter and muffler care, valve-clearance adjustment, compression checks, and engine-speed adjustment.

• Internal engine repair: Step-by-step procedures for cylinder-head service, valve-seat lapping, crankcase separation, camshaft inspection, piston/ring measurement, and connecting-rod oil-clearance checks.

• Starting and generation: Recoil-starter disassembly and assembly, magneto-rotor removal, generator removal and installation, and governor inspection.

• Carburetor service: Removal, teardown, passage cleaning, needle/seat inspection, and float-height measurement.

• Electrical fault isolation: CDI ignition tests, main/sub-coil and rotor checks, rectifier diagnosis, oil-level switch testing, and AC/DC protector and receptacle checks.

• Schematics and troubleshooting: Market-specific circuit diagrams, wire-routing drawings, and fault charts for starting problems, uneven engine speed, weak spark, and low generator output.

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes an understanding of generator repair technology.

Internal Engine Inspection and Workshop Tools

The engine chapter goes well beyond routine maintenance on the 84 cc, single-cylinder, forced-air-cooled OHV four-stroke. It covers rocker arms, valves and valve springs, push rods, camshaft and lifters, crankshaft, and crankcase inspection.

Wear decisions are tied to factory dimensions rather than visual judgment alone. Cylinder-head warpage, crankshaft runout, piston-pin fit, and separate top-, second-, and oil-ring specifications support inspection during an overhaul. Component-specific torque tables distinguish the cylinder head, head cover, spark plug, and generator rotor.

Exploded views include Recoil Starter, Rotor and Piston, Connecting Rod, Crankshaft and Crankcase, with assembly references and lubrication markings.

Mechanical tools: The tool list identifies crankcase separator YU-01135-A / 90890-01135, piston-ring compressor YU-33294 / 90890-05158, and sheave holder YS-01880 / 90890-01701. It also lists armature shock puller 90890-01290 with weight 90890-01291.

Compression testing calls for gauge YU-33223 / 90890-03081 and adapter YU-33223-3 / 90890-04082.

Mikuni Carburetor and Governor Differences

The Mikuni 7TA-10 specifications identify the bore, main jet, pilot jet, and float height. The float-height procedure covers measurement and inspection; the float is specified as nonadjustable.

Governor data distinguishes the spring positions and engine-speed settings for 50Hz and 60Hz builds. Those details matter when a repair involves an engine that runs but will not carry the correct generator frequency or load.

Market-Specific Electrical Systems

The EF800 circuit is 220V/50Hz. EF1000 configurations are 230V/50Hz for Germany/U.K., 120V/60Hz for Taiwan, 220V/50Hz for China/Africa/South America, and 230V/50Hz for Australia/New Zealand.

Control-box hardware: Germany/U.K. EF1000 layouts include the noise filter. Other EF1000 layouts show the rectifier, DC protector, and DC receptacle for the 12V DC circuit; the DC protector procedure excludes Germany and the U.K. The control-box disassembly views distinguish these configurations.

Fault tracing: The charts Ignition System – No Spark or Weak Spark and Generator System – Weak or No AC Current relate symptoms to component tests. Electrical references cover spark-plug-cap resistance, ignition-coil primary/secondary resistance, charge and pulser coils, rotor-coil data, and DC-output checks.

The Wire Routing Diagram – Engine and Generator identifies harness paths, clamps, and ground connections for reassembly. Ignition testing equipment includes Yamaha dynamic spark tester YM-34487 and ignition checker 90890-06754.

Bearing, Spark Plug, and Muffler Precautions

Yamaha warns that spinning dry bearings with compressed air damages the bearing surfaces. Its installation and cleaning notes also address spark-plug thread damage and loss of muffler damping material from internal cleaning with wire.

Fuel-system work, hot exhaust components, ignition testing, and live generator-output checks all carry real hazards. Use the manual’s safety notes, specified test equipment, and grounding procedures when performing hands-on repair or diagnostics.

A Preview of Engine Clearances and Coil Test Values

For internal-engine inspection, standard piston clearance is 0.020–0.035 mm. The connecting-rod oil-clearance check specifies 0.016–0.034 mm, with a 0.10 mm limit, alongside the Plastigauge inspection procedure.

Main-coil resistance is specified at 20°C (68°F): 7.6 Ω ±20% for 220/230V, 50Hz builds and 3.2 Ω ±20% for the 120V, 60Hz version. The separate values keep electrical diagnosis tied to the correct generator configuration.
