Yamaha EF4000/4600/5500/6600 Generator Manual Set, 1996 + Supplements (P/N 7RH-28197-80)
460 Pages • Printable PDF • 23.06 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models: EF4000, EF4000E, EF4600, EF4600D, EF4600E, EF5500, EF5500E, EF6600, EF6600E, EF6600DE, EF5500TE, EF6300iSDE, EF6300iSE
Models & Model Codes:
EF4000 — 7RG3
EF4000E — 7RG3
EF4600 — 7RG3 (220V/50Hz, 220V/60Hz), 7RG4 (240V/50Hz)
EF4600D — 7RG2 (120/240V/60Hz)
EF4600E — 7RG3 (220V/50Hz)
EF5500 — 7RH3
EF5500E — 7RH3
EF6600 — 7RH3 (base manual), 7CC3 (supplement)
EF6600E — 7RH3 (base manual: 220V/50Hz, 220V/60Hz), 7RH4 (base manual: 240V/50Hz), 7CC3 (supplement: 220V/50Hz)
EF6600DE — 7RH2 (base manual), 7CC2 (supplement)
EF5500TE — 7CC8 (supplement only)
EF6300iSDE — 7CK2 (supplement only)
EF6300iSE — 7CK3 (supplement only)
Sub-models / Variants: 120/240V/60Hz, 220V/50Hz, 220V/60Hz, 230V/50Hz, 240V/50Hz configurations; EF5500TE supplement: 220/380V/50Hz
Model Year: 1996
Serial Numbers: Base manual: EF4000 0320101–, EF4000E 0330101–, EF5500 0320101–, EF5500E 0330101–, EF4600 (220V/50Hz) 0300101–, EF4600 (220V/60Hz) 0360101–, EF4600 (240V/50Hz) 0400101–, EF4600D 0200101–, EF4600E 0340101–, EF6600 0300101–, EF6600E (220V/50Hz) 0340101–, EF6600E (220V/60Hz) 0360101–, EF6600E (240V/50Hz) 0400101–, EF6600DE 0200101–
Serial Numbers (EF5500TE/EF6600 supplement): EF5500TE (220/380V/50Hz) 7CC-0800101~, EF6600 (220V/50Hz) 7CC-0100101~, EF6600E (220V/50Hz) 7CC-0140101~, EF6600DE (120/240V/60Hz, Canada) 7CC-0220101~, EF6600DE (120/240V/60Hz, except Canada) 7CC-0200101~
Serial Numbers (EF6300iSDE/EF6300iSE supplement): Canada 7CK-0210101~, Australia 7CK-0310101~
Specification scope: The technical specifications below apply to the base-manual models.
-
Engine oil capacity: 1.1 L (0.97 imp qt, 1.16 US qt)
-
Engine compression ratio: 8.1 : 1
-
Engine speed (no load, 60 Hz): 3,750 ± 50 rpm
-
Engine speed (no load, 50 Hz): 3,150 ± 50 rpm
-
Spark plug: NGK BPR4ES
-
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
-
Intake/Exhaust valve clearance (cold): 0.1 mm (0.004 in)
-
Oil drain plug torque: 20 Nm (14 ft-lb)
-
T.C.I. air gap: 0.4–0.6 mm (0.0157–0.0236 in)
-
Flywheel nut torque: 120 Nm (85 ft-lb)
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Service Manual — P/N 7RH-28197-80, February 1996: EF4000, EF4000E, EF4600, EF4600D, EF4600E, EF5500, EF5500E, EF6600, EF6600E and EF6600DE | 238 |
| Supplementary Service Manual — P/N 7CC-28197-40, May 2006: EF5500TE, EF6600, EF6600E and EF6600DE | 106 |
| Supplementary Service Manual — P/N 7XF-28197-41, December 2008: EF6300iSDE and EF6300iSE | 116 |
The EF5500TE/EF6600 supplement updates conventional-generator specifications and electrical documentation. The EF6300iSDE/EF6300iSE supplement belongs to a separate inverter-generator manual family and requires its own base manual.
Companion manuals: Complete EF6300iSDE/EF6300iSE service information requires the EF4500iSE Service Manual, P/N 7XF-28197-40, which is not included. The EF5500TE/EF6600 supplement also references P/N 7RH-28197-N0 and P/N 7WV-28197-40; neither is included.
PDF Search, Bookmarks and Diagram Detail
Search and diagram access: The base manual has no searchable text. The supplements contain searchable text and section bookmarks; most base-manual bookmark entries are unnamed. Small wire-color codes and connector labels in the wiring diagrams require zooming.

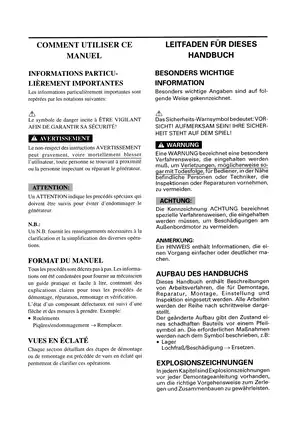

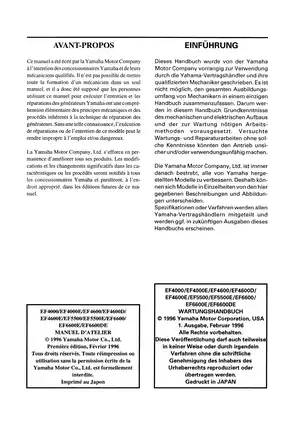

The 460-page printable PDF combines all three publications, including their covers, preliminary pages, blank pages, memo pages and accessory material. The base manual contains English, French and German text; the supplements contain English, French and Spanish text.
Engine Service, Generator Testing and Control Systems
The following selected coverage highlights summarize the main workshop areas rather than reproduce the complete contents. Other documented topics include optional remote-control installation and wheel-kit assembly.
-
Engine repair: Step-by-step removal and installation charts for the cylinder head, valves, piston, balancer shaft, camshaft and crankshaft, with assembly notes and inspection specifications.
-
Maintenance and adjustment: Valve-clearance adjustment, compression testing, governor setting, engine-speed adjustment, ignition air-gap checks and fuel-system inspections.
-
Carburetion and starting: Carburetor disassembly charts, model-specific identification data, float-height specifications, bimetallic auto-choke operation and recoil-starter disassembly.
-
Conventional electrical systems: Ignition, electric-starting, battery-charging and generator-output troubleshooting charts, plus starter-motor inspection and economy-idle diagnosis.
-
EF5500TE/EF6600 updates: Three-phase and single-phase generator specifications, variant-specific circuit diagrams, control-panel wiring and engine/generator routing diagrams.
-
Inverter-generator controls: EF6300iSDE/EF6300iSE weak-output diagnosis, master/slave control-unit checks, interface-unit tests, and throttle- and choke-control troubleshooting.

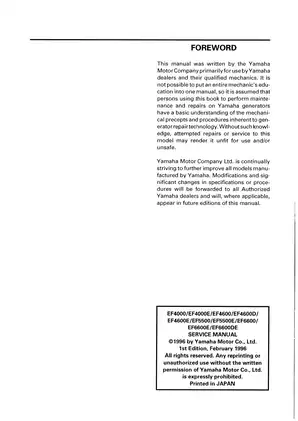

These publications were written primarily for Yamaha dealers and qualified mechanics, with a working knowledge of generator repair assumed.
Engine and Carburetor Service
The base manual’s job instruction charts pair exploded assembly views with removal lists, installation notes and component-specific tightening data. Internal-engine coverage includes piston-ring positioning, connecting-rod orientation and crankcase assembly notes, supported by piston, valve, camshaft and crankshaft inspection specifications.
Carburetor identification marks distinguish the documented applications. The fuel-system material also separates the older vacuum-assisted, electrically heated auto choke from the motor-operated choke used in the inverter supplement, helping technicians select the appropriate diagnostic approach.
The air-filter notes warn that wringing the foam element can tear it. The muffler section identifies wire cleaning as a cause of displaced sound-deadening material and reduced silencing.
Electrical Fault Tracing and Harness Routing
The base manual supports tracing starting and charging faults through the battery, switches, relay, charging coil and regulator. Its generator troubleshooting charts distinguish stator, rotor, rectifier and condenser checks rather than treating every output fault as a generator-assembly replacement.
The EF5500TE/EF6600 supplement adds separate circuit diagrams for the three-phase EF5500TE and the single-phase EF6600 variants. “Control Box Panel and Behind Control Box” and “Engine and Generator” routing drawings show the corresponding harness and vacuum-hose arrangements.
For the inverter models, the “Weak or No AC Current” chart links output symptoms to main-coil tests, master/slave control units, communication wiring and the interface unit. The “Throttle Control System” and “Choke Control System” charts address failure to start, stalling and uneven engine speed, including motor and thermo-sensor checks.
Follow the manual’s electrical-test and fuel-system precautions; generator output testing involves live circuits and running machinery.
A Preview of Carburetor and Choke Test Data
For the EF5500TE, the carburetor specification table lists a float height of 14.9 mm (0.59 in). In the base manual’s auto-choke description, the bimetallic strip may take up to two minutes to warm up and fully open the choke, depending on ambient temperature.
The EF6300iSDE/EF6300iSE troubleshooting charts specify 250 Ω ± 7% at 25°C (77°F) for both the throttle-control motor and auto-choke motor coils. These are motor test specifications, separate from the older bimetallic choke’s operating description.
