Yamaha XS650 Factory Service & Repair Manual Set with Supplements, 1974–1980 (P/N LIT-11616-00-76)
213 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
XS650E — 2F0 (engine model 2F0)
XS650SE — 2M0 (engine model 2F0)
XS650SF — 2M0 (engine model 2F0)
XS650-2F — 3N0 (engine model 2F0)
XS650G — 3G0 (engine model 2F0)
XS650SG — 3G1 (engine model 2F0)
XS650H — 4N9 (engine model 4N9)
XS650SH — 4M4 (engine model 4M4)
Model Years: 1974–1980 (1974, 1975, 1976, 1977, 1978, 1979, 1980)
Serial Numbers: XS650E from 2F0-000101; XS650SE from 2F0-100101; XS650SF from 2F0-150101; XS650-2F from 2F0-250101; XS650G from 3G1-000101; XS650SG from 2F0-200101; XS650H from 4N9-000101; XS650SH from 4M4-000101. Supplement serial breaks: XS650E after engine serial number 2F0-006501; XS650SE after engine serial number 2F0-114241. The revised XS650SE specifications also list 2F0-114241 as the frame starting number.
-
Engine displacement: 653 cc
-
Engine type: Air cooled, 4-stroke, SOHC twin
-
Compression ratio: 8.5:1 (XS650E, XS650SE base specifications, XS650SF and XS650-2F) / 8.7:1 (XS650G, XS650SG, XS650H and XS650SH)
-
Transmission type: 5-speed constant mesh
-
Drive system: Chain
-
Idle speed: 1,200 rpm
-
Spark plug gap: 0.7–0.8 mm (0.027–0.031 in)

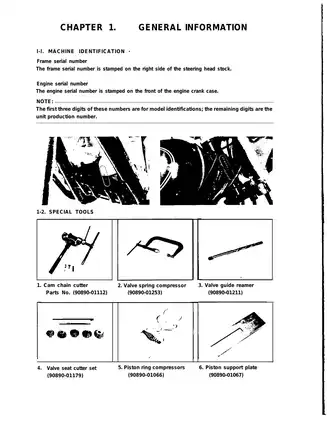

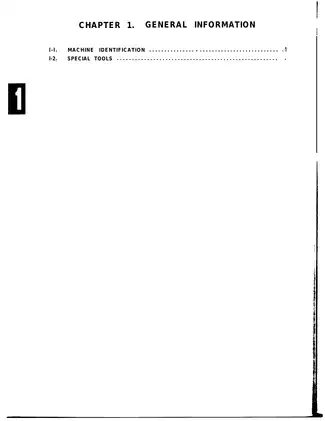

Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Yamaha XS650E Factory Service Manual (P/N LIT-11616-00-76) | 76 |
| XS650E Supplement, after engine serial number 2F0-006501 (P/N LIT-11616-01-03) | 5 |
| XS650G/XS650SG Supplement (P/N LIT-11616-01-75) | 28 |
| XS650H/XS650SH Supplement (P/N LIT-11616-02-30) | 28 |
| XS650SE Supplement | 24 |
| Revised XS650SE Supplement, after engine serial number 2F0-114241 | 25 |
| XS650SF/XS650-2F Supplement (P/N LIT-11616-01-65) | 26 |
Use the XS650E base manual for the full service procedures and the applicable supplements for changes to components, adjustments, and specifications. The G/SG and H/SH forewords also direct readers to earlier supplements included in the set.
The XS650SF supplement shows how to identify tube-type and tubeless wheels. Detailed service for the XS650SF tubeless tires and aluminum wheels requires a separate Yamaha manual sold separately from this set.
Text Search, Bookmarks, and Wiring Legibility
Finding procedures and diagrams: Text search works across many service sections. Several diagram pages have no searchable text. Chapter and supplement bookmarks are included, though the XS650E update is labeled XS650SE. Small wiring labels need zooming and some wire codes remain faint. Part of the drive-chain adjustment text on PDF p. 167 is obscured.
The download is one printable English PDF with 213 pages. The total includes the publication covers and one additional page at the end.
Engine Overhaul, Carburetor Service, and Electrical Tests
The items below are selected workshop topics. The set also covers engine and transmission oil service and checks for the self-canceling turn signals.
- Engine repair: Engine removal, top-end and bottom-end overhaul, valve-guide and valve-seat repair, camshaft inspection, and cam-chain timing.
- Clutch and transmission: Clutch disassembly, friction-plate checks, shift-drum and shift-fork inspection, transmission assembly, and electric-starter gear service.
- Carburetion: Mikuni carburetor disassembly, diaphragm and float-valve inspection, float-level adjustment, vacuum synchronization, and fuel-petcock service.
- Brakes and chassis: Caliper and master-cylinder repair, brake bleeding, front-fork overhaul, steering-head service, wheel-bearing replacement, and swing-arm inspection.
- Ignition and charging: Contact-breaker service, ignition timing checks, Transistor Control Ignition (TCI) diagnosis, AC generator tests, and regulator and rectifier inspection.
- Diagrams and reference tables: Model-specific wiring and cable-routing diagrams, maintenance and lubrication charts, conversion tables, and component torque specifications.
Suited to mechanics experienced in engine disassembly and electrical testing, with access to precision measuring tools, a timing light, and the specified service equipment.
Engine, Transmission, and Carburetor Repair
Inspection sections cover crankshaft runout, piston and ring fit, rocker-arm wear, and trochoid oil-pump clearances. Transmission drawings identify the gear and shift-drum assemblies. Starter-gear illustrations show the engagement mechanism and clip spring, and assembly tables give tightening specifications for the primary drive gear and clutch boss.
The earlier Mikuni BS38 and later BS34 sections give separate carburetor specifications. The H/SH supplement adds a fuel-level check through the float-bowl drain. On the XS650E, the synchronization procedure calls for checking ignition timing and valve clearances before balancing the carburetors.
Brake and Suspension Variants
The XS650SE, XS650SF, and XS650SG sections cover hydraulic rear disc brakes. The XS650E, XS650-2F, XS650G, XS650H, and XS650SH use rear drums. The chassis sections also cover fork oil replacement, rear shock inspection, and steering-head adjustment.
The brake chapter warns that cleaning solvents can swell and distort internal seals. Observe the manual’s precautions for brake work, ignition testing, and engine removal.
Ignition, Charging, and Starting Circuits
Separate contact-breaker and TCI test sections help match the diagnostic procedure to the fitted ignition system before replacing components. Charging coverage distinguishes the adjustable mechanical regulator from the later sealed IC regulator and rectifier.
The G/SG supplement specifies TORX socket 90890-01308-00 for the pick-up coil mounting bolts. H/SH introduces revised pick-up mounting and a starter cut-off circuit controlled by the neutral and clutch switches.
TCI block diagrams, reserve-lighting troubleshooting charts, and the H/SH starter circuit diagram support electrical diagnosis. The base manual also gives armature and starter relay tests. The TCI section warns that running the engine with the spark plug caps disconnected can damage ignition-coil insulation.
A Preview of Valve and Generator-Brush Specifications
Valve inspection: The XS650E lists cold intake and exhaust clearances of 0.10 mm and 0.15 mm, respectively. The G/SG and H/SH supplements list 0.06 mm intake and 0.15 mm exhaust, also cold. The XS650E overhaul chapter gives a standard valve-seat width of 1.3 mm and a wear limit of 2.0 mm.
Generator brushes: The XS650E inspection section gives a standard brush length of 14.5 mm and a wear limit of 7.0 mm.
