1970s–1980s Honda BF75 & BF100 Outboard Motor Shop Manual Set with BF8A Supplement (P/N 6688122)

119 Pages • Printable PDF • 5.47 MB • Download

4.5starstarstarstarstar_half(4)
$13.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

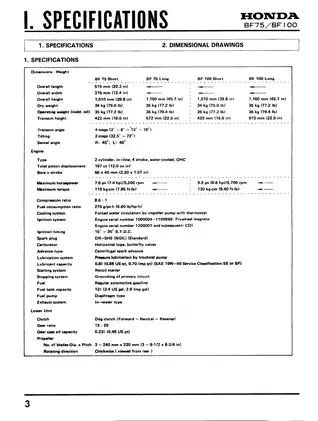

Honda Models Covered & Key Technical Specifications

Models: BF75, BF100

Sub-models / Variants: BF75 Short Shaft (BF 75S), BF75 Long Shaft (BF 75L), BF100 Short Shaft (BF 100S), BF100 Long Shaft (BF 100L)

Supplement coverage: BF8A — S (BACS), L (BACL); specifications, model differences, and reverse-lock/swivel-case service

Model Years: 1970s–1980s (1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 1984, 1985, 1986, 1987, 1988, 1989) referenced serial ranges 1000004 and subsequent

Serial Numbers: 1000004–1199999, 1200001–1299999, 1300001 and subsequent (BF75/BF100 engine serial numbers)

Fuel-pump serial breaks: BF75: 1000004–1102880 / 1102881 and subsequent; BF100: 1000004–1101260 / 1101261 and subsequent

Thermostat serial breaks: High-temperature type: through BF75 1004085 / BF100 1009155; medium-temperature type: from BF75 1004086 / BF100 1009156; low-temperature type: from 1600001, Canadian BF75/BF100 Long Shaft models only

Tubing serial breaks: Original-equipment orifice: from BF75 1004080 / BF100 1008730; revised water-check tube routing: BF75/BF100 engine serial 1500001 and subsequent

Electrical and control serial breaks: Revised throttle-grip and shift-shaft arrangements and neutral-start interlock: BF75/BF100 engine serial 1300001 and subsequent; revised CDI test table: BF75 1300701 / BF100 1300703 and subsequent; revised indicator-lamp installation: 1600001 and subsequent

BF75/BF100 supplement serial break: Production modifications compare serial numbers through 1699999 with 1700001 and subsequent

Shop Manual News frame serial numbers: BF75/BF100/BF8A: 1000001–1099999 / 1100001 and subsequent


  • Engine displacement: 197 cc

  • Engine type: 4-stroke, in-line, 2-cylinder, OHC, water-cooled

  • Bore x stroke: 56 x 40 mm

  • Max power (BF75): 7.5 ps @ 5,200 rpm

  • Max power (BF100): 9.9 ps @ 5,700 rpm

  • Compression ratio: 8.6:1

  • Fuel type: Regular automotive gasoline

  • Ignition system: CDI (serial 1200001+) or breaker-point magneto (serial 1000004–1199999)

  • Spark plug: DR-5HS (NGK)

  • Engine oil capacity: 0.8 liters

  • Gear oil capacity: 0.23 liters

  • Gear ratio: 12:29

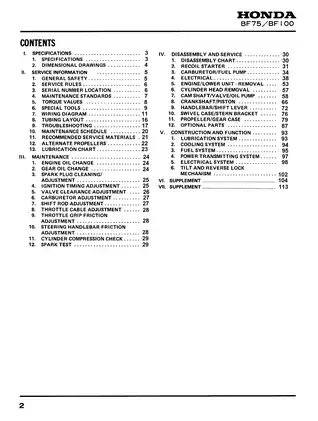

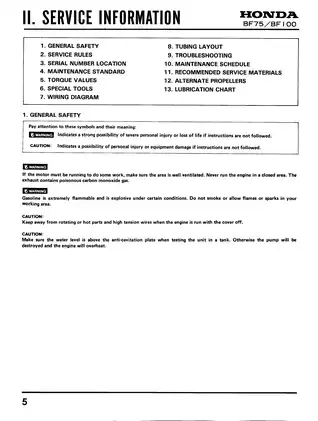

Honda Manual Features & Selected Content Preview

Publication Pages
Honda BF75/BF100 Shop Manual — 1970s–1980s; Publication No. 6688122; engine serial numbers 1000004 and subsequent 102
BF75/BF100 Supplement — serial numbers 1700001 and subsequent; Paper Book Part No. 6688120Z 9
BF8A Supplement — S/L configurations; Paper Book Part No. 6688121Z 5
Shop Manual News P/P-005 — BF75/BF100/BF8A production changes 2

The supplements add production changes and model-specific procedures to the base shop manual. BF8A coverage is supplemental: specifications, component differences, and dedicated reverse-lock/swivel-case service, with other procedures referring back to the base manual.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram access: Only the final page-range index has searchable text; the technical manual pages do not. Embedded bookmarks cover the main chapters and supplements, although the Frame part bookmark opens one page early. Main wiring diagrams are readable with zooming. Some small labels in the bulletin on PDF p. 118 remain difficult to distinguish when enlarged.

Supplied as one printable, English-language, 119-page PDF. Covers, prefaces, and contents pages are included in the publication counts above; the total also includes one final page-range index.


Engine, Ignition, and Lower-Unit Service

These selected topics outline the main workshop coverage; the manual also provides alternate-propeller applications and recommended service-material tables.

  • Engine repair: Step-by-step engine and lower-unit removal, cylinder-head disassembly, valve-seat refacing, camshaft and piston inspection, oil-pump service, and timing-belt installation.

  • Fuel and cooling: Carburetor disassembly and adjustment, diaphragm fuel-pump inspection, thermostat testing, cooling-water tube routing, and water-pump impeller service.

  • Electrical diagnosis: Contact-breaker and CDI wiring diagrams, coil and rectifier tests, neutral-switch checks, ignition timing adjustment, and DC output diagnosis.

  • Gear case and controls: Propeller-shaft and bevel-gear service, shim and washer selection, shift-rod adjustment, and throttle-cable setup.

  • Starting and mounting: Recoil starter repair, swivel-case and stern-bracket disassembly, reverse-lock service, and optional remote-control bracket installation.

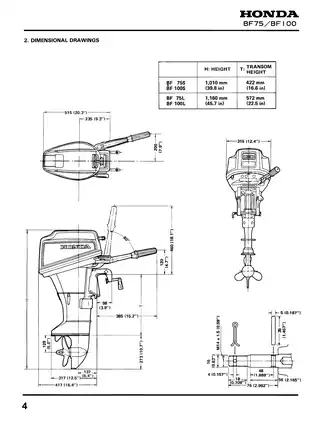

  • Workshop references: Dimensional drawings, disassembly and lubrication charts, maintenance schedules, troubleshooting charts, torque specifications, wear limits, and special-tool listings.

Suited to mechanics comfortable with engine disassembly and precision measurement; CDI diagnosis also requires the specified electrical test equipment.

Engine Inspection and Repair

Standard and service-limit tables cover the valve train, pistons, cylinders, crankshaft bearing clearances, and oil pump. Cam-height specifications distinguish the two models and their CDI or contact-breaker configurations. These comparisons help technicians assess measured wear before replacing original parts.

Exploded assemblies show component placement, lubrication points, and reassembly details. Cylinder-head work includes valve-guide replacement and valve-seat refacing; maintenance instructions cover valve-clearance adjustment and spark-plug cleaning.

The compression-test section warns that cranking with the spark plugs removed can damage the ignition coil unless the specified electrical precautions are observed.

Fuel Delivery and Cooling

Separate fuel-pump assemblies apply through BF75 1102880/BF100 1101260 and from BF75 1102881/BF100 1101261 onward. Carburetor coverage includes float-level inspection, main-jet and nozzle service, and linkage adjustment.

The Cooling System illustration traces circulation through the impeller pump, bypass tubing, thermostat, and engine jackets. Thermostat specifications distinguish production changes, including the low-temperature version identified for Canadian Long-shaft models.

Ignition, Charging, and Starting Faults

CDI layouts distinguish engines at 1200001–1299999 from 1300001 onward; the neutral-start interlock applies from 1300001. Later CDI resistance tables have separate model breakpoints at BF75 1300701 and BF100 1300703.

Honda specifies SANWA tester 07308-0020000 or the listed KOWA alternatives for CDI testing. An unsuitable tester or range can give false readings. Checks cover primary, exciter, charging, ignition, and pulser coils, along with the oil-pressure warning circuit and stop switch.

The Hard Starting flowchart connects fuel-delivery, spark, and compression checks with probable causes. Contact Breaker Type and C.D.I. Type schematics provide component-code and wire-color keys.

Lower-Unit Repair and Remote Controls

Lower-unit work extends to the propeller shaft’s clutch shifter and spring, bearings, water seals, and bevel gears. Shim and Washer Selection matches gear-case markings to the required components; Power Flow diagrams explain forward, neutral, and reverse operation.

Remote-control bracket instructions cover cable selection and hook-up at the outboard. The adjustment warning explains how throttle movement before full gear engagement can strip the gears.

Production Changes and BF8A Differences

The BF75/BF100 supplement documents revised tube routing, fuel-strainer replacement, thermostat checks, exhaust-pipe cooling, and anode placement for serial 1700001 onward.

BF8A comparisons identify changes to the camshaft, valve clearances, carburetor, impeller-pump cover, and reverse-lock system. Dedicated assembly drawings show the revised reverse-lock and swivel-case components.

Shop Manual News separates frame serial numbers 1000001–1099999 from 1100001 onward. It documents fuel-connection, shift-rod, DC connector, emergency-stop-switch, and wiring changes, including a fuel-tank-cap exception for SC/LC types.

Handle fuel-system components with care, ensure proper workshop ventilation, and consult a qualified marine technician for work beyond your experience.

Selected Piston and Oil-Pump Inspection Clearances

For BF75/BF100 piston inspection, the standard piston-to-cylinder clearance is 0.010–0.055 mm, with a maximum service limit of 0.12 mm. These figures accompany the internal-engine inspection tables.

Oil-pump inspection distinguishes a standard inner-rotor-to-outer-rotor clearance of 0.15 mm from the maximum service limit of 0.20 mm. The accompanying illustrations show the relevant measurement locations.
