2003 onwards Honda GX140 Horizontal Shaft Engine Service Manual

This service manual covers maintenance, troubleshooting, and internal repair of the 2003–Present Honda GX140 horizontal shaft engine. Its coverage header identifies GX140-1000001-FORWARD, with separate sections for reduction drives and optional electrical equipment.

• Internal engine repair: Cylinder-head and valve service, crankshaft and piston inspection, camshaft timing, crankshaft bearing replacement, and governor disassembly.

• Fuel and air systems: Carburetor removal, disassembly, float inspection, and idle adjustment, plus fuel-tank, sediment-cup, and air-cleaner service.

• Starting and electrical diagnosis: Recoil-starter assembly, starter-motor overhaul, Oil Alert fault isolation, charging-component tests, and configuration-specific wiring diagrams.

• Reduction drives: L-type chain-drive service, centrifugal-clutch inspection, reduction-unit disassembly and reassembly, bearing installation, and oil-seal replacement.

• Maintenance and service data: Routine service schedules, valve-clearance and governor adjustment, component torque tables, inspection limits, and special-tool references.

• Optional equipment: Remote throttle and choke kit installation, lamp-coil configurations, and spark-arrester cleaning and inspection.

Suited to mechanics and experienced owners familiar with precision measurement and electrical testing, with additional shop equipment needed for valve-guide and pressed-on gear work.

Cylinder Head and Bottom-End Repair

Cylinder head and valves: Inspection covers head warpage, valve-spring free length, stem wear, guide clearance, and valve-seat contact. Repair material includes valve-guide replacement and reaming, multi-angle seat reconditioning, and valve lapping.

The cylinder-head section warns that omitting the exhaust-valve rotator can let the valve drop into the cylinder at startup, risking internal engine damage. Guide-replacement cautions explain that torch heating can warp the head and excessive heat can loosen valve seats.

Crankshaft and piston assemblies: Exploded views show piston-ring orientation, connecting-rod installation, and camshaft timing-mark alignment. Inspection sections distinguish standard-size and undersize crankpin and connecting-rod dimensions and cover big-end oil-clearance checks with Plastigauge.

Bearing and oil-seal procedures identify the required drivers and seating references. The Overhead Valve (OHV) Mechanism and Mechanical Decompressor Mechanism illustrations explain valve-train operation and starting compression relief.

Carburetor, Air Cleaners, and Controls

The GX140K1 engine and carburetor maintenance standards distinguish internally and externally vented carburetors, including their different jetting and pilot-screw settings. Carburetor Mechanism drawings trace the main circuit, slow circuit, and float chamber.

Carburetor service includes passage cleaning, float-valve inspection, and float-height measurement. The special-tool list identifies float-level gauge 07401-0010000.

Air-cleaner coverage separates single-element, dual-element, oil-bath, and cyclone versions. Fuel-tank and sediment-cup illustrations show the strainers, seals, and associated service points.

Governor pages detail linkage adjustment and internal weight/slider assembly. Remote throttle and choke kit illustrations show cable attachment arrangements, including the different throttle-cable types.

Ignition, Oil Alert, and Electric Starting

Hard Starting and Oil Alert troubleshooting charts distinguish fuel, spark, compression, and low-oil shutdown faults. Separating oil-level-switch faults from engine-switch and ignition-circuit problems helps narrow a no-start complaint before replacing ignition components.

Electrical inspection extends to the combination switch, circuit breaker, rectifier, transistorized magneto ignition coil, and spark-plug cap. Starter-motor pages cover brushes, armature continuity, pinion movement, the overrunning clutch, and solenoid testing.

Wiring diagrams distinguish engines with and without Oil Alert and electric starting. Charging-system material covers charge coils and the regulator/rectifier, while lamp-coil kit pages show single-coil and paired-coil arrangements.

Keep the manual’s fuel-vapor, rotating-part, and carbon-monoxide precautions in view when planning service or running tests.

Reduction Units and Shaft Configurations

Separate assemblies cover the L-type chain drive, 1/2 reduction with centrifugal clutch, and 1/6 reduction. Clutch inspection includes friction-disc thickness and plate warpage; reduction-unit illustrations identify bearing and seal installation details.

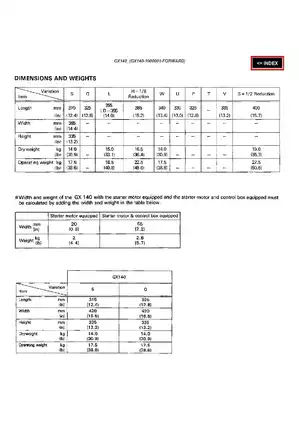

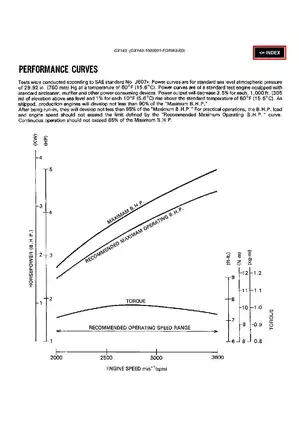

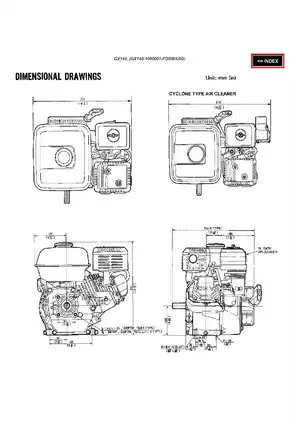

P.T.O. Dimensional Drawings distinguish straight, stepped, tapered, and reduction-output shafts. Overall dimensional drawings and engine performance curves provide additional installation and operating-reference information.

A Preview of Valve and Carburetor Adjustment Data

Cold-engine valve-clearance specifications are 0.15 ± 0.02 mm for the intake and 0.20 ± 0.02 mm for the exhaust. These accompany the rocker-arm inspection and adjustment material.

For GX140K1 carburetor inspection, the maintenance standards specify a 13.7 mm float height. The measurement reference places the float against the valve seat without compressing its spring.

Text Search, Bookmarks, and PDF Contents

Search and diagram detail: Embedded OCR supports text searches throughout the manual, although recognition errors can affect exact matches. PDF bookmarks link to specifications, troubleshooting, repair sections, and mechanism explanations. Small wiring-color codes and switch-terminal labels benefit from zooming.

Supplied as one printable, English-language, 96-page PDF covering the technical sections and concluding mechanism explanations.
