Yamaha YZFR1W Factory Service Manual, 2007 (P/N 4C8281972000)

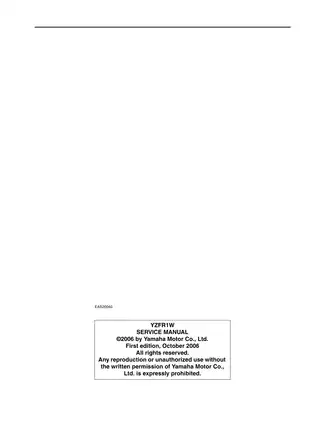

This Yamaha factory service manual covers the 2007 YZFR1W (4C86), P/N 4C8281972000, first edition October 2006. The back cover carries the Yamaha Motor Canada imprint, and the closing wiring diagrams have English/French headings.

Searchable Service Text and Wiring Diagram Detail

Text search and diagram readability: Service text is searchable, with embedded bookmarks for chapters and major assemblies. Some diagram lettering is not searchable. Small wiring labels require zooming; portions of the heavily shaded alternate closing schematic remain difficult to distinguish.

One printable English PDF contains 429 pages, including five opening cover and introductory pages, the wiring-diagram legend, two closing schematic versions, and the rear cover.

Engine, Chassis and YCC-T/YCC-I Workshop Procedures

The following is a selection of covered work, rather than a complete contents list. Other topics include instrument settings and steering-damper inspection.

• Engine and transmission repair: Engine removal and installation, camshaft and timing-chain service, cylinder-head and valve work, crankcase separation, clutch repair, shift-mechanism work, and transmission disassembly.

• Chassis workshop procedures: Wheel removal and static balancing, brake caliper and master-cylinder repair, hydraulic bleeding, fork rebuilding, steering-head service, rear suspension linkage, swingarm work, and chain-drive inspection.

• Fuel and electronic controls: Throttle-body synchronization, injector and fuel-pressure checks, adjustment of both throttle-position sensors, YCC-T diagnosis, YCC-I intake-funnel testing, EXUP checks, and air-induction-system diagnosis.

• Cooling system repair: Radiator and oil-cooler removal, thermostat testing, and water-pump disassembly, inspection, and mechanical-seal replacement.

• Electrical diagnosis: ECU self-diagnosis, fault-code isolation, fail-safe tables, instrument-panel diagnostic mode, sensor and actuator tests, immobilizer key-code registration, and system circuit diagrams.

• Factory reference data: Engine and chassis torque tables, capacities, wear limits, clearance and adjustment data, electrical test specifications, cable routing, lubrication and cooling diagrams, and exploded views with job charts.

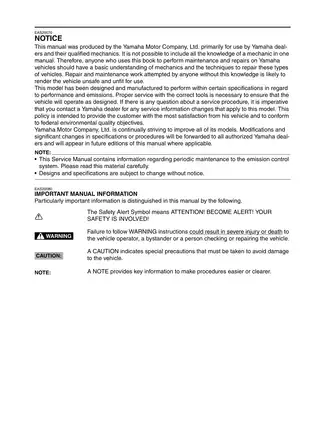

Yamaha produced this manual primarily for dealers and qualified mechanics. An experienced owner needs existing mechanical knowledge and repair skills, together with the specified tools, measuring equipment, and workshop facilities.

Scheduled Service and Internal Engine Repair

The scheduled-service material goes beyond an interval chart. It covers emission-control maintenance, cold-engine valve-clearance inspection and shim adjustment, compression and oil-pressure testing, oil and coolant replacement, suspension adjustment, battery service, and headlight aiming.

Internal inspection: Step-by-step procedures extend to cylinder-head flatness checks, titanium intake valves, guides, seats, springs, and lifters. Bottom-end coverage includes pistons, rings, pins, connecting rods, crankshaft inspection, journal and big-end bearing selection, oil-pump and relief-valve checks, and crankcase sealing.

Assembly references: Bearing-selection tables connect component markings with replacement bearing sizes. Transmission inspection addresses shaft runout, gear dogs, shift forks, guide bars, and the shift drum.

The camshaft installation notes warn that uneven cap tightening can damage the cylinder head, caps, and camshafts, while crankshaft movement during installation can cause damage or incorrect valve timing.

Fork Rebuilding, Brakes and Rear Suspension

Fork procedures include damper-rod tools, air bleeding, oil-level setting, and final adjustment. The seal-installation notes address orientation and lip protection to prevent damage to the replacement oil seal.

Brake coverage extends to pad and disc inspection as well as hydraulic component repair. Separate sections address wheel bearings, sprockets, steering-head bearings, swingarm bearings, and suspension linkage.

The rear-shock section covers assembly removal, inspection, replacement, and linkage service. It warns against opening the nitrogen-charged shock.

Throttle Controls and Fuel-System Checks

Separate adjustment procedures distinguish the throttle-valve position sensor from the throttle-cable-pulley position sensor. Throttle-body synchronization includes basic and alternate methods.

Air-induction checks address hoses, pipes, reed valves, and the air cut-off valve. Cooling-system procedures include radiator-cap pressure testing, thermostat operation checks, and water-pump seal installation.

Fault Isolation, Diagnostic Mode and Immobilizer Service

The fuel-injection fault tables connect displayed codes with probable causes, harness checks, sensor readings, and repair targets. This supports tracing a fault through the circuit and component checks before replacement parts are selected.

Diagnostic mode: Input checks cover throttle position, pressure, temperature, speed, lean angle, sidestand position, and neutral status. Actuator tests cover ignition coils, injectors, intake funnels, relays, radiator fans, and the EXUP servo.

Immobilizer: The manual explains key types, component-replacement requirements, code registration, self-diagnosis, and fault indications. Registering replacement standard keys requires the code re-registering key; losing that key can require immobilizer-system replacement when registration becomes necessary.

Electrical troubleshooting also covers ignition, starting, charging, lighting, signaling, and cooling-fan circuits, with component-specific test specifications.

Diagrams, Job Charts and Special Tools

Diagram coverage includes the YCC-T/YCC-I system outline, engine-oil lubrication chart, cooling-system diagrams, fuel-injection circuit diagram, starting circuit cut-off schematic, and YZFR1W wiring diagram with component and color-code legend.

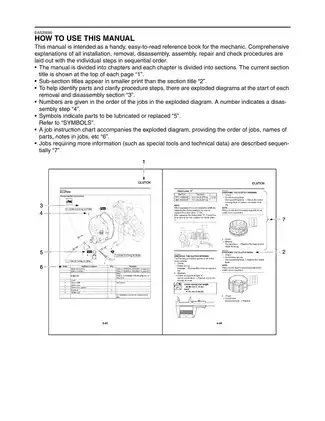

Numbered exploded views connect parts to job order, quantity, notes, lubrication points, replacement items, and tightening references.

The special-tool list cross-references Yamaha’s regional numbers. Examples include the vacuum gauge/carburetor synchronizer 90890-03094 / YU-44456, pressure gauge 90890-03153 / YU-03153, pocket tester 90890-03112 / YU-03112-C, and fork spring compressor 90890-01441 / YM-01441.

Brake work, pressurized fuel and cooling-system tests, compressed fork springs, and engine removal require correct support, pressure-handling practices, and the specified tools.

Selected Valve and Camshaft Inspection Specifications

For cold-engine valve-clearance inspection at room temperature, the manual specifies 0.11–0.20 mm for intake valves and 0.26–0.30 mm for exhaust valves.

The camshaft inspection section specifies 0.028–0.062 mm journal-to-cap clearance and describes Plastigauge measurement. These inspection data accompany the wear checks and component-replacement criteria.
