Honda BF75A/BF90A 1996 Outboard Service Manual Set (P/N 66ZW000)
354 Pages • Printable PDF • 16.52 MB • Download
Honda Models Covered & Key Technical Specifications

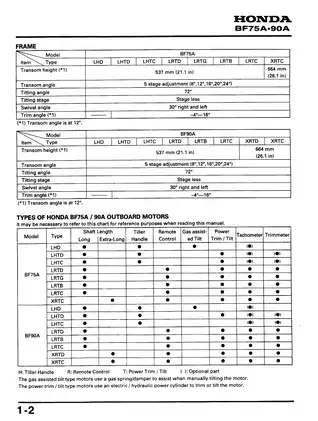

Models: BF75A, BF90A, BF75AV, BF90AV
Models & Model Codes:
BF75A — BBAL: LHD, LHTD, LHTC, LRTD, LRTG, LRTB, LRTC; BBAU: XRTC.
BF90A — BBBL: LHD, LHTD, LHTC, LRTD, LRTB, LRTC; BBBU: XRTD, XRTC.
BF75AV — BBAL: LHD, LHTD, LRTD, LRTG, LRTB; BBAU: XRTD.
BF90AV — BBBL: LHD, LHTD, LRTD, LRTB; BBBU: XRTD.
Sub-models / Variants: BF75/90A1 (Service News component-change notices only).
Model Year: 1996
Frame serial breaks — propeller-shaft changes: BF75A: BBAL-2001070 and subsequent; BBAL-4001824 and subsequent. BF90A: BBBL-2002417 and subsequent; BBBL-4004256 and subsequent.
Engine serial breaks — carburetor and crankshaft revisions: BF75A: BBAE-2100001 and subsequent. BF90A: BBBE-2100001 and subsequent.
Frame serial breaks — later gear-case supplement: BF75A: BBAL-4410912 and subsequent; BBAU-4110009 and subsequent. BF90A: BBBL-4412658 and subsequent; BBBU-4110084 and subsequent.
-

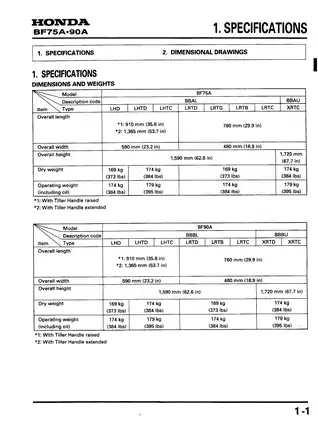

Engine type: 4-stroke, O.H.C., 4-cylinder
-
Displacement: 1,590 cm³ (97.0 cu in)
-
Rated power (BF75A): 75 HP (55.2 kW) at 5,000–6,000 min⁻¹
-
Rated power (BF90A): 90 HP (66.8 kW) at 5,000–6,000 min⁻¹
-
Bore x stroke: 75 x 90 mm (3.0 x 3.5 in)
-
Compression ratio: 8.8:1
-
Cooling system: Forced water circulation by impeller pump with thermostat
-
Ignition system: CDI
-
Lubrication system: Pressure lubrication by trochoid pump
-
Fuel system: Horizontal type, butterfly valve (4 carburetor)
-
Clutch type: Dog clutch (Forward-Neutral-Reverse)
Honda Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

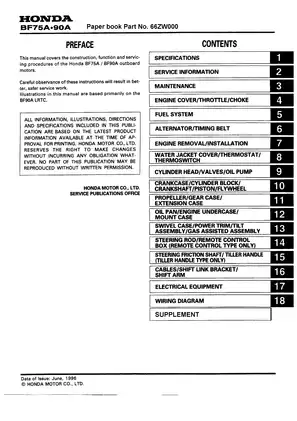

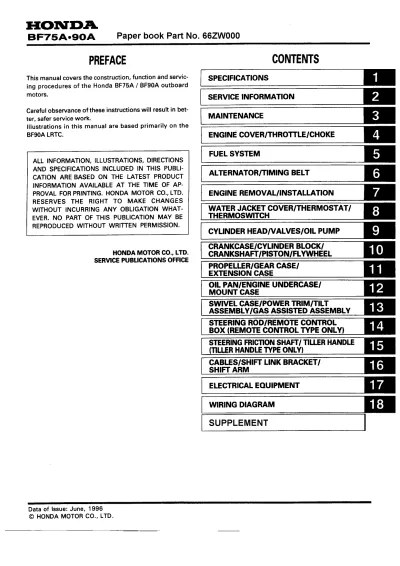

| BF75A/BF90A Shop Manual, June 1996 — P/N 66ZW000 | 283 |
| BF75AV/BF90AV Supplement, March 1997 — P/N 66ZW000Z | 44 |
| BF75A/BF90A serial-specific gear-case Supplement, March 2002 — P/N 66ZW000Y | 13 |
| Shop Manual News P/P-067 — propeller-shaft changes | 2 |
| Shop Manual News P/P-068 — water-pump seal installation revision | 1 |
| Shop Manual News P/P-074 — carburetor and crankshaft revisions | 1 |
| Shop Manual News P/P-076 — pilot-screw setting revisions | 1 |
| Shop Manual News P/P-087 — water-seal installation revisions | 1 |
| Shop Manual News P/P-165 — cover-lock lever lubrication | 2 |
| Service News — BF75/90A1 diaphragm changes | 1 |
| Service News — BF75/90A1 carburetor assembly changes | 1 |
| Service News — BF75/90A1 crankshaft changes | 1 |
| Service News — BF75/90AV power trim/tilt assembly changes | 1 |
| Service News — BF75/90A1 timing-belt adjusting spring changes | 1 |
The supplements work with the base shop manual: unchanged systems refer back to the earlier publications. The news sheets document component revisions and compatibility; the A1 notices provide those specific updates rather than a separate full service manual.

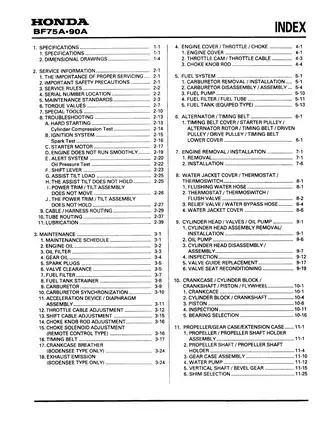

Bookmarks, Text Search and Wiring Pages
Navigation and diagram detail: The technical manual pages are not text-searchable. Embedded PDF bookmarks provide access to the main chapters, supplements and news sections. Small wire-color codes and connector labels on the checked wiring diagrams are readable when enlarged.
One printable PDF contains 354 pages total: 340 pages across the shop manual and supplements, 13 news pages, and one added printing/navigation page. Prefaces, indexes and the added page are already included in this total.
Engine, Lower-Unit and Trim/Tilt Service
The following are selected contents rather than a complete contents list. Further topics include engine-cover alignment and service of the optional fuel tank and primer bulb.
-
Engine repair: Step-by-step engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat reconditioning, piston service and bearing inspection.
-
Fuel and throttle systems: Carburetor removal, disassembly, float inspection and synchronization, plus fuel-pump service, acceleration-device adjustment and choke linkage checks.
-
Cooling system: Water-jacket cover service, thermostat and thermoswitch testing, flushing-water connections, relief-valve inspection and water-bypass hose installation.
-
Lower-unit service: Propeller-shaft and clutch-shifter repair, water-pump service, bevel-gear teardown, shim selection, bearing preload, backlash adjustment and gear-case pressure testing.
-
Power trim and tilt: Hydraulic assembly and motor service, air bleeding, blow-pressure checks and troubleshooting for movement or holding faults.
-
Electrical diagnosis: Ignition-coil, pulser-coil, alternator-stator, regulator/rectifier, starter, trim-angle sensor, power-tilt relay, neutral-switch and CDI tests.
-
Steering and controls: Steering rod, swivel case, steering-friction shaft and tiller-handle service, with side-mount, panel-mount, single top-mount and dual top-mount remote-control sections.
Suited to mechanics and experienced owners with the skills and equipment for precision engine measurement, electrical testing and hydraulic-press work.
Engine Inspection, Fuel Setup and Cooling
Hard-starting and rough-running charts connect symptoms with compression, ignition, fuel and valve-timing checks, helping identify which system needs investigation before teardown.
Internal engine coverage includes oil-pump inspection, crankshaft and connecting-rod oil-clearance checks, and bearing selection using journal and housing identification marks. Crankcase fastening data distinguish the smaller flange bolts from the larger bolt-washers, including their torque and angle-tightening methods.
The base Service Information section contains 65 numbered special-tool entries. Examples include float level gauge 07401-0010000 and lifting eye 07SPZ-ZW0010Z. Engine-removal instructions specify a crane rated for at least 227 kg (500 lb) and warn against using an opening around the starter pulley as a lifting point.
Lubrication data distinguish 4.0 L without oil-filter replacement from 4.5 L with replacement. Thermostat inspection specifies opening at 72°C, full opening at 82°C and lift greater than 3.0 mm.
Bodensee-specific sections cover the crankcase breather and exhaust-emission checks. Their reference values are CO 4.1 ± 1.6%, HC 280 ppm maximum and CO₂ 11.3% minimum, under the prescribed warm-up and adjustment conditions.
The timing-belt sections warn that oil contamination, bending or forced removal can damage the belt.
Lower-Unit Revisions and Hydraulic Tilt
The base lower unit uses a 0.43 (13/30) gear ratio and 0.66 L gear-oil capacity; the AV supplement specifies 0.43 (12/28) and 1.0 L. Its bearing-preload and backlash procedures identify tool 07SPJ-ZW0010Z.
Serial-specific revisions distinguish changed propeller-shaft dimensions, carburetor settings and crankshaft components. The later gear-case supplement eliminates the reverse bevel-gear shim and revises the pinion-bearing and pinion-nut details. These distinctions help match inspection data and replacement components to the assembly being serviced.
The AV supplement specifies hydraulic-press removal of the reverse bevel gear/6208 bearing assembly because hammer removal can damage the components. Its water-pump instructions also flag impeller-housing rotation and correct gasket seating.
Hydraulic trim/tilt data specify 0.68 L of Automatic Transmission Fluid, DEXRON or equivalent. Blow-pressure checks distinguish the lower chamber at 8,826–11,768 kPa with the rods fully extended from the upper chamber at 3,923–7,355 kPa with the rods fully compressed.
Gas-assisted tilt limitation: The pressurized gas damper must not be disassembled. Hydraulic trim/tilt service also distinguishes replaceable seals from pump and piston components serviced as assemblies.
Always verify proper lifting points and follow standard shop safety protocols before securing these heavy outboard units to a test stand.
Electrical References and Control Installations
Visual references include Cable / Harness Routing, Tube Routing, the CDI Unit 18-terminal resistance chart, Tiller Handle Type (Power Trim/Tilt) wiring, Remote Control Type (Side-Mount Remote Control) wiring, and the trim/tilt hydraulic pressure-check layout.
Electrical inspection sections specify meter requirements for the resistance tests. Control chapters add cable installation, shift-link alignment, neutral-switch checks and final lever-operation checks for the applicable tiller and remote-control arrangements.
Selected Carburetor, Valve and Compression Data
Float inspection specifies an 11.5 mm height with the carburetor upright and the float just contacting its valve. Warm-engine synchronization allows a maximum vacuum difference of 20 mm (0.75 in) Hg between cylinders; specified idle speed is 950 ± 50 rpm in neutral.
Cold valve clearances are 0.18–0.22 mm intake and 0.26–0.30 mm exhaust. The compression-test reference is 1,471 ± 98 kPa at 300 rpm, with the throttle held fully open.
The gear-case leak-test section specifies 69–82 kPa (10–12 psi), providing a separate sealing check alongside the dimensional and backlash inspections.
