Black Forest Cuckoo Clock History & Repair Guide 1730–1990
244 Pages • 1 Printable PDF (English) • Download
Cuckoo Clock Models Covered & Key Technical Specifications
Models: Black Forest Cuckoo Clock Models, Trumpeter Clocks
Models & Model Codes:
Black Forest Cuckoo Clock Models — Junghans-Haller: Java (No. 535), Gothisch (No. 539), Fasan (No. 540), Manfred (No. 542), Menelik (No. 522), Hiogo (No. 524), Kassala (No. 520), Buenos-Aires (No. 541, 541 A), Shanghai (No. 600, 600 A), Jamaica (No. 579, 579 A), Paramaribo (No. 580, 580 A), Tientsin (No. 609, 609 A), Hongkong (No. 616, 616 A), Panama (No. 561, 561 A). D.N.H.&S. Brothers catalog: 8-day going-barrel cuckoo (340), 8-day fusée cuckoo (213), 30-hour weight-driven cuckoos (228c, 225c, 229c, 700, 700a, 716, 714), 1-day weight-driven cuckoos (1836, 1378), 8-day weight-driven cuckoo (210), 30-hour bracket cuckoos (193c, 197c).
Trumpeter Clocks — E. Wehrle & Co.: weight-driven movements (Nos. 1, 2, 3, 4, 5, 6, 7), spring-driven brass-plate movements (Nos. 12, 13, 14, 15, 16, 17).
Sub-models / Variants: 12-hour movement, 24-hour movement, 8-day movement, weight-driven, spring-wound, wooden plate movement, brass plate movement, mantel cuckoo clock with fusée movement, Schotten clock, Biedermeier clock.
Historical Catalog Identifiers: Philipp Haas & Söhne: Schotten cuckoo clocks (4061, 4013, 4011, 4021, 4057III, 4057IIIa, 4057IIa, 4033, 4071, 4072, 4029, 4052, 4010, 4027, 4100, 4113, 4058, 4049), mantel cuckoo clocks (24981, 34981, 24983, 34983, 24926, 34926, 24644, 34644, 34967), quarter-hour cuckoo-quail clocks (4656/4, 4811/4, 4832/4, 4835/4, 4849/4, 4809/4, 4806/4). Catalog listings are for identification.
Model Years: 1730–1990
-
Primary Materials: Black Forest spruce, European beech, linden wood, forged steel, cast brass
-
Strike System Types: Count wheel system, rack system, bell strike system
-
Gong Adjustment: Approximately 1/64-inch clearance between hammer tip and spiral gong wire
-
Gear Counts (Black Forest Bell Strike System): 90-leaf count wheel, 63-leaf pin wheel, 56-leaf lock wheel, 56-leaf warning wheel
Cuckoo Clock Manual Features & Selected Content Preview

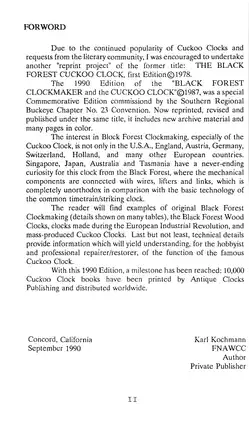

Karl Kochmann’s Black Forest Clockmaker and the Cuckoo Clock is an illustrated history and repair reference from Antique Clocks Publishing. This 1990 edition covers antique and production-line cuckoo clocks, including cuckoo-quail and musical variants, and documents related Black Forest trumpeter clocks.

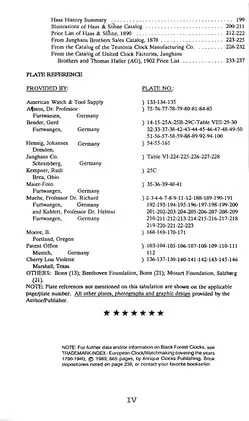

Printable PDF and Contents Pages

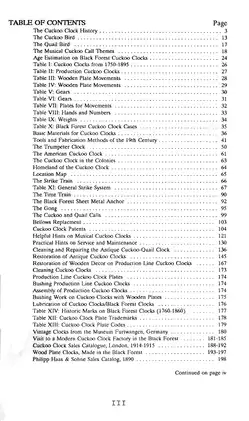

Text search and navigation: The PDF has a printed table of contents. Text search and embedded bookmarks are unavailable. Zoom in on the densely labeled cuckoo-quail movement drawings and historical catalog plates.
The download is one printable, 244-page English-language PDF. The total includes four front-matter pages, three supplementary end pages, and two blank pages.
Clock Identification, Strike Mechanisms, and Restoration

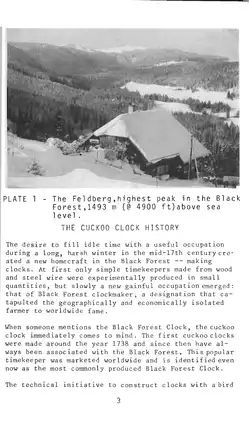

These selected topics are part of a book that also reproduces cuckoo clock patent drawings and traces the history of the American cuckoo clock.
- Clock history and dating: Compare early wooden-plate clocks with later production examples using tables of gears, plates, hands, weights, and case styles.
- Strike and time trains: Follow locking, warning, and release in mechanical diagrams. See how the sheet-metal anchor, crutch, pendulum, and spiral gong work.
- Cuckoo and quail calls: Trace the bird-door linkage and bellows action, with guidance on keeping original tuned pipes during antique bellows repairs.
- Musical clocks: Find adjustment guidance for side-mounted and under-roof music works, including release timing and interference at the fan.
- Movement service: Find procedures for cleaning, lubrication, pivot work, rebushing, and reassembly, with separate guidance for wooden and production-line plates.
- Wooden cases and trim: Repair veneer and carved ornament, make patterns for missing pieces, and match the finish to surviving woodwork.
The book is written for hobbyists and professional clock repairers and restorers.
Tracing Strike and Call Faults
The antique cuckoo-quail chapter pairs front and rear movement drawings with a keyed parts list. The drawings help you distinguish the time train from the hour and quarter-hour strike trains before tracing a fault to a count hook, locking arm, or bellows lever.
The service chapter shows how a bent lifter wire can jam the bellows linkage and how to check strike release on a test stand. Rough pivots can wear into the plate holes and bind, even after cleaning. Secure a weight-driven clock on a test stand before checking the strike with the weights fitted.
Dating Clocks and Identifying Movements
Kochmann traces the shift from home workshops to factory production and shows how railroad-attendant cottages influenced case design. The Beha examples illustrate fusée movements and a recoil escapement. The Wehrle trumpeter chapter uses diagrams to explain how the door and horn operate.
Movement-plate stamps and historical catalog illustrations help narrow down a clock’s age or configuration. A name stamped on a plate may identify a distributor or movement maker. Use the case and movement details together when identifying the clock. The catalog entries serve as identification references, and the repair chapters address specific mechanisms and jobs.
Pipe Tuning and Anchor Tool Examples
The book describes a cuckoo call produced by pipes tuned to A and F below middle C. For comparison, it gives a length of 28–35 cm for open organ pipes in that register and describes closed pipes as half that length.
The sheet-metal anchor section illustrates a bending tool made from 3/16-inch drill rod. The drawing identifies the tool’s contact points for adjusting the anchor.
