Mercury Mariner 115hp, 125hp Outboard Service Manual 1997–1999 (P/N 90-830234R3)

Mercury Marine factory service publication P/N 90-830234R3, December 1997, covers Mercury/Mariner 115hp and 125hp outboards within the wider 65/80 Jet, 75, 75 Marathon, 75 Sea Pro, 90 and 100 family. Cover applicability starts at U.S. S/N 0D283222 and Belgium S/N 09793577. The fuel-system procedures cover WME carburetors and oil injection, not EFI.

Searchable Section PDFs and Page Breakdown

Text search, bookmarks and wiring detail: All 24 PDFs contain searchable text and embedded bookmarks. The top-level bookmark in 8.pdf has an invalid destination; its procedure bookmarks have valid page targets. Small labels in dense engine and remote-control wiring diagrams require zooming.

The ZIP contains 24 printable PDFs totaling 585 pages, including the four-page cover/introduction file and eight Notes pages. Section totals are Important Information: 43; Electrical: 109; Fuel System: 65; Powerhead: 81; Mid-Section: 159; Lower Unit: 62; Attachments/Control Linkage: 54; and Manual Starter: 8.

Powerhead, Fuel, Electrical and Lower-Unit Service

These are selected service topics, rather than a complete contents list. Other sections address storage preparation and recovery after freshwater submersion.

• Powerhead repair: Step-by-step removal, disassembly, inspection, reassembly and installation procedures, including crankshaft, piston, connecting-rod, cylinder-block and reed-block service.

• Fuel and oil injection: Fuel-pump testing and repair, WME carburetor inspection and adjustment, enrichener diagnosis, acceleration-pump operation, oil-pump testing and synchronization.

• Ignition and charging: ADI/CDM fault isolation, DVA and resistance tests, charging-system diagnosis, starting-circuit troubleshooting and starter-motor service.

• Lower-unit overhaul: Gearcase teardown, water-pump service, bearing-carrier and propeller-shaft work, pinion-depth/backlash setup, pressure testing and reinstallation.

• Power trim: Separate black- and yellow-fill-plug sections with hydraulic troubleshooting, electrical tests, disassembly, seal replacement, reassembly and bleeding or purging.

• Installation and rigging: Transom mounting, steering-link hardware, remote-control wiring, throttle/shift cables, battery connections, oil-injection setup and trim-tab adjustment.

Written for Mercury Marine dealers’ mechanics and company service personnel, this manual assumes prior service training and familiarity with common shop tools and the specified special tools.

Powerhead Inspection and Assembly Details

Factory inspection coverage includes cylinder-bore wear and honing limits, piston rings, crankshaft bearings, check valves, reed blocks, the thermostat and temperature switch. Connecting-rod service includes cap-to-rod matching and orientation checks.

Reassembly documentation covers crankcase and exhaust components, carburetor installation, ignition-plate installation, trigger and stator installation, and oil-injection pump drive components. Separate bleed-hose layouts distinguish earlier and later configurations, alongside fuel-enrichment, accelerator-pump and harness-routing views.

Incorrect oil-pump drive-gear engagement or improperly seated O-rings can cause oil-injection failure and powerhead damage.

WME Carburetors and Oil-Injection Diagnosis

The carburetor charts identify WME-51 for 1996/1997 80 Jet/115, WME-52 for 1996/1997 125, WME-80 for 1998 80 Jet/115 and WME-81 for 1998 125. The late-1996 running change at S/N 0G428125 identifies revised carburetor configurations.

Fuel-system documentation includes jet-orifice and high-altitude charts, float and idle-mixture adjustments, cold-start and rough-running troubleshooting, enrichener hose layouts and the four-cylinder acceleration-pump fuel-flow circuit.

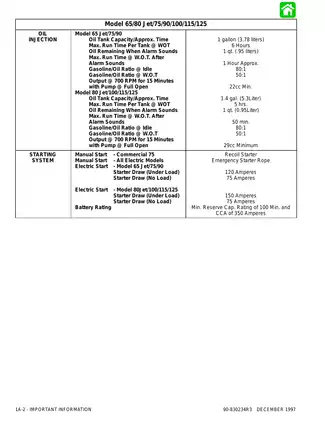

Oil-injection coverage adds inlet/outlet hose bleeding, pump-output testing, carburetor/oil-pump synchronization, low-oil sensor tests and warning-horn diagnosis.

Serial-Specific Ignition Tests and Wiring

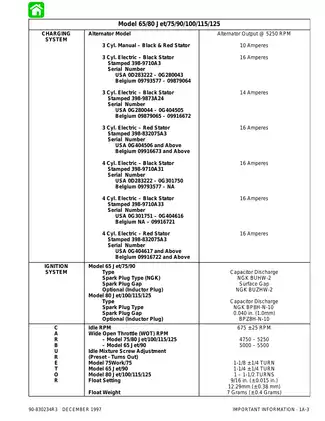

The electrical chapters distinguish black stators 398-9710A31 and 398-9710A33 from red stator 398-832075A3. Matching the installed system to its serial-specific test chart helps prevent applying one stator’s test specifications to another configuration.

CDM P/N 827509 diagnosis includes three troubleshooting flowcharts, stop-diode checks and connector identification. Timing coverage separates cranking-speed adjustment from running checks for the applicable four-cylinder models.

Named diagrams include the 1997 80 Jet/100/115/125 Wiring Diagram (w/CDM) and 1998 80 Jet/100/115/125 Wiring Diagram. Charging documentation includes the 4 Cylinder BLACK Stator Battery Charging Wiring Diagram and 4 Cylinder Battery Charging Diagram (with RED Stator) with Battery Isolator.

The Power Trim System Wiring Diagram for four-cylinder models using COMMANDER 2000 side-mount remote control connects the trim circuitry to the control installation. Specified equipment includes Flywheel Holder 91-52344, Flywheel Puller 91-73687A1, Volt/Ohm/DVA Meter 91-99750, Spark Gap Tester 91-850439 and CDM Test Harness 84-825207A2.

Gearcase Identification, Trim and Mounting Hardware

The lower-unit chapter distinguishes Design I, 3 Jaw Reverse Clutch, from Design II, 6 Jaw Reverse Clutch before component selection. Its overhaul procedures extend through shaft and bearing installation, lubricant filling and final gearcase installation.

Black-fill-plug and yellow-fill-plug power-trim units have separate service sections. The later system includes Power Trim Flow Diagrams — Trim Up Circuit, plus tilt, down, shock-function and manual-release diagrams.

On the earlier trim unit, inserting the pilot-valve spool too far into its sleeve can damage the O-ring against the cross-hole edge and create a leak path.

Mid-section documentation provides exploded views and assembly reference data for swivel/transom brackets, steering arms, mounts, exhaust plates and driveshaft housings. The wider publication also includes configuration-specific jet-drive, tiller-handle, manual-tilt and manual-starter chapters.

In-depth propeller and boat-performance information is referred to separate publication 90-86144.

Marine ignition components can produce severe shock and short-circuit hazards, and the power-trim system is pressurized. Disconnect battery power for electrical service and support the outboard securely before repair work.

Sample Fuel, Gearcase and CDM Test Values

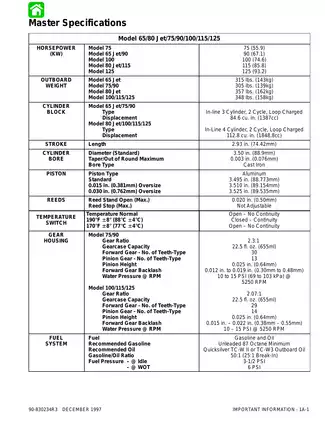

Fuel-system reference data lists fuel pressure at 3½ psi at idle and 6 psi at wide-open throttle. For the 100/115/125 gearcase, specified forward-gear backlash is 0.015–0.022 in. (0.38–0.55 mm).

The CDM resistance-test table lists coil-secondary impedance at 900–1,200 ohms, measured between the ground connection and spark-plug terminal. These values illustrate the component-specific test and setup data included in the service chapters.
