1995–2002 Range Rover P38 Electrical Troubleshooting Manual (P/N LRL0326ENG)

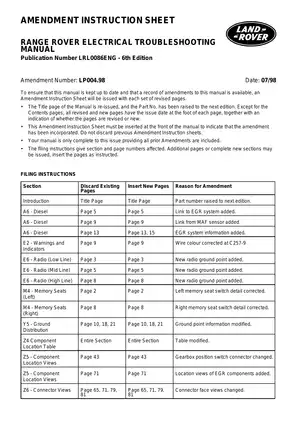

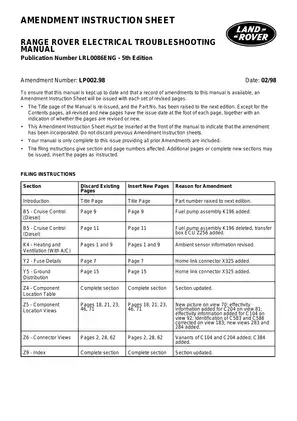

• A two-PDF, 1,940-page set: the 1999 Range Rover Workshop Manual, LRL0326ENG (1,361 pages, Volumes 1 and 2), and the 1998 Electrical Troubleshooting Manual, LRL0086ENG, 6th Edition (579 pages, from MY97, with amendment LP004.98 dated July 1998).
• Powertrain repair coverage: BMW 2.5 diesel and Land Rover 4.0/4.6 V8 procedures include engine and transmission removal, cylinder-pressure testing, cylinder-head and camshaft work, diesel injection-pump timing, fuel-system diagnosis, emission controls, cooling, and exhaust service.
• Transmission, driveline, and chassis procedures: covers the R380 five-speed manual, ZF4HP22/ZF4HP24 automatics, Borg Warner transfer box, axles, propeller shafts, Electronic Air Suspension calibration and leak testing, steering diagnosis and bleeding, and ABS brake service.
• Electrical fault tracing: circuit-operation descriptions and diagrams cover SFI-V8 and diesel management, starting and charging, cruise control, transfer and automatic transmission controls, ABS, BeCM-controlled body systems, security, lighting, HVAC, seats, windows, and mirrors.
• Body and cabin repair: includes panel replacement and welding guidance, body dimensions, corrosion protection and sealing charts, SRS precautions, climate-control diagnosis, A/C recovery and performance testing, wipers, seats, instruments, and factory navigation components.

These are workshop-level references rather than beginner guides. The ETM states that it is intended for trained Land Rover technicians. The workshop manual is likewise written for skilled technicians and tells owners to limit their work to non-safety-critical repairs within their training; steering, brake, suspension, and SRS repairs are assigned to a Range Rover dealer.

Model and Configuration Detail

LRL0326ENG is marked for the New Range Rover from its 1995 introduction and contains separate procedures for up-to-97MY, 97MY-on, 1998MY, up-to/from-99MY, and from-2000MY configurations. V8 engine management is divided between Lucas GEMS 8.2 and Bosch Motronic M5.2.1, while the diesel material distinguishes EGR and non-EGR builds. It also separates pre-Advanced EVAPS, Advanced EVAPS, and LEV emissions equipment; single-point and distributed SRS; and NAS/non-NAS market configurations. The ETM adds VIN-specific changes, including the ignition-key interlock from VIN 370859 and the HEVAC ambient sensor split at VIN 381430/381431.

Repair and Diagnostic Depth

The BMW diesel chapter reaches into camshaft, valve and tappet, oil-pump overhaul, piston and connecting-rod, crankshaft and main-bearing, and timing-chain repairs. The V8 chapter covers engine removal, head gaskets, rocker-shaft overhaul, front-cover and oil-pump work, and from-99MY timing-chain service. ZF automatic-transmission coverage extends to the valve body, pressure regulator, pump, solenoids, intermediate plate, parking pawl, and seals. The R380 section is narrower, covering transmission removal and installation, the output-shaft seal, selector remote housing, and coolers rather than a full internal overhaul.

TestBook is called for in EAS calibration and fault work, emission-system checks, and selected engine, transmission, and ECU procedures. Special-tool references include LRT-12-108 and LRT-12-112 for BMW diesel timing, LRT-54-006 for swivel-hub setting, LRT-64-001 for trailing-arm bush installation, and LRT-70-500 for brake-piston service. Dedicated sections supply torque tables, engine-tuning data, lubricants and fluid capacities, pressure-test information, inspection limits, clearances, and electrical test values.

Circuit and Connector Reference

The electrical troubleshooting manual breaks the vehicle into individual circuits and maps current flow from the power source at the top of each schematic to ground at the bottom. Named examples include the SFI-V8 and diesel circuit diagrams, Electronic Automatic Transmission Control Schematic, ABS Control Schematic, BeCM Control Schematic, and SRS System Schematic. Starting/charging, cruise-control, and radio sections add system-diagnosis flow charts; the starter tests distinguish a no-click condition from a solenoid-click/no-crank fault and a persistent charge-warning indication.

Component location tables, photographed location views, connector face views with cavity identification, power and ground distribution diagrams, fuse details, and harness-routing drawings support pin-level tracing. Harness views cover the body, engine, manual and automatic transmissions, tailgates, doors, under-hood area, and center console.

Important Electrical Scope

LRL0086ENG is a diagnostic manual; it expressly excludes electrical component and harness removal, installation, and overhaul, which are handled in the workshop manual. The 1999 workshop manual identifies later companion publications LRL0329 and YVB101590 (2nd Edition), neither of which is included here. The included LRL0086ENG therefore should not be treated as complete MY99/2000 wiring coverage. Its title page also lists a Z9 Index, but the PDF ends with Z8 Harness Routing and contains no Z9 pages.

In the BMW diesel camshaft procedure, the manual warns that expanded tappets can permit piston-to-valve contact if timing movement is mishandled. The automatic-transmission installation procedure warns that an unretained torque converter or failure to seat the transmission on both locating dowels can cause damage. Pressurized EAS and brake hydraulics, SRS components, fuel systems, and refrigerant work require the isolation, depressurization, and safety practices specified in the manual.
