1997–2000 Land Rover Freelander Workshop Manual (P/N LRL 0144ENG)

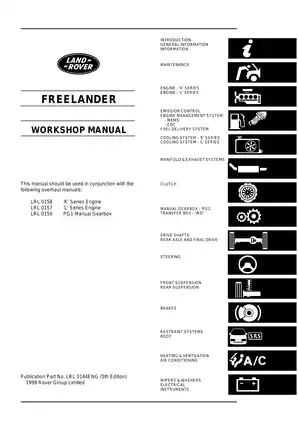

Rover Group's fifth-edition Freelander Workshop Manual is a 989-page PDF, issued as Publication Part No. LRL 0144ENG (5th Edition, 1999). It covers the documented 3-door and 5-door body variants, the 1.8L K16 gasoline engine with MEMS management, the 2.0L TCIE diesel with EDC, and the PG1 5-speed manual driveline. Its factory repair sequencing, special-tool references, and dependence on TestBook for electronic diagnosis make it best suited to trained technicians and experienced mechanics with a properly equipped workshop.

Factory Repair Coverage

• K-Series and L-Series engine work: Covers engine or engine-and-gearbox removal and installation, cylinder-head gasket replacement, camshaft and crankshaft seals, oil pumps, oil pans, flywheels, mounts, oil-pressure checks, and timing-belt service. The K-Series section distinguishes manual and automatic tensioner systems, while the diesel procedures separately address the camshaft and fuel-injection-pump belts.

• MEMS gasoline and EDC diesel controls: Maps component locations and operating logic, supplies ECU harness pin-out tables, and documents sensor and actuator replacement. The gasoline material extends to fuel-system depressurization, rail and injector work, and EVAP components; diesel coverage reaches the injection pump, injectors and high-pressure pipes, glow system, turbocharger, intercooler, and EGR hardware.

• Clutch and self-sensing four-wheel-drive repairs: Details the K-Series and L-Series clutch and release-bearing procedures, separate RHD and LHD hydraulic assemblies, PG1 gearbox removal and installation, IRD unit and seal work, front and rear CV shafts, joints, and boots (gaiters), propeller-shaft universal-joint overhaul, viscous-coupling support bearings, and rear differential seal repairs.

• Steering, suspension, and brake systems: Provides power-steering bleeding and pressure testing, front and rear wheel alignment, rack and pump replacement, hub-bearing and suspension-link work, hydraulic brake bleeding, parking-brake adjustment, and service for discs, drums, pads, shoes, calipers, master and wheel cylinders. The ABS variant adds the modulator, ECU, wheel sensors, electronic traction control, and Hill Descent Control.

• Body-specific and electrical procedures: Separates 3-door and 5-door doors, glass regulators, trim, headliners, seats, and restraint hardware. It also covers soft-back and hard-back components, both sunroof arrangements, the Central Control Unit and alarm functions, remote-handset resynchronization, tail-door glass calibration, wipers, alternators, starters, switches, and harness removal.

• HVAC and occupant protection: Documents heater and ventilation service, refrigerant recovery/recycling, evacuation and recharging, A/C performance checks, engine-specific compressors, condenser, receiver-drier, expansion valve, and evaporator work. SRS material covers handling precautions, manual deployment of airbags and pretensioners, post-impact replacement rules, and repair procedures for airbags, the rotary coupler, pretensioners, and diagnostic control unit.

Variants, Tools, and Factory Reference Data

Configuration differences are carried through the manual rather than treated as one generic vehicle. In addition to engine, body, RHD/LHD, ABS, and A/C distinctions, it identifies early front drive shafts fitted with dynamic dampers and confirms that the later undamped shafts are interchangeable. The two K-Series timing-belt tensioner designs and their matching belts are specifically identified as noninterchangeable, an important distinction before ordering parts.

Named illustrated references include K-Series Timing Belt Components, L-Series Camshaft Timing Belt Components, Drivetrain Layout, Brake System Layout - Non-ABS, Brake System Layout - ABS, and the Three-Door/Five-Door Front Seat Belt Components views. Factory data sections provide engine tuning specifications, assembly-specific torque tables, capacities and approved fluids, oil and power-steering pressure-test data, brake wear limits, wheel-alignment geometry, tire information, and electrical output specifications.

Special-tool callouts are tied directly to the repair operations. Examples include LRT-12-144 cylinder-liner clamps, LRT-12-058 flywheel timing pin, LRT-12-141 fuel-injection-pump gear locking pin, LRT-51-003 differential-flange holding tool, LRT-57-005 power-steering pressure gauge, and LRT-60-010/1 viscous-coupling support-bearing press tooling.

Repair Cautions and Scope Limits

The K-Series cylinder-head procedure warns that crankshaft rotation before liner clamps are fitted can disturb the liner assembly, while careless head removal can damage the heated oxygen sensor. The rear-differential pinion-seal procedure requires a new collapsible spacer and controlled preload; excessive tightening can over-compress the spacer and invalidate the bearing setting. SRS, fuel, brake, and refrigerant work carries dedicated safety precautions and requires the specified diagnostic or service equipment.

This PDF covers gearbox removal and installation and extensive on-vehicle engine repair, but not full internal overhaul of those assemblies. Rover directs users to separate manuals LRL 0158 for the K-Series engine, LRL 0157 for the L-Series engine, and LRL 0159 for the PG1 gearbox. The Electrical Reference Library and Circuit Diagrams are also separate publications; for electronically controlled systems, the introduction identifies TestBook as the primary diagnostic method and this workshop manual as its repair reference.
