Rover Mini 1991–1996 Repair Manual (P/N AKM 7169)
482 Pages • 1 Printable PDF (English) • Download
Rover Models Covered & Key Technical Specifications
Models: Mini, 1.3 Mini
Sub-models / Variants: Saloon, Cabriolet, Manual Gearbox (ECM 19/59 — Blue; HPD 19/61 — Green), Automatic Gearbox (Automotive Products, torque converter), SPi (Single Point Injection; Manual — 12A2DF75; Automatic — 12A2DF76; High Compression — 12A2EF77), Carburetter (Manual — 2A2BG03; Automatic — 2A2BG05)
Model Years: 1991–1996 (1991, 1992, 1993, 1994, 1995, 1996)
Serial Numbers: VIN 049349 and later; non-overhaulable steering racks from VIN 068303 (RHD) or VIN 067688 (LHD)
-
Engine: 1275 cc (12A2EF77: 1274 cc), 4-cylinder, 8-valve, transverse
-
Fuel System: Carburetter or Electronic Single-Point Injection (SPi)
-
System Voltage: 12 Volt, Negative earth
-
Manual Gearbox Ratios: 1st 3.647:1, 2nd 2.185:1, 3rd 1.425:1, 4th 1.000:1
-
Oil Capacity: 4.8 litres (Manual), 5.1 litres (Automatic)
-
Cooling System Capacity: 3.55 litres
-
Flywheel to Crankshaft Bolt Torque: 152 Nm
-
Alternator Output: 45 amps
Rover Manual Features & Selected Content Preview

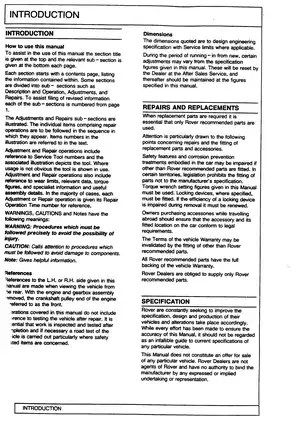

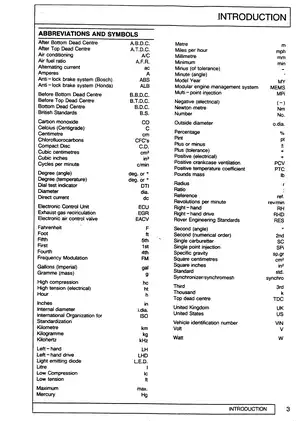

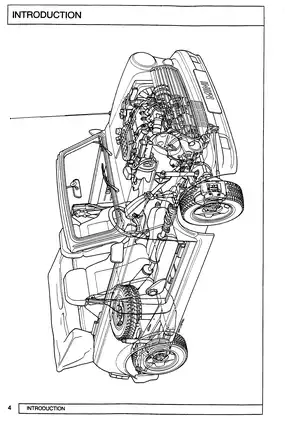

The 1993 Rover Group Mini Repair Manual, Publication Part No. AKM 7169, covers Mini models manufactured from VIN 049349, including Saloon and Cabriolet versions with carburetor or SPi fuel systems and manual or automatic gearboxes.
PDF Bookmarks, Text Search and Diagram Detail
Navigation and wiring labels: Embedded bookmarks cover the main systems and many individual operations. The Engine “Description and Operation” bookmark incorrectly returns to the cover. PDF text search is unavailable. Small labels and connector numbers in dense wiring diagrams require magnification.

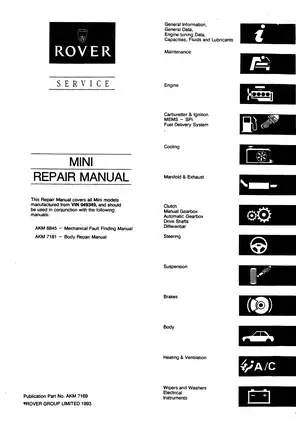

Supplied as one printable English PDF with 482 pages, including the opening cover page, the manufacturer's title page and 22 blank separator pages.
Engine, Gearbox and Chassis Repair
These selected workshop topics outline the contents rather than reproduce the full contents list. Additional subjects include catalytic-converter replacement and windshield washer-pump service.
-
Engine repair: Step-by-step engine-and-gearbox removal, cylinder-head and bottom-end repair, camshaft and oil-pump work, timing-drive service, and flywheel replacement.
-
Fuel and ignition: HIF 38 carburetor overhaul, Lucas 65DM4 ignition repair, and MEMS-SPi fuel-pressure testing, throttle adjustment, ECU, sensor, injector and fuel-delivery service.
-
Clutch and transmissions: Hydraulic bleeding, master/slave cylinder overhaul, clutch-plate and flywheel work, manual gearbox overhaul, and automatic transmission testing and internal repair.
-
Drivetrain and suspension: Drive shafts, CV joints, differential/final-drive overhaul, steering rack and pinion repair, rubber cone spring units, radius-arm bearings and subframe mounts.
-
Brakes: Hydraulic bleeding, caliper and wheel-cylinder overhaul, master-cylinder repair, brake booster work and pressure-reducing valve replacement.
-
Body and equipment: Saloon and Cabriolet doors, glass, trim, seats and seat belts; fabric sunroof and convertible-top hardware; heater cores and motors; wiper motor/drive overhaul and instrument-pack service.
-
Electrical diagnosis: Wiring-harness repair, connector-probing techniques, typical ground and connector faults, component replacement, system wiring diagrams, and harness/ground locations.
The procedures assume workshop-level skills and equipment, making this manual best suited to professional technicians and experienced Mini owners comfortable with illustrated factory repair sequences, wear limits and numbered service tools.
Engine Builds, Inspection and Service Tools
Separate tuning data is provided for 2A2BG03 carburetor/manual, 2A2BG05 carburetor/automatic, 12A2DF75 SPi/manual, 12A2DF76 SPi/automatic and 12A2EF77 high-compression SPi engines. Matching these tables to the engine build helps distinguish the applicable ignition and fuel-system settings before service.
Internal engine work is backed by a red/green/yellow main-bearing selection chart, a Plastigauge clearance check, component inspection limits, adjustment data, torque tables, capacities and approved-fluid specifications. Most major operations carry a Service Repair Number; the introduction also explains the Repair Operation Time references.
The manual identifies tools where they matter, including fuel-pressure gauge 18G 1500, clutch centralizer 18G 684, automatic-transmission test equipment 18G 677Z and steering ball-housing tool 18G 1278.
Automatic Transmission Tests and Overhaul
Mechanical power-flow diagrams and line-pressure/lubrication diagrams accompany shift-speed checks, selector and kick-down adjustments, starter-inhibitor checks, brake-band setting and a structured road-test chart. Internal repair extends to the clutch packs, torque converter, governor, servos, oil pump and valve block.
The assembly cautions explain how forcing the governor housing into place before the forward clutch is fully engaged on its hub splines can damage the clutch plates.
Steering Rack Limits
Steering racks fitted from VIN 068303 on RHD cars or VIN 067688 on LHD cars are non-overhaulable. Earlier rack repair includes shim selection and bearing work; the cautions identify how withdrawing the rack from the wrong end can damage its bushing.
Maintenance and Cooling Service
Maintenance procedures cover engine/gearbox oil and filter changes, valve-clearance adjustment, carburetor tuning, lubrication points and road-test checks. Cooling coverage includes draining and refilling, drive-belt adjustment, radiator removal, thermostat replacement, coolant-pump replacement and auxiliary-fan service.
Electrical Diagrams and Body Coverage
Electrical material includes separate carburetor and SPi power-distribution diagrams, the engine-management circuit, anti-theft alarm wiring, and harness/ground-location views. The wiring-diagram section is specifically for 1992 and later Mini models fitted with anti-theft alarms. Harness fault examples connect symptoms with possible causes and repair techniques, supporting investigation of intermittent circuit faults.
Body coverage is for installed components and trim, including glazing, closures, the fabric sunroof and Cabriolet top, rather than structural collision repair. Rover specifies companion AKM 6845 Mechanical Fault Finding Manual and AKM 7181 Body Repair Manual; neither is included in this PDF.
Fuel-system work, ignition testing, brake hydraulics and under-vehicle repair should be carried out with the isolation, cleanliness and support precautions stated in the manual.
A Preview of Bearing Clearances and SPi Pressure Checks
The crankshaft repair section specifies main-bearing clearance of 0.017–0.058 mm for the Plastigauge check and crankshaft end float of 0.051–0.076 mm for thrust-washer selection.
The MEMS-SPi fuel-pressure test specifies 1.0 bar with the engine running and a maximum pressure drop of 0.7 bar during the first minute after shutdown.
