1962 Vespa 150 (VBB) Operation and Maintenance Manual (Dis. 88356 M)

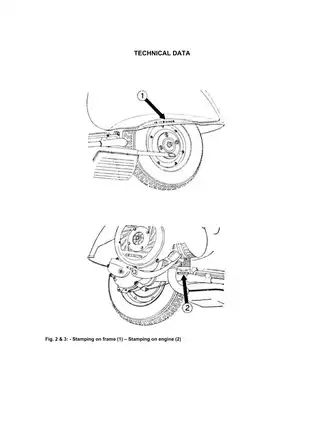

Piaggio’s second-edition operation and maintenance booklet covers the 1962 Vespa 150 with VBB frame and engine identification. The document is marked Dis. 88356 M and explains the scooter’s controls, mechanical layout, routine maintenance, and basic fault finding.

Printable PDF, Text Search and Wiring Detail

Search and diagram detail: The main text is searchable, but lettering embedded in illustrations is not consistently included in searches. There are no embedded PDF bookmarks. Small wiring-diagram labels require zooming for comfortable reading.

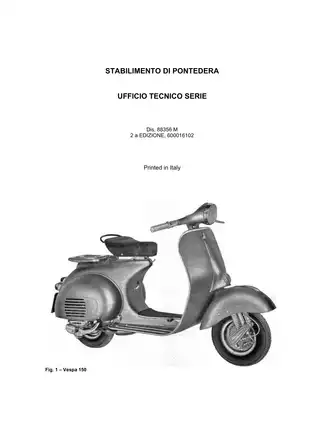

The ZIP download contains one printable, 31-page PDF, including the cover and publication page. The instructions are in English, with Italian publication details.

Operation, Routine Service and Electrical Checks

The selected topics below cover the main operating and maintenance sections. The booklet also includes passenger-seat and spare-wheel-bracket illustrations, plus a list of the original onboard tools.

• Starting and controls: Cold and warm starting, flooded-engine guidance, running-in instructions, gear selection, and illustrated identification of the rider controls.

• Engine maintenance: Gearbox oil checks and changes, air-cleaner and spark-plug care, lubrication points, and a brief service-station procedure for decarbonizing the cylinder and exhaust.

• Carburetor and ignition: Slow-running adjustment, throttle-cable adjustment references, breaker-point maintenance, and diagrams explaining the feeding circuit and ignition components.

• Wheels and brakes: Step-by-step instructions for engine-bonnet removal and wheel and inner-tube removal, plus cable-operated brake adjustment and tire-pressure guidance.

• Electrical system: Ignition and wiring diagrams, a cable-and-harness illustration, handlebar-switch functions, bulb specifications, and headlamp alignment instructions.

• Fault finding: Symptom-and-remedy tables for hard starting, loss of power, excessive fuel consumption, poor braking, and loose or incorrectly connected electrical leads.

The booklet is written for Vespa owners handling operation and routine maintenance, while directing ignition adjustment, decarbonizing, and more involved repair work to authorized service stations.

Engine, Fuel System and Routine Maintenance

The engine section explains the rotary-valve two-stroke layout, centrifugal cooling fan, gravity-fed carburetor, multiplate clutch, and oil-bath gearbox. The engine section view and drive-system drawing show how these assemblies relate to one another; they are not overhaul instructions.

The maintenance schedule identifies lubrication points for the front suspension, brake controls, flywheel cam felt, speedometer drive, and control cables. Separate instructions cover storage preparation and returning attention to the gearbox oil level.

Carburetor adjustment: The booklet distinguishes the accessible slow-running adjustment from the spring-loaded mixture screw, whose adjustment and associated dismantling are assigned to a service station.

Spark-plug handling: A specific warning explains how incorrect plug installation can damage the cylinder-head threads. The fault-finding table identifies the 21 mm box wrench for the spark plug, rather than for muffler adjustment.

Brakes, Chassis and Lighting

Descriptions cover the pressed-steel monocoque frame, steering column, front and rear spring-and-damper arrangements, and cable-operated expanding brakes. Brake adjustment is explained through free wheel rotation and the response of the lever or pedal.

Headlamp alignment has its own illustrated procedure, including the effect of carrying a passenger. Confirm free steering movement and correct brake operation before riding.

The electrical section describes the 6V flywheel-magneto supply, external ignition coil, lighting, horn, and stop-light circuits. The ignition diagram, cable-and-harness illustration, and electric wiring diagram support identification of components and connections.

Fault Finding and Repair Limits

The symptom tables connect running problems with checks of fuel supply, carburetor cleanliness, ignition, exhaust carbon deposits, and electrical connections. This gives owners a structured reference for routine checks and identifies faults that require workshop attention.

Internal engine, clutch, and gearbox overhaul procedures are outside this booklet’s scope. Gear disengagement, clutch trouble, abnormal engine noise, and suspension faults are referred to a retailer or authorized service station.

Examples of Fuel, Ignition and Bulb Specifications

The fuel instructions specify a 2% gasoline-oil mixture. Breaker-point maintenance includes a maximum opening of 0.3–0.5 mm, with adjustment assigned to a service station.

Lighting specifications identify a 25/25W dual-filament headlamp bulb and a 3W tail-lamp bulb. These are examples of the operating and maintenance data included alongside the diagrams and fault-finding tables.
