1976 Allis-Chalmers 300 & 400 Series Lawn and Garden Tractors Service Manual (P/N 9003456)

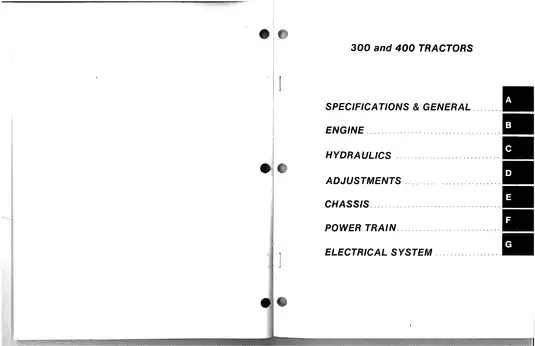

This 1976 Allis-Chalmers 300 and 400 Series Lawn and Garden Tractors Service Manual, P/N 9003456, covers the tractor models and drive configurations listed above. Its seven sections address specifications, engine maintenance, hydraulics, adjustments, chassis repair, power train service, and electrical systems.

• Engine maintenance: Kohler fuel-system checks, carburetor and governor adjustments, lubrication, air-cleaner service, ignition maintenance, and troubleshooting for starting and running problems.

• Hydrostatic overhaul: Pump and motor disassembly, rotating-group inspection, valve-plate and transfer-block service, replenishing-pump assembly, and startup after repair.

• Mechanical drivetrain: Transmission removal and rebuilding, planetary differential and rear-axle service, bevel gear box repair, and hydrostatic reduction-unit overhaul.

• Controls and PTO: Variable-speed pulley service, shuttle clutch adjustments, neutral-creep correction, clutch and brake settings, and manual or electric PTO belt adjustments.

• Chassis and electric lift: Steering gear box overhaul, front-axle and wheel-bearing service, drive-shaft inspection, and electric lift motor, ball-screw, brake, and overload-clutch repair.

• Electrical diagnosis: Starting and charging circuits, safety-interlock testing, regulator-rectifier precautions, and wiring diagrams for different ignition arrangements.

The overhaul sections are suited to mechanics and experienced owners familiar with hydraulic systems, bearing pullers, press work, and precision inspection; electrical checks require a multimeter.

Kohler Engine Maintenance and Troubleshooting

The engine section covers the Kohler K241, K301, K321, and K341. Service schedules, oil recommendations, cooling-air maintenance, spark-plug specifications, and breaker-point settings accompany carburetor and governor adjustments.

Troubleshooting guides connect hard starting, power loss, overheating, poor idle, and backfiring with possible ignition, fuel, and compression faults. Engine coverage concentrates on maintenance and external adjustments; it does not provide a complete internal engine overhaul procedure.

Vickers Hydrostatic Overhaul and Diagnosis

The hydraulic section covers Vickers T66 and TA6 Series-10 assemblies and explains the separate TA6 pump/TB6 motor arrangement. Illustrated procedures address the piston assemblies, cylinder blocks, swash plates, bearings, replenishing pump, and control valves.

The T66 & TA6 Valve Plate Assembly exploded view supports component identification. The Hydraulic Cooling System drawing shows the reservoir, filter, cooler, fan, and connecting hoses.

The Transmission Servicing Guide relates symptoms to travel direction, load, speed, throttle position, and temperature. This helps narrow the suspected fault to the charge system, rotating groups, or control valves before selecting an overhaul procedure. Separate linkage adjustments address creeping in neutral.

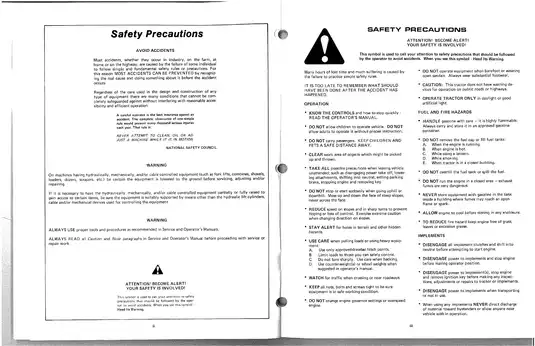

Valve-plate inspection notes explain that excessive resurfacing can remove the hardened layer. The manual also requires pressure release and secure support of loads before hydraulic connections are opened.

The Vickers subsection refers installation dimensions to separate drawings; tractor-level removal and reinstallation are covered in the power train section.

Transmissions, Shuttle Drive, and PTO

Mechanical transmission procedures cover case and cover bearings, intermediate shafts, sliding gears, shifter forks, and axle-tube assembly. Separate instructions distinguish the three-speed transmission from the four-speed shuttle configuration.

The shuttle section explains forward, reverse, neutral, and feathering operation, followed by planetary-unit disassembly and assembly. Variable-speed service covers pulley bearings, Teflon-coated sliding components, linkage adjustment, and belt-slippage checks.

Bevel gear box instructions distinguish earlier and later oil-fill arrangements. Manual PTO adjustments also identify catalog-number and serial-number changes, while electric PTO instructions distinguish new-belt and used-belt settings.

Steering, Axles, and Electric Lift

Chassis procedures cover steering gear removal, follower adjustment, steering-linkage inspection, and the different front-axle arrangements used by the two tractor series. Rear-axle and planetary differential instructions include the later wide-gear assembly.

Electric lift coverage extends into the motor, ball-bearing screw and brake assembly, outer tube, gear case, and overload clutch. Assembly illustrations show the coupling, seals, and Belleville-washer arrangement.

Charging Circuits and Safety Interlocks

Electrical coverage includes alternator charging diagrams for battery and breakerless ignition, motor-generator circuits, and the full Magneto Ignition System and Breaker Point Ignition System wiring diagrams. Wire colors, switch terminals, PTO components, and optional accessories are identified.

Safety-switch tests address continuity, adjustment, and unwanted grounding. Starter-mounting notes explain how ordinary capscrews can allow movement and gear clash where shouldered capscrews are required.

Selected Piston-Shoe Inspection Limits

For the Vickers rotating group, shoe-thickness variation across the nine piston shoes is limited to 0.001 inch. The inspection illustration also specifies maximum piston-shoe ball-joint end play of 0.003 inch when new and 0.008 inch when used.

Printable PDF and Diagram Readability

Search, navigation, and wiring detail: PDF text search and embedded bookmarks are not available. Small wire-color labels and switch-terminal markings in the wiring diagrams require enlargement for comfortable reading.

Supplied as one printable, 130-page PDF. The total includes the front and back covers, three blank pages, five notes pages, and two revised service pages within the same manual.
