Allis-Chalmers 180, 185, 190, 190XT, 200 & 7000 Tractor Shop Manual (1967–1981)

Allis-Chalmers shop manual for the 180, 185, 190, 190XT, 200, and 7000 tractors, covering model-specific gasoline, diesel, and LP-Gas applications. Numbered repair paragraphs connect the service procedures with condensed engine data and component illustrations.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram detail: Most body text has a searchable OCR layer; the labels in the final two Model 7000 wiring diagrams are not searchable. Embedded page-range bookmarks are only partly functional. Small wiring labels require zooming, and the Model 7000 diagrams are sideways.

The ZIP contains one printable 83-page PDF, reproducing printed pages 2–84. This total includes the index, condensed service data, and four wiring-diagram pages.

Engine, Drivetrain, and Hydraulic Repair Coverage

These selected repair topics outline the manual’s workshop coverage rather than its complete contents. Other examples include belt-pulley gear adjustment and oil-cooler service.

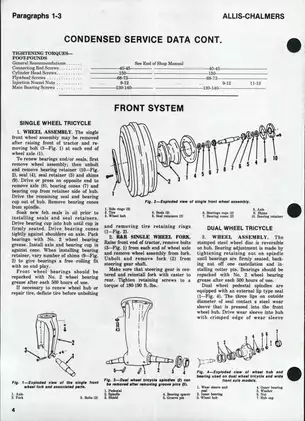

• Engine repair: Engine removal and installation, cylinder-head and valvetrain service, timing gears, piston and wet-sleeve inspection, and related adjustment specifications.

• Fuel systems and turbochargers: Diesel injector testing and overhaul, Roosa-Master pump removal and timing, gasoline and LP-Gas adjustments, and turbocharger repair.

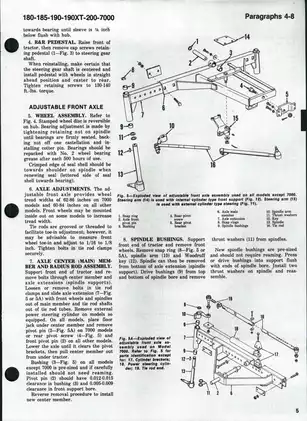

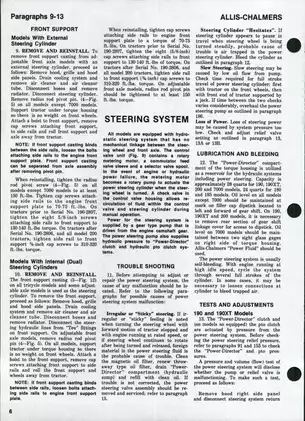

• Front axle and steering: Tricycle and adjustable front-axle service, external- and internal-cylinder hydrostatic steering, bleeding, control-valve overhaul, and pressure/flow testing.

• Clutches and transmissions: Engine-clutch repair, Power-Director service, Model 7000 Power Shift overhaul, shifter interlocks, shaft and gear work, and tractor splitting.

• Final drives, brakes, and PTO: Differential, bull-pinion, bull-gear, and axle service; band/disc brake repair; hydraulic PTO testing and single- or two-speed overhaul.

• Traction Booster and power lift: Gear-pump overhaul, relief and flow-control valves, lift and remote-cylinder repair, hydraulic test connections, and linkage adjustments.

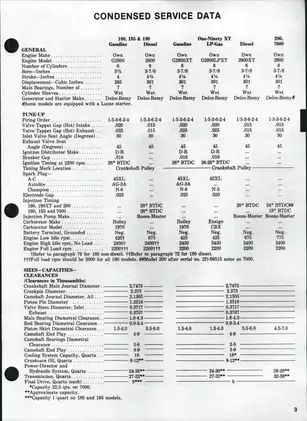

• Electrical and service references: Distributor service, charging and starter test specifications, wiring diagrams, component torques, capacities, clearances, inspection limits, and exploded and section views.

Suited to experienced tractor mechanics and owners familiar with tractor splitting, precision measurement, press work, and hydraulic test equipment.

Engine Rebuilds and Cooling Components

The application table distinguishes G2500 and G2800XT gasoline engines, G2800LPXT LP-Gas equipment, and 2800, 2900XT, and 2900 diesel applications. These distinctions help readers select the appropriate procedures and specifications before ordering parts or opening an assembly.

Internal engine coverage extends to camshaft bushings, connecting rods, crankshaft and main bearings, crankshaft seals, flywheel, and lubrication components. Cooling-system work includes radiator removal and water-pump overhaul, with model-dependent component arrangements.

Diesel, Gasoline, and LP-Gas Service

Diesel sections address filter bleeding, primer-pump and water-separator service, injector overhaul, injection-pump drive gears, and governed-speed adjustments. Model 7000 injector-sleeve work identifies special tools ACTP 2057 and ACTP 2059, alongside the illustrated installation arrangement.

Gasoline material covers Holley 1970 and Zenith carburetor adjustments, diaphragm fuel-pump details, governor overhaul, distributor repair, and ignition timing. LP-Gas coverage includes the Ensign CBX carburetor, RDH regulator/vaporizer, filter, mixture adjustments, and fault diagnosis.

Separate Thompson, Rajay, and Airesearch turbocharger sections distinguish early and late components. Their cautions address damage from dropped turbine-shaft assemblies or weight resting on turbine blades, plus incompatible early/late Rajay bearing housings and flanges caused by different seal-groove locations.

Steering and Traction Booster Hydraulics

The steering control-valve exploded view documents the six centering springs in two back-to-back groups. External-cylinder and internal dual-cylinder arrangements have separate service instructions.

Hydraulic coverage distinguishes the gear-pump configurations and their steering, lift, and Traction Booster circuits. Snap-Coupler preload, torsion-bar adjustment, position control, lowering rate, and control-lever release checks are treated separately, with OTC pressure-and-flow test connections shown.

Production changes include the Model 200 steering-flow revision and the Model 7000 pump flow-divider redesign. These distinctions matter when matching valve components and test information to the installed equipment.

Transmission Construction and Rear-Drive Service

Transmission sections address input and bevel-pinion shafts, countershafts, reverse idlers, bearing preload, and gear mesh. Early and late 190/190XT construction is separated at tractor serial number 9000; the manual also notes that field changes can place later transmission parts in earlier tractors.

For the Model 7000, tractor-splitting procedures distinguish whether the cab remains with the front or rear section. Power Shift and PTO work references ACTP 3025, 3027, 3028, 3030, 3031, and 3032.

Reassembly notes explain how housing misalignment can damage the front Power-Director bushing and how separating the housings again during Model 7000 assembly can disengage the Power Shift clutch hubs.

Rear-drive material distinguishes standard and high-clearance final drives, differential constructions, and model-specific brake arrangements. Brake service includes return-spring handling cautions because overstretched springs can leave the brakes dragging.

Electrical Tests and Repair Illustrations

Electrical specifications distinguish Delco-Remy equipment from the Model 7000 integral-regulator alternator and the Lucas M50 starter fitted to later 7000 tractors. The sections provide the applicable bench-test data and regulator adjustments.

Illustrations include the Power Shift hydraulic-flow diagram, early/late transmission shaft views, brake assembly cross-sections, and Traction Booster pump and valve layouts. Separate diesel and non-diesel 190/190XT wiring diagrams apply after serial 190-13014, followed by Model 7000 instrument-panel and engine/chassis diagrams.

Exploded views support component identification during repair; this shop manual is not a replacement-parts catalog. The work involves heavy tractor sections, rotating assemblies, press operations, and pressurized hydraulic and fuel systems. Secure machine support and isolation of pressure, fuel, and electrical supplies are required before disassembly.

A Preview of Valve and Injector Test Specifications

Diesel valve-clearance specifications distinguish cold and hot checks: inlet and exhaust clearance is 0.018 in. cold and 0.015 in. hot, with the engine stopped for checking.

Injector opening-pressure data specify 2750 psi for the 190 with the 2800 diesel engine and 3475 psi for the 200 and 7000 with the 2900 diesel engine. These values accompany separate spray-pattern, seat-leakage, and leak-back test descriptions.
