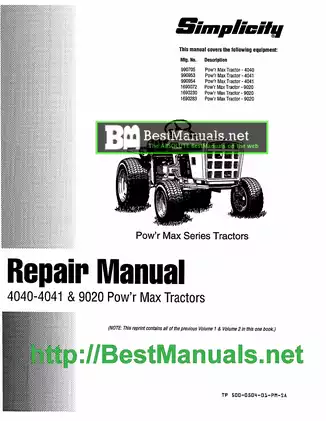

Simplicity Pow'r Max 4040, 4041 & 9020 Tractor Repair Manual (P/N TP 500-0504-01-PM-SA)

Simplicity's repair manual for the 1970s Pow'r Max 4040, 4041, and 9020 tractors, P/N TP 500-0504-01-PM-SA, combines the former Volume 1 and Volume 2 in one reprint.

PDF Search, Bookmarks, and Diagram Detail

Finding text and reading wiring: OCR text search is available throughout the service sections, though recognition errors can affect individual words and diagram labels. Embedded bookmarks link to the main sections and many subsections. The cover and back cover have no searchable text. Small wire-color and connector labels in the detailed wiring diagrams require zooming.

One printable English PDF contains 129 pages, including the cover, six contents pages, one safety page, three nontechnical supplementary pages, and the back cover.

Drivetrain Overhaul and Tractor System Diagnosis

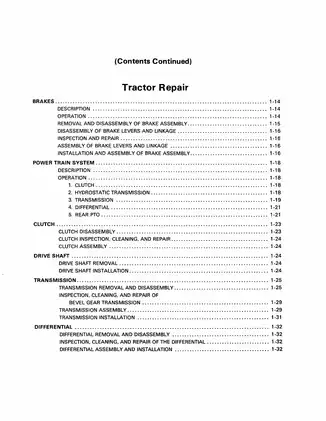

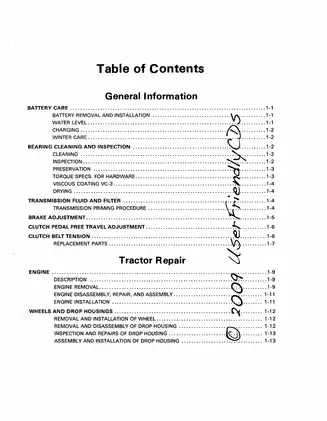

These selected contents outline the main workshop coverage; additional topics include battery care and bearing cleaning and inspection.

• Engine and fuel system: Engine removal and installation, fuel tank and gauge service, air-cleaner maintenance, and fuel-line replacement, with internal engine work referred to separate Onan documentation.

• Transmission and differential: Step-by-step disassembly and assembly procedures, bevel-gear shimming, differential slip-clutch service, and transmission fluid replacement and priming.

• Hydrostatic unit: Pressure checks, troubleshooting charts, charge-pump and relief-valve service, acceleration-valve inspection, and pump, motor, and center-section repair.

• PTO drives: Rear PTO drive-unit overhaul and final-drive shimming, plus front electric-clutch removal, installation, and variant-specific brake adjustment.

• Brakes and steering: Self-energizing double-disc brake service, steering-gear overhaul and bench adjustment, and inspection of steering shafts, drag links, tie rods, front axles, and wheel hubs.

• Hydraulic lift: Control-valve and cylinder removal and installation, oil-cooler inspection, and hydraulic flow diagrams showing the relationship between lift and hydrostatic circuits.

• Electrical diagnosis: Model-specific wiring diagrams, harness checks, charging and ignition tests, neutral-start switch adjustment, and troubleshooting for warning lights and PTO circuits.

Written for repair personnel, this manual assumes mechanical knowledge and familiarity with the tractor's operator's manual; bench work calls for measuring tools and suitable lifting equipment.

Engine Removal and Onan Service Boundaries

The Onan CCKA and CCKB sections explain engine removal, reinstallation, PTO alignment, and throttle and choke connections. Internal engine disassembly, repair, and assembly require the separate Onan service manual, which is not included.

Fuel coverage distinguishes the air-cleaner arrangements and documents tank, gauge, hose, and filter work. Fuel-pump, carburetor, governor, and muffler service also refer to Onan documentation.

Starter and flywheel removal are covered, including the Onan 420A100 puller; starter overhaul is referred to the Onan manual. The flywheel section warns that prying against the die-cast gear-case cover can break it.

Transmission, Hydrostatic Unit, and PTO Detail

The Transmission Shim Color Identification Chart and Final Gear Assembly Shimming Measurement view support the drivetrain measurements. The hydrostatic installation section also provides a shim-selection chart keyed to the markings on the transmission case and replacement unit.

Troubleshooting charts distinguish jerky travel, loss of drive, and overheating, helping the reader identify which checks apply before proceeding to internal repair. The overhaul section explains valve-plate differences, cylinder-block replacement limits, and testing after reassembly.

Hammering on the hydrostatic input, output, or control shafts can damage the unit. Separate rear PTO illustrations distinguish the 4040 arrangement from the later models.

Steering, Brakes, and Hydraulic Lift

Brake Linkage exploded views and steering-gear side and end views accompany inspection and assembly procedures. Steering coverage extends to ball-nut service, thrust-bearing preload, lash adjustment, and front-wheel alignment.

The Power Lift Hydraulic Flow Diagram explains oil routing through the charge pump, relief valves, control valve, and cylinder. Internal hydraulic control-valve servicing is referred to separate Cessna documentation; this manual covers removal, installation, and associated linkage and tubing.

Follow the manual's safety precautions for lifting the tractor, working around rotating parts, and electrical isolation.

Wiring Variants and Circuit Tests

Separate wiring and harness diagrams distinguish the 4040 from the 4041/Pow'r Max/9020 arrangement. Charging and Ignition Circuits illustrations identify test points for tracing charging faults and checking breaker-point ignition.

The electrical section also covers instrument-panel components, lights and hourmeter circuits, pressure and temperature warning circuits, and electric-clutch resistance checks. The 9020 instructions distinguish manufacturing numbers 1690072 from 1690230/1690283 for neutral-start switches and front PTO clutch-brake equipment.

Selected Drivetrain Clearances and Electrical Test Values

The final-drive section specifies cap end play of 0.002–0.005 inch. Transmission refill guidance gives approximately six quarts, with the final level determined by the dipstick.

The charging-circuit check specifies 13.4–14.7 VDC across the battery at 1,800–3,600 rpm. Plated-hardware torque tables cover SAE Grades 2, 5, and 8, with thread sizes from #8-32 through 1 inch.
