Jeep Wrangler TJ 2003 Service Manual (P/N 81-370-03063)

1,666 Pages • Printable PDF • 44.53 MB • Download

5.0starstarstarstarstar(1)
$16.86 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Jeep Models Covered & Key Technical Specifications

Model & Model Code: Wrangler (TJ)

Sub-models / Variants: SE, X, Sport, Sahara, 2.4L 4-cylinder, 4.0L 6-cylinder, Left Hand Drive (LHD, TJJ), Right Hand Drive (RHD, TJU), Hard Top (VKN White, VKU Spice, VKX Black), Soft Top (VJN White, VJU Spice, VJX Black), 93.4-in. Wheelbase (body type 77)

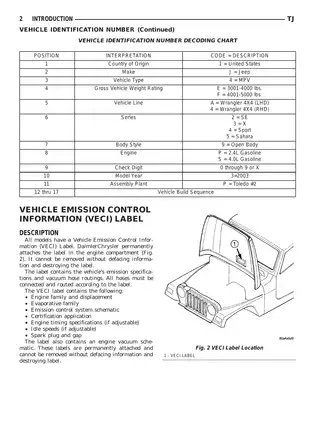

VIN Identification: Position 5 (vehicle line): A = Wrangler 4x4 LHD, 4 = Wrangler 4x4 RHD. Position 6 (series): 2 = SE, 3 = X, 4 = Sport, 5 = Sahara. Position 8 (engine): P = 2.4L Gasoline, S = 4.0L Gasoline.

Model Year: 2003


  • Engine: 2.4L Gasoline (ED1), 4.0L Gasoline (ERH)

  • Transmission Types: NV3550 5-speed Manual (DDD, 4WD), NV1500 5-speed Manual (2.4L), 42RLE 4-speed Automatic (DG6, documented with 4.0L), AX15 5-speed Manual (DDK, body-code reference only)

  • Transfer Cases: NV231, NV241

  • Front Axle: 181FBI (Model 30), 216FBI (Model 44)

  • Rear Axle: 194RBI (Model 35), 216RBI (Model 44)

  • Suspension: Link/coil spring design with stabilizer and track bars

  • Brakes: Hydraulically actuated, with wheel speed sensors on ABS-equipped models

Jeep Manual Features & Selected Content Preview

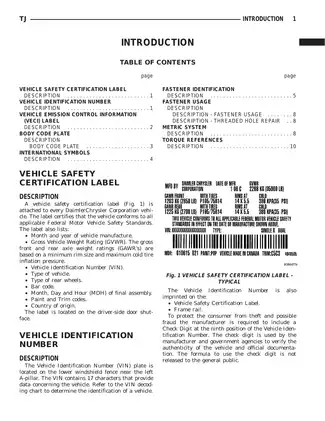

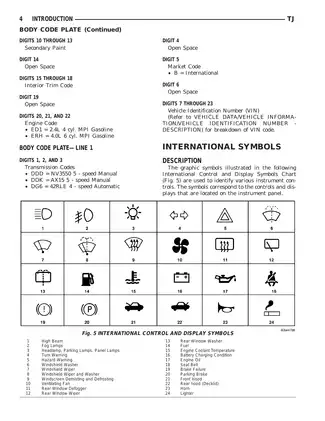

This DaimlerChrysler factory service manual for the 2003 Jeep Wrangler TJ (P/N 81-370-03063) covers maintenance, diagnosis, and repair for both gasoline engines and left- and right-hand-drive configurations. The VIN chart identifies the SE, X, Sport, and Sahara series. A dedicated procedure covers Rubicon rear propeller shaft removal and installation.

PDF Search, Bookmarks, and Wiring Diagrams

Finding procedures and circuits: Search the service text and index, or use the embedded bookmarks to jump to chapters and procedures. Many wiring diagram labels are drawn on the page and cannot be found with text search. Zoom in to read small pin numbers and wire codes. The Foreword bookmark points to a separate file outside this download.

The download is one printable PDF with 1,666 pages. The total includes the group locator, the component and system index, 34 blank pages, and the two-page service manual comment form.


Engine, Driveline, and Electrical Service

These are selected topics from the manual. Other sections cover flywheel runout checks and Sentry Key immobilizer diagnosis.

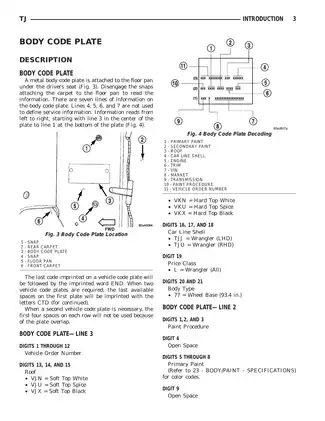

  • Vehicle identification: Use the VIN, safety certification label, emissions label (VECI), and body code plate to match service information to the vehicle’s build.

  • Engine repair: Engine removal, compression and leakage tests, cylinder-head and valve service, crankshaft and piston work, and separate timing-belt and timing-chain procedures.

  • Transmission and transfer cases: Manual gearbox teardown, automatic transmission road and pressure tests, and transfer case removal, inspection, reassembly, and shift linkage adjustment.

  • Axles and propeller shafts: Axle shaft, seal, and bearing service, differential setup, Trac-Lok and air-actuated locker repair, and single- and double-Cardan universal joint service.

  • Suspension, steering, and brakes: Caster and toe checks, link-coil suspension repair, power steering flow and pressure testing, and base brake and ABS diagnosis and bleeding.

  • Electrical fault tracing: Power distribution, fuel and ignition, transmission control, and ABS diagrams, with connector pinouts, ground and splice locations, and wiring repair procedures.

  • Body and HVAC: Full and half doors, removable tops, glass, seats, and body structure, plus manual HVAC controls and R-134a recovery, evacuation, and charging.

The manual suits technicians and experienced owners who already use shop measuring tools. Routine maintenance is covered alongside work that calls for dedicated equipment, such as differential setup or scan-tool-assisted ABS bleeding.

Maintenance and Engine Checks

Schedule A and Schedule B distinguish normal service from conditions such as towing, dusty roads, and frequent short trips. The maintenance section lists recommended fluids, nominal refill capacities, chassis lubrication points, hoisting locations, towing precautions, and jump-starting information.

The 2.4L chapter covers timing belt and balance shaft service. The 4.0L chapter covers timing chain and valve timing work, including oil pump overhaul elsewhere in the same engine chapter. Separate cooling, fuel delivery, ignition, emissions, charging, starting, exhaust, and speed control sections provide system-specific checks and specifications.

Gearbox Overhaul and Scan-Tool Diagnosis

The NV1500 and NV3550 chapters cover internal inspection and reassembly. The AX15 entry is limited to body-code identification. The NV231 and NV241 chapters include shift linkage adjustments as well as internal service.

The 42RLE chapter pairs road-test findings with hydraulic pressure and clutch air-pressure checks. It also covers the input clutch, oil pump, valve body, solenoids, and torque converter. The manual includes DRB III Quick Learn after specified repairs. It refers fault-code testing to the separate 42RLE Transmission Diagnostic Procedure Manual and ABS fault testing to the Chassis Diagnostic Manual.

Differential Setup and Chassis Service

The axle procedures help distinguish a shaft or seal job from a full differential setup. They cover noise and vibration diagnosis, pinion depth, side-bearing preload, backlash, runout, and drive and coast gear-contact patterns when fitting a matched ring-and-pinion set. Trac-Lok service covers the clutch pack, while the air-locker sections cover the pumps, hoses, switches, actuators, and dog clutches.

The tool callouts include Ball Joint Tool Kit 6289, Suspension Bushing Remover/Installer 7932, Dial Indicator C-3339, Spreader W-129-B, and axle-specific Pinion Depth Sets 6774 and 6730. Torque charts and inspection limits support component checks and reassembly.

The suspension section explains how tightening rubber-bushed arms or track bars with the axle hanging can shorten bushing life. The axle chapters warn that an overcrushed pinion spacer needs replacement and that reused ring-gear bolts can fracture.

Electrical Checks and Workshop Safety

Starter feed-circuit voltage-drop tests help locate excessive resistance before replacing the starter. The wiring chapter also covers terminal, connector, and splice repair. Brake service includes rotor and drum checks and parking brake adjustment.

Axle, spring, brake, airbag, and A/C work can involve suspended weight, stored force, pressure, or pyrotechnic restraints. Use the manual’s support, isolation, and safety procedures for the system being serviced.

Sample Specs for Cylinder-Head and Axle Inspection

For the 2.4L engine, the cylinder-head inspection specifies flatness within 0.1 mm (0.004 in.) at the gasket surface.

The 181FBI front axle specifications give a ring gear backlash range of 0.12–0.20 mm (0.005–0.008 in.) for checking gear mesh during differential setup.
