1985–1987 Honda VFR750F Factory Shop Manual (P/N 61MK801)

Honda's factory shop manual for the 1985–1987 VFR750F covers scheduled maintenance, diagnosis, and mechanical and electrical repair. The original publication carries a 1986 copyright.

• Engine repair: Engine removal and installation, cylinder-head and valve service, gear-driven camshaft installation, and crankshaft/piston inspection.

• Fuel system: Carburetor removal, separation, cleaning, vacuum-chamber and float inspection, synchronization, and pilot-screw adjustment.

• Clutch and transmission: Hydraulic-clutch bleeding, master/slave-cylinder service, clutch and starter-clutch inspection, crankcase separation, and internal transmission repair.

• Lubrication and cooling: Oil-pressure testing, oil-pump inspection, radiator pressure testing, thermostat checks, and water-pump removal and installation.

• Chassis and brakes: Steering-head bearings, wheel bearings, anti-dive forks, rear suspension linkage, hydraulic brake bleeding, and caliper/master-cylinder service.

• Electrical diagnosis: Charging and ignition tests, starter-motor service, fuel-pump/relay checks, system circuit diagrams, and the full wiring diagram.

Suited to mechanically qualified owners and technicians with the specified tools and service data. The manual assumes familiarity with standard workshop procedures.

V4 Engine, Clutch, and Transmission Repair

The camshaft procedures distinguish work on one cylinder bank from removal of both banks. The front cylinder head can be removed with the engine in the frame; rear-head removal requires engine removal.

Crankcase, crankshaft, and connecting-rod code charts help select replacement bearing inserts, with separate front/rear crankpin-bearing entries. The manual warns that misplaced inserts or incorrect oil clearance can damage the engine.

Clutch exploded views identify the judder spring and plate stack. Internal transmission repair requires crankcase separation and includes mainshaft, countershaft, shift-fork, and shift-drum inspection.

Fastener-specific torque tables distinguish cylinder-head and cam-drive gear-case bolts. Valve-service tool references include tappet-adjuster wrench set 07GMA-ML70100 and wrench holder 07GMA-ML70200.

Carburetor Service and Control Cables

Vacuum-chamber illustrations show the diaphragm, piston, jet needle, and retaining hardware. The carburetor chapter distinguishes bench synchronization during assembly from synchronization with vacuum gauges after installation.

Throttle/choke cable routing and adjustment receive separate coverage, including notes on sticking or binding controls. The pilot-screw sections specifically address seat damage from overtightening.

Lubrication Circuits and Cooling-System Tests

Lubrication schematics trace the feed and cooler circuits, supported by oil-pump rotor, strainer, and relief-valve inspection procedures.

The cooling-system diagram accompanies radiator-cap pressure testing, thermostat inspection, and radiator/fan service. For a leaking water-pump mechanical seal, the manual specifies replacement of the complete pump assembly.

Anti-Dive Forks, Rear Suspension, and Brakes

Fork exploded views distinguish left/right internals and the anti-dive case, including its piston, adjuster, and orifice. Rear suspension coverage extends to the spring adjuster, shock linkage, and swing-arm pivot bearings.

Brake sections document disc inspection and front/rear hydraulic component service. Tubeless tire repair is referred to a separate manual. Honda's maintenance schedule recommends dealer-only service for its wheel and steering-head-bearing items.

Brake and fuel-system work requires a well-ventilated workspace, control of ignition sources, and attention to the specified fastening and bleeding procedures.

Ignition, Charging, and Starting Faults

Transistor-ignition diagnosis separates coil, crank-pulse-generator, cam-pulse-generator, and spark-unit checks. Ignition timing is inspected rather than adjusted.

Charging tests distinguish stator and regulator/rectifier faults. The starter-circuit diagram separates the relay, clutch/neutral switches, and clutch diode, helping trace a no-crank fault before starter-motor removal.

The full wiring diagram supports circuit tracing, while troubleshooting flowcharts address hard starting, power loss, poor idle, high-speed performance, and handling problems.

A Sample of Valve, Compression, and Lubrication Data

These figures are a small selection of the service specifications in the manual.

The specification table lists nominal cold intake-valve clearance at 0.13 mm, measured between the camshaft and rocker arm. Cylinder-compression pressure is specified at 1,373 ± 196 kPa (199 ± 28 psi), with the engine warm and the throttle fully open during starter cranking.

Lubrication data lists 3.9 liters of engine oil after draining. Oil-pump inspection specifies a 0.20 mm service limit for rotor tip clearance.

PDF Reading, Diagram Detail, and Included Pages

Text search and wiring detail: Text search and embedded PDF bookmarks are not available. Small labels on the full wiring diagram require zooming, and some fine lettering remains indistinct.

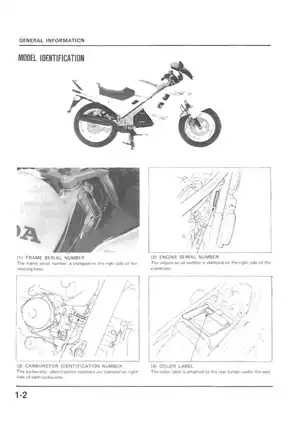

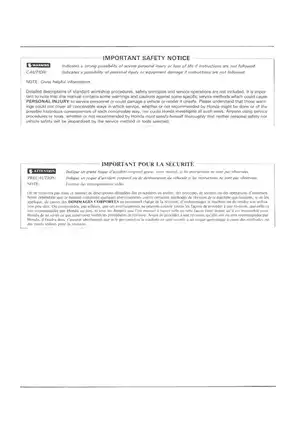

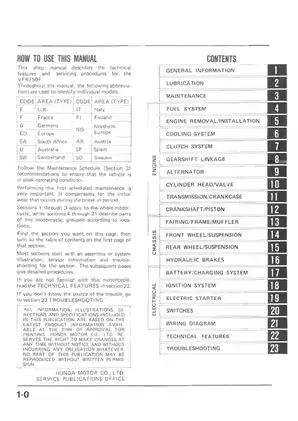

The download contains one printable 577-page PDF with English, French, German, and Italian content. The total already includes one front cover, one safety-notice page, one introductory contents page, and one blank page.
