2005–2009 Yamaha YP250R X-MAX Scooter Factory Service Manual (P/N 1C0-F8197-E0)

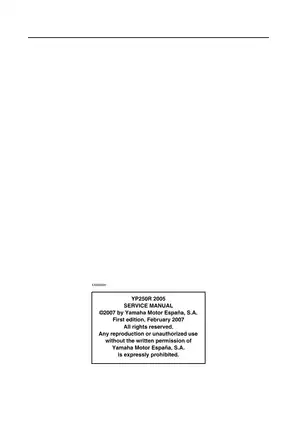

• Coverage and document identity: Identifies the 2005 Yamaha YP250R, model code 1C01, in a 370-page PDF. This is the February 2007 first edition, marked with Yamaha cover code 1C0-F8197-E0.
• Engine repair: Follows engine removal through cylinder-head service, camshaft and rocker-arm work, valve and valve-seat inspection, piston and ring checks, crankcase separation, crankshaft installation, oil-pump service, and final assembly.
• Belt drive and transmission: Breaks down the V-belt case, primary and secondary sheaves, centrifugal clutch, starter clutch, generator, and final transmission, with removal, disassembly, inspection, assembly, and installation procedures.
• Chassis repair: Details wheel and brake-disc inspection, static wheel balancing, master-cylinder and caliper overhaul, hydraulic brake bleeding, front-fork teardown, steering-head service, handlebar work, rear shocks, and swingarm inspection.
• Cooling and fuel systems: Covers radiator, thermostat, and water-pump repair; carburetor removal and overhaul; auto-choke and air-induction checks; and fuel-pump, fuel-sender, and fuel-tank service.
• Electrical diagnosis: Provides circuit tests and fault isolation for ignition, electric starting, charging, lighting, signaling, radiator-fan control, fuel pump, auto choke, and the immobilizer, including key-code registration and self-diagnosis codes.

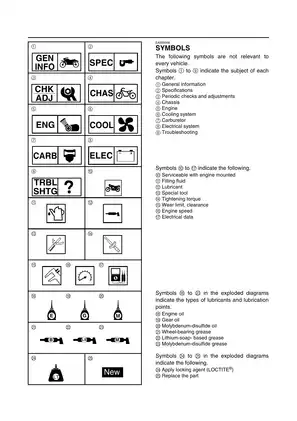

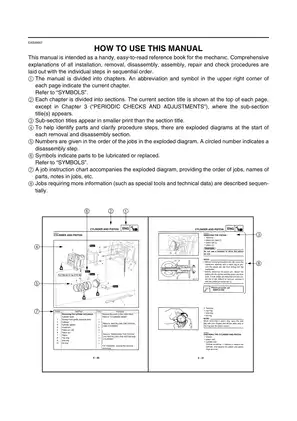

• Workshop reference: Supplies exploded assembly views with numbered job charts, special-tool references, torque tables, fluid and lubricant data, inspection limits, clearance specifications, electrical test values, cooling diagrams, and cable-routing layouts.

Intended Workshop Use and Coverage

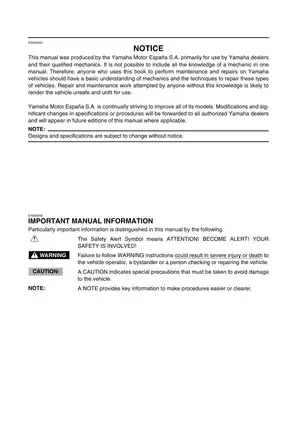

Yamaha produced this manual primarily for its dealers and qualified mechanics. The notice also states that anyone performing maintenance or repair work needs a basic understanding of mechanics and the techniques used on Yamaha vehicles. It is therefore suited to trained technicians and experienced mechanics with appropriate workshop equipment, not beginners learning basic service from scratch.

The documented application is the carbureted YP250R 2005 / 1C01 configuration. It should not be treated as blanket coverage for later model years or different YP250 variants.

Factory Procedures and Special Tools

The engine chapters go beyond routine maintenance. Dedicated repair procedures cover timing-chain and tensioner work, valve-guide and valve-seat checks, cylinder and piston measurement, crankshaft and connecting-rod inspection, crankcase sealing, and V-belt and clutch wear evaluation. The carburetor section addresses the float, needle valve, jets, diaphragm, pilot-screw setting, auto choke, and air cut-off system, while the periodic-service chapter adds valve-clearance adjustment, compression testing, ignition-timing checks, idle exhaust-gas testing, coolant replacement, steering-head adjustment, and battery charging.

The special-tool list identifies the equipment expected for deeper work. Examples include crankshaft separating tool 90890-01135, clutch spring holder 90890-01337 with holder arm 90890-01464, valve spring compressor 90890-04019 with attachment 90890-04108, and mechanical seal installer 90890-04132.

Electrical Diagrams and Diagnostic Depth

Named electrical material includes the Ignition System Circuit Diagram, Electric Starting System Circuit Diagram, Charging System Circuit Diagram, Fuel Pump System Circuit Diagram, Immobilizer System Diagram, and the full YP250R 2005 Wiring Diagram. The troubleshooting sequences pair those schematics with connector, switch, relay, coil, sensor, charging-output, and continuity checks. The immobilizer material also explains replacement-dependent key registration, a critical distinction when the CDI unit, main switch, antenna, or keys are replaced.

General troubleshooting charts cover hard starting, incorrect idle, weak medium- or high-speed performance, clutch faults, overheating, poor braking, fork problems, and lighting or signaling failures. They direct the mechanic back to the relevant inspection and repair chapters instead of serving as generic symptom lists.

Repair Cautions and Safety

The camshaft procedure warns that turning the crankshaft during installation can damage the engine or leave the valve timing incorrect. Belt-drive assembly requires grease to be kept off the V-belt and secondary sheave, while the specified guide protects the secondary-sheave oil-seal lip during installation.

Because the manual covers hydraulic brakes, fuel-system work, battery charging, spring-loaded clutch components, and engine removal, these jobs require proper support, ventilation, protective equipment, and the specified holding or compression tools. Follow the factory warnings before working with fuel, brake fluid, electrical circuits, or loaded components.
