2004–2008 Honda ARX1200T3, ARX1200T3D & ARX1200N3 PWC Service Manual (P/N 61HW153)
498 Pages • Printable PDF • 23.30 MB • Download

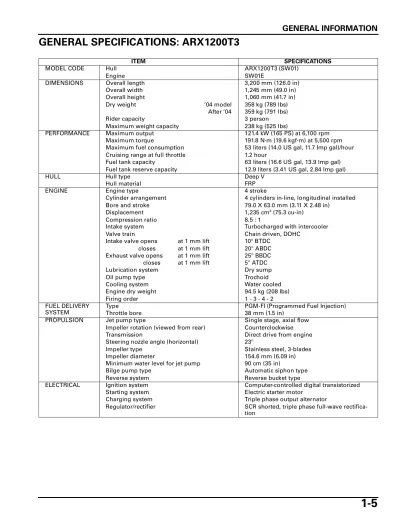

Honda Models Covered & Key Technical Specifications

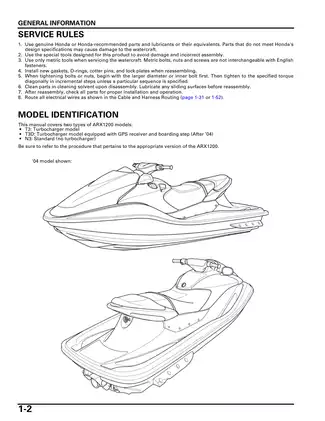

Models & Model Codes: ARX1200T3 (SW01; engine SW01E), ARX1200T3D (SW01; engine SW01E), ARX1200N3 (SW02; engine SW02E)
Sub-models / Variants: Turbocharger model, Turbocharger model equipped with GPS receiver and boarding step, Standard model (no turbocharger)
Model Years: 2004–2008 (2004, 2005, 2006, 2007, 2008)
-
Engine displacement: 1,235 cm³
-
Engine configuration: 4-stroke, 4-cylinder in-line, longitudinal installed
-
Max power output: 91.9 kW (125 PS) to 121.4 kW (165 PS) depending on variant and year
-
Fuel delivery: PGM-FI (Programmed Fuel Injection)
-
Lubrication system: Dry sump with trochoid pump
-
Cooling system: Water cooled
-
Drive system: Direct drive from engine, axial flow single-stage jet pump
Honda Manual Features & Content Preview

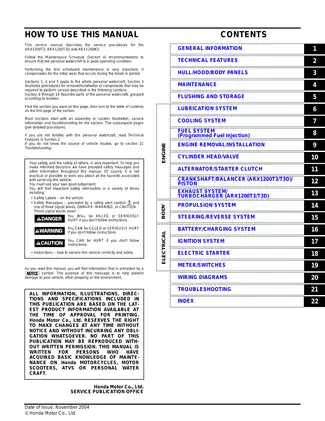

This Honda service manual covers the 2004–2008 ARX1200T3, ARX1200T3D, and ARX1200N3 personal watercraft variants. The publication is dated November 2004 and separates turbocharged and standard-model service information.
-
Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft timing, and crankshaft, balancer, and piston service.
-
PGM-FI diagnosis: MIL blink-code charts, HDS diagnostic trouble codes, ECM connector tests, fuel-pressure checks, injector diagnosis, and idle air control valve testing.
-
Turbocharged models: Wastegate actuator diagnosis, turbocharger removal and replacement, intercooler cleaning, and exhaust-system inspection.
-
Propulsion and controls: Jet pump disassembly, bearing and seal replacement, drive shaft service, engine alignment, steering nozzle repair, and reverse bucket adjustment.
-
Cooling and storage: Overheating troubleshooting, one-way valve checks, sacrificial-anode inspection, cooling-system flushing, storage preparation, and submerged-watercraft service.
-
Electrical systems: Battery and charging tests, alternator stator service, starter clutch and starter motor repair, meter checks, and model-specific color wiring diagrams.
Honda identifies qualified professional technicians as the intended users; the procedures assume service training, suitable tools, and dedicated equipment.
PGM-FI Fault Tracing and Turbocharger Service
The diagnostic sections connect MIL blink patterns and HDS Pocket Tester codes with sensor, injector, and circuit tests. ECM pinouts and connector views help distinguish wiring faults from failed components when investigating no-start, rough-idle, or reduced-power complaints.
Turbocharged-model coverage includes TCP sensor checks, wastegate solenoid and actuator testing, and intercooler removal. The turbocharger is serviced by assembly replacement; internal turbocharger disassembly is expressly excluded.
The throttle body instructions identify factory-set fasteners whose disturbance can upset throttle and idle-valve synchronization. Fuel-system work involves pressurized gasoline in the engine compartment, so the manual’s pressure-release and ventilation precautions apply.
Cylinder-Head Repair and Engine Alignment
The engine chapters extend beyond routine maintenance to compression testing, shim-selection calculations for DOHC valve adjustment, cam-chain timing, and color-code selection of main-journal and crankpin bearings. Separate procedures address the turbocharged models’ balancer shafts.
Camshafts can be serviced with the engine in the hull. Cylinder-head component service, oil-pump work, alternator/starter-clutch service, crankshaft work, and exhaust-manifold service require engine removal.
The alignment section covers parallel and concentric engine-to-jet pump alignment using tool set 070MJ-HW1A100. It explains the vibration and component-damage risks of incorrect alignment. Flywheel service also flags the left-hand-threaded retaining bolt and the risk of damaging the flywheel reluctors during handling.
Jet Pump, Steering, and Body Service
The propulsion chapter distinguishes the turbocharged and standard-model pump arrangements, including the revised N3 impeller housing. Illustrated procedures cover water jet stators, impeller-shaft bearings, drive shaft bearing housings, water seals, and thrust plates.
Steering and reverse coverage includes cable replacement, nozzle centering, reverse bucket linkage, and off-throttle steering controls. Body-panel and hood removal procedures support access to these assemblies; the T3D boarding step has its own service instructions. Hull damage is referred to a qualified boat repair facility.
Cooling, Corrosion Protection, and Storage
Overheating charts separate engine-cooling and exhaust-cooling symptoms and relate them to ECT sensor and manifold surface temperature switch signals. The dry-sump lubrication chapter covers the oil tank, oil cooler, pressure relief valve, and oil-pressure testing.
Storage coverage includes corrosion protection, return-to-service checks, and procedures for a submerged watercraft. The flushing section explains how incorrect water-supply sequencing can allow water into the engine and cause damage.
Electrical Tests and System Illustrations
Charging-system diagnosis, ignition timing checks, and starter-motor disassembly are covered separately. Ignition timing is electronically controlled and is not adjustable. The T3D GPS navigation meter coverage adds receiver communication and slow-start troubleshooting.
Visual references include Cable & Harness Routing, the Oil Management System Drawing, Cooling System Flow Patterns, the PGM-FI System Diagram, and the Test Harness Terminal Layout. Separate overall color wiring diagrams identify the T3, T3D, and N3 circuits.
A Preview of Valve, Oil-Capacity, and Ignition Data
These examples are a small selection of the manual’s adjustment, capacity, and electrical test specifications.
Intake valve clearance is 0.16 ± 0.03 mm with the engine cold, below 35°C/95°F. The ARX1200T3/T3D oil-capacity specification is 4.2 liters after draining, with separate figures for filter changes and disassembly.
The ignition pulse generator test specifies a minimum 0.7 V peak during starter cranking, with normal cylinder compression and the spark plugs installed.

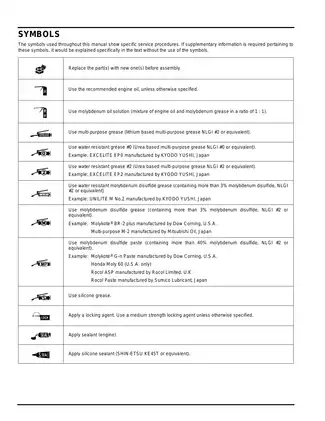

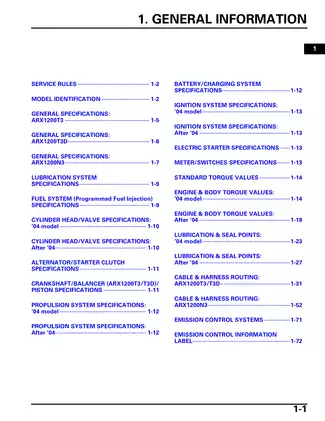

Text Search, Diagram Detail, and PDF Contents
Search and navigation: Service text is searchable, but labels inside the three overall wiring diagrams are not. Their small connector and wire-color labels are readable when enlarged. Embedded bookmarks are present, although fuel-system entries are grouped under Cooling System. Chapter 7 and 8 pages are out of sequence: cooling pages 7-2 through 7-9 appear at PDF pp. 272–279, and the fuel chapter’s opening page is PDF p. 281.
Supplied as one printable English PDF for download, with 498 pages total. This count includes three introductory pages, 12 memo pages, and two otherwise blank pages with section headers and page numbers.
