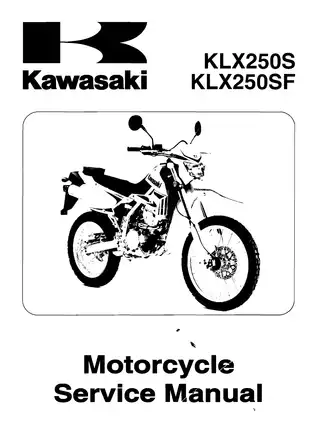

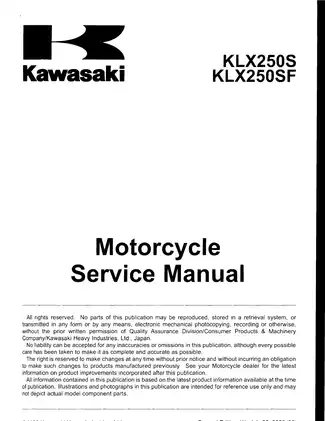

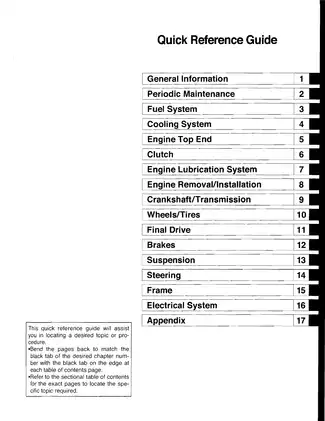

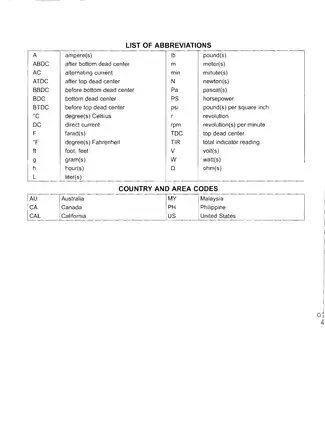

2009 Kawasaki KLX250S / KLX250SF Factory Service Manual (P/N 99924-1393-02)

• Factory-authorized reference for 2009 Kawasaki KLX250S (T9F) and KLX250SF (W9F) motorcycles (P/N 99924-1393-02)
• Documents the 249cc DOHC single-cylinder engine architecture
• Original OEM publication, General Edition, July 25, 2009
• Spans 452 pages featuring 83 exploded-view assembly diagrams and 12 torque specification tables
• Delivers comprehensive diagnostic troubleshooting, periodic maintenance schedules, and essential PDF repair documentation

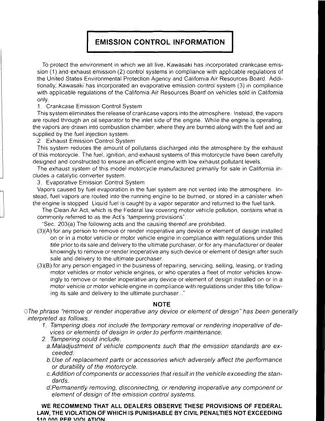

• Explains the Keihin CVK34 carburetor, Uni-Trak rear suspension, KACR mechanism, evaporative emission control system, balancer, and torque limiter

Internal System Documentation

This technical reference breaks down the major mechanical systems of the KLX250 platform. It details component architectures ranging from fuel delivery and liquid cooling to engine lubrication and the crankshaft assembly. Professional mechanics and experienced owners will find extensive reference data for transmission tolerances, suspension valving, and steering geometry. To help users avoid expensive dealership labor rates, the manual provides rigorous step-by-step instructions for complex tasks such as a complete carburetor overhaul, front fork rebuilding, and hydraulic brake fluid bleeding. The electrical chapters outline precise alternator output specs, battery requirements, and component testing procedures, fully supported by complete wiring diagrams. Navigating complex diagnostic workflows is simplified through an Ignition System Troubleshooting Flow Chart, a Coolant Flow Chart, and exact Cable, Wire, and Hose Routing views. A dedicated maintenance section establishes factory service intervals for chain tension, valve clearances, and tire wear limits utilizing the Periodic Maintenance Chart. Prioritizing shop safety, the documented specifications assume the use of proper motorcycle lifts and standard personal protective equipment during all mechanical assessments, while explicitly warning against handling highly flammable solvents near open sparks.

Engine and Chassis Specifications

Within the engine top-end section, the manual lists exact intake and exhaust valve clearances required for accurate timing calibration, utilizing dedicated Valve Clearance Adjustment Charts to determine precise shim thicknesses. Intake valve clearance specifications, for instance, are defined strictly at 0.10–0.19 mm. Cylinder head bolt torque values are mapped out in a specific multi-stage sequence, culminating in a final-stage torque requirement of 46 Nm (34 ft-lb). A critical pitfall to avoid during a top-end repair involves the camshaft caps; because the cap and cylinder head are factory-machined as a matched set, installing an unmatched cap will cause severe valvetrain binding, requiring a completely new cylinder head. Additionally, technicians must verify that the KACR weights operate smoothly, since sticking components can easily mimic a catastrophic loss of cylinder compression and cause misdiagnosed teardowns. Chassis and fluid reference data include a documented coolant system capacity of 1.3 liters. The text also clarifies critical rotational parameters, noting that crankshaft rotation checks must track clockwise from the output side for adjustment accuracy. These specific data points help technicians verify component tolerances safely and efficiently prior to reassembly. Accessing this exact OEM data eliminates diagnostic guesswork, significantly reducing bay time per vehicle and ensuring confidence before concluding any major repair.
