To make it easier for you to choose the right manual, we have compiled various information for you below, such as model designations, types, and production years.

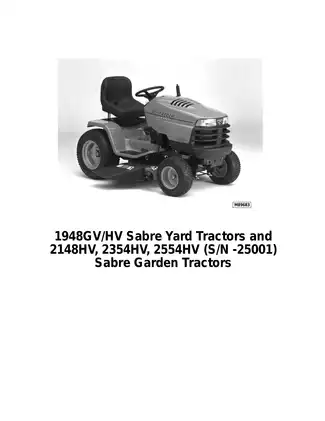

This manual is applicable to the following models: 1948GV/ 1948HV, 2148HV, 2354HV, 2554HV, Yard Series / John Deere, Sabre, built in Horicon, Wisconsin, USA.
2002 John Deere Sabre 1948GV: M0048GVX010001-M0048GVX099999
2002 John Deere Sabre 1948HV: M0048HVX010001-M0048HVX099999
2002 John Deere Sabre 2148HV: M002148X010001-M002148X099999
2002 John Deere Sabre 2354HV: M002354X010001-M002354X099999
2002 John Deere Sabre 2554HV: M002554X010001-M002554X099999
Details 1948GV / 1948HV engine: Kohler CV20S, gasoline, 2-cylinder, air-cooled vertical-shaft V-Twin, 622 cc, 38 ci, 19 hp, 14.2 kW.
Details 2148HV engine: Kohler CV22S, gasoline, 2-cylinder, air-cooled vertical-shaft V-Twin, 673 cc, 41.1 ci, 21 hp, 15.7 kW.
Details 2554HV engine: Kohler CV25S, gasoline, 2-cylinder, air-cooled vertical-shaft V-Twin, OHV, 722 cc, 44.1 ci, 25 hp, 18.6 kW, 1550-3550.
Production year(s): 1998, 1999, 2000, 2001, 2002.
Pages: 324
Publication number:
Language: English (some of our manuals are multilingual)
#
³
"Maximize Your 2002 John Deere Sabre Yard Garden Tractor's Potential with Our Comprehensive Manual/Parts List PDF Download"
The 2002 John Deere Sabre 1948GV-1948HV, 2148HV, 2354HV, and 2554HV yard garden tractors are versatile machines designed to handle a wide range of tasks. With the John Deere Sabre manual/parts list PDF download, you'll have everything you need to keep your tractor running smoothly and efficiently.
Engine Specifications/Technical Specs:
• Engine Type: V-twin OHV
• Engine Horsepower: 19-25 HP
• Engine Displacement: 0.5-0.7 L
• Engine Fuel: Gasoline
• Engine Cooling: Air-cooled
• Drive Type: Hydrostatic
• Transmission: Automatic
• Steering: Manual
• Chassis Type: Yard and Garden
• Cutting Width: 42-54 inches
• Cutting Height: 1-4 inches
• Cutting Height Adjustment: Manual
• Cutting Deck Material: Steel
• Cutting Deck Type: Deep-deck
• Blade Engagement: Manual
• Blade Brake Clutch: No
• Drive Speed: 5-6 mph
• Tire Size: 15x6-6 front, 20x8-8 rear
• PTO (Power Take Off): Electric
• Battery: 12V
• Fuel Tank Capacity: 2-3 gallons
• Overall Length: 69-75 inches
• Overall Width: 42-54 inches
• Overall Height: 42-44 inches
• Seat Type: High-back
• Seat Adjustment: Manual
• Seat Material: Vinyl
• Deck Lift System: Manual
Facts and Details:
- The 2002 John Deere Sabre yard garden tractors are designed for versatility and ease of use, making them ideal for homeowners and small estate owners.
- The V-twin OHV engine provides plenty of power and reliability, while the hydrostatic drive provides smooth and effortless operation.
- The deep-deck cutting deck design allows for improved airflow, resulting in a cleaner cut and a healthier lawn.
- The Sabre yard garden tractors are equipped with manual steering, making them easy to maneuver around tight corners and obstacles.
- The seat is adjustable and made of comfortable vinyl material, providing a comfortable and supportive ride.
Maintenance Intervals:
► Change the engine oil and filter every 50 hours of operation or once a season.
► Replace the air filter every 100 hours or once a season.
► Clean or replace the fuel filter every 200 hours or as needed.
► Inspect and adjust the spark plugs every 200 hours or as recommended.
► Check and adjust the mower deck belt tension and replace if necessary.
► Lubricate all pivot points, linkages, and moving parts according to the maintenance schedule.
► Check the tire pressure regularly and adjust as needed.
General Maintenance Tips:
* Keep the tractor clean and free from debris to prevent clogging and damage.
* Regularly inspect and sharpen the mower blades or replace them when necessary.
* Check the battery and electrical connections for corrosion and clean if needed.
* Store the tractor in a dry and covered area to protect it from the elements.
* Follow the manufacturer's instructions for winter storage and maintenance.
Common Issues and Solutions:
■ Starting problems: Check the spark plugs, fuel filter, and carburetor for any clogs or issues. Clean or replace as needed.
■ Poor cutting performance: Sharpen or replace the mower blades and check the deck for any debris or damage.
■ Transmission issues: If experiencing difficulty in shifting gears or loss of power, check the transmission fluid levels and inspect for leaks. Consult a professional for further assistance.
■ Electrical problems: Inspect the wiring harness and connections for any loose or damaged components. Replace or repair as necessary.
■ Engine overheating: Ensure the cooling fins on the engine are clean and free from debris. Check the coolant level and inspect the radiator for any blockages.
Tuning Tips and Modifications:
* Upgrading the air intake and exhaust system can enhance engine performance.
* Installing a high-performance carburetor or fuel injection system can improve fuel efficiency and power output.
* Adding LED or upgraded headlights for improved visibility in low-light conditions.
* Installing a suspension seat for increased comfort during long work hours.
* Upgrading the tires to a larger size or more aggressive tread pattern for enhanced traction and stability.
Accessories and Aftermarket Options:
+ Grass bagger attachment for collecting grass clippings.
+ Snowblower attachment for clearing snow.
+ Front-end loader attachment for heavy lifting and moving tasks.
+ Rear-mounted tiller for cultivating soil.
+ Dozer blade for pushing dirt or snow.
+ + Sprayer attachment for applying chemicals or fertilizers.
+ Sunshade canopy for protection against the sun.
Owner Reviews and Opinions:
Owner reviews and opinions may vary, but generally, the John Deere Sabre garden tractors from 2002 are considered reliable and efficient. Some strengths include:
☺ Strong and durable construction.
☺ Smooth operation and maneuverability.
☺ Good cutting performance.
☺ Availability of various attachments for added versatility.
Weaknesses reported by some owners include:
☻ Limited turning radius in certain models.
☻ Occasional issues with the transmission.
☻ Availability of replacement parts for older models.
Frequently Repaired Parts:
→ Mower blades: These parts experience wear and tear and require regular sharpening or replacement.
→ Belts: The drive belts for the mower deck and other attachments may need replacement due to stretching or damage.
→ Spark plugs: These require periodic cleaning or replacement.
→ Fuel filters: They can become clogged and need replacement.
→ Battery: Over time, batteries may lose their ability to hold a charge and require replacement.
Access the Official OEM 2002 John Deere Sabre Yard Garden Tractor Repair Guide with a Click - Buy and Download via PayPal on RepairLoader. Today! After successfully completing your payment, you will receive an email with all the necessary download information for your original John Deere Sabre repair guide. The download link will become accessible on the checkout page. Be sure to save the manual within three days of download.
§
