Yamaha YZF-R6(V) 2006 Service Manual (P/N 2C0-28197-E0)

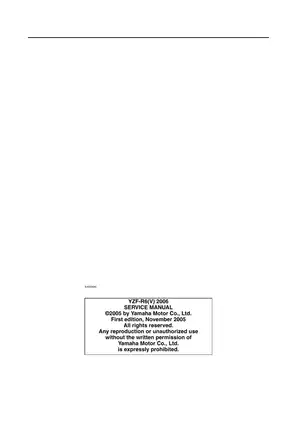

Yamaha factory service publication P/N 2C0-28197-E0, first edition, November 2005, covers the 2006 YZF-R6(V): 2C01 (EUR/ZAF), 2C02 (BEL/FRA), and 2C04 (AUS).

Searchable PDF and Wiring Diagram Sheets

Text search and diagram detail: Searchable text and embedded chapter and section bookmarks support navigation through the service chapters. Dense circuit diagrams require zooming to read small wiring and connector labels.

One printable PDF contains 444 pages: the 442-page manual document, including covers, preliminary material and blank pages, plus two appended full wiring-diagram sheets in monochrome and color.

Engine, Chassis and YCC-T Workshop Coverage

These selected coverage highlights show part of the manual’s scope. Other documented topics include instrument-display settings and headlight-beam adjustment.

• Engine and transmission: Step-by-step procedures for engine removal, camshaft and timing-system work, cylinder-head and valve service, clutch repair, crankcase separation, and transmission work.

• Brakes and chassis: Wheel service, brake-caliper and master-cylinder repair, hydraulic bleeding, fork disassembly and reassembly, steering-head adjustment, swingarm inspection, and chain-drive work.

• YCC-T and fuel injection: Primary and secondary injector service, fuel-pressure testing, throttle-body synchronization, throttle-position-sensor adjustment, CO adjustment, EXUP checks, and air-induction testing.

• Periodic checks: Valve-clearance adjustment, compression and oil-pressure testing, clutch and throttle-cable adjustment, suspension settings, and final operational checks.

• Cooling system: Radiator and cap testing, oil-cooler inspection, thermostat checking, and water-pump removal, inspection, and installation.

• Electrical diagnosis: System-specific circuit diagrams, FI and immobilizer fault-code tables, diagnostic-mode procedures, sensor and relay tests, and symptom-based troubleshooting.

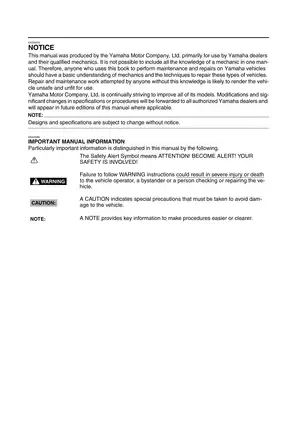

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes basic mechanical knowledge and familiarity with motorcycle repair techniques.

Market Coverage and Factory Job Charts

This publication is specific to the listed YZF-R6(V) variants. Electrical specifications distinguish the TBDF21/DENSO ECU for EUR, ZAF, and AUS from the TBDF23/DENSO unit for BEL and FRA. Confirm the frame model label before parts ordering or diagnosis.

The nine chapters run from identification and specifications through mechanical repair and electrical diagnosis. The final troubleshooting chapter groups starting, idle, performance, shifting, clutch, temperature, braking, suspension, handling, and lighting/signaling faults.

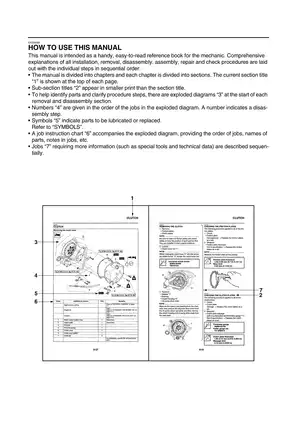

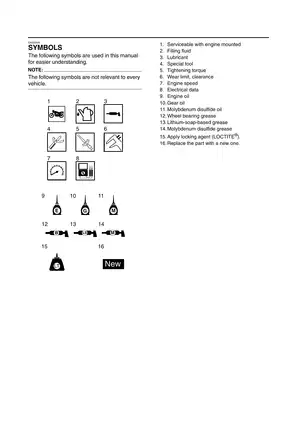

Exploded views and job instruction charts bring together parts, job order, replacement items, lubricants, special tools, and torque data. This supports planning disassembly and reassembly with the related workshop requirements in view.

Internal Engine Repair and Starting Components

Internal repair coverage extends to valve-seat inspection, generator and starter-clutch work, the pickup rotor, oil pump and relief valve, pistons, connecting rods, crankshaft bearings, and shift mechanisms.

Inspection limits, lubrication points, tightening sequences, bearing-selection data, and assembly notes remain tied to the relevant component. The electric-starter section also documents motor disassembly, commutator and brush checks, and reassembly.

Wheel, Brake and Suspension Detail

Wheel procedures include bearing replacement and static balancing. Brake coverage adds disc inspection, while fork procedures extend to internal disassembly and bleeding. Steering-head bearing service, rear-suspension linkage, swingarm bearings, and chain and sprocket inspection are documented separately.

The nitrogen-charged rear shock must not be opened. Its coverage concerns handling, external inspection, removal and installation, and associated linkage service rather than internal damper rebuilding.

YCC-T and Fuel-System Service Limits

The YCC-T explanation covers the throttle servo motor, separate throttle-position sensors for the cable pulley and throttle valves, ECU inputs, control mapping, and emergency-stop logic.

Fuel-system procedures address the tank and pump, air-filter case, injector rails, throttle-body joints, fuel passages, and sensor settings. Meter-based CO adjustment and diagnostic-mode access are documented.

The throttle bodies must not be disassembled. The documented work concerns injectors, passage cleaning, testing, sensors, joints, and installation.

Circuit Diagnosis and Immobilizer Requirements

Electrical fault finding is divided into ignition, electric starting, charging, lighting, signaling, cooling, fuel injection, fuel pump, and immobilizer circuits.

FI troubleshooting links displayed fault codes to probable causes, diagnostic codes, coupler and wire checks, component tests, and reinstatement methods. The immobilizer section adds self-diagnosis codes and part-replacement/key-registration requirements, helping identify which registration work accompanies a particular replacement.

Diagrams, Special Tools and Reference Tables

Named references include the YCC-T system and control outlines, engine oil lubrication chart, cooling system diagrams, cable-routing layouts, and full YZF-R6(V) wiring diagram. Electrical-component location views, connector details, and wire-color identification support circuit tracing.

The special-tool index lists Yamaha 90890-series numbers and applicable YM/YU equivalents. Examples include the 90890-03094 vacuum gauge / YU-44456 synchronizer and 90890-03120 oil-pressure gauge set with 90890-03139 adapter.

Fork tools include the 90890-01441 spring compressor and YM-A8703 damping-rod bleeding tool set. Fuel-pressure testing specifies the 90890-03153 gauge with 90890-03176 adapter.

Engine, chassis, and electrical tables supply fluid capacities, lubrication requirements, clearances, wear limits, pressure-test data, suspension settings, and electrical values. General ISO-pitch fastener torques are separated from component-specific torque tables and tightening sequences.

Workshop Handling Cautions

During valve and camshaft work, the manual flags the risk of the timing chain or a valve pad falling into the crankcase. Bearing cautions address outer-race loading during installation and surface damage from spinning bearings with compressed air.

Support the motorcycle on suitable stands for wheel, steering, suspension, or engine work; account for residual fuel-line pressure, open the cooling system only when cold, and verify brake operation after repair or bleeding.

Valve-Clearance and Fuel-Pressure Examples

The valve-adjustment section specifies cold clearances of 0.12–0.19 mm for intake valves and 0.16–0.23 mm for exhaust valves, measured with the engine at room temperature.

For the fuel-pressure check, the manual gives 324 kPa (46.1 psi) with the engine running. The procedure identifies the gauge connection and adapter used for that test.
