Isuzu 4JA1, 4JH1-TC engine workshop manual

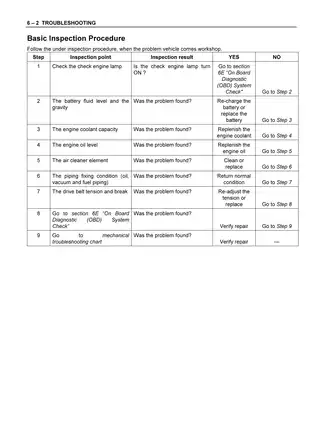

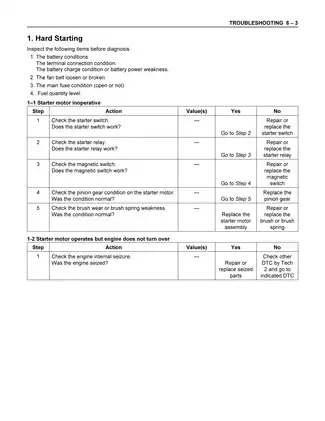

Manual Preview
Sample pages from the Isuzu 4JA1, 4JH1-TC engine workshop manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Isuzu Motors Ltd
- Isuzu 4JA1 engine
- Isuzu 4JH1-TC engine
Professional Workshop Service Manual & Technical Specifications
Isuzu 4JA1 / 4JH1-TC — Engine Workshop Manual (Doc No. 30307)
This engine-only workshop manual is built around two specific Isuzu diesel families—4JA1 and 4JH1-TC—and uses a sectioned, OEM-style layout to keep reference material tightly grouped by system. The included pages show a dedicated engine cover set and a large symptom-indexed reference section that spans starting, charging, fuel/air, turbo, and noise-related categories.
Engine Family Scope
The document header identifies the covered engines as:
- 4JA1
- 4JH1-TC
What the Included Pages Show

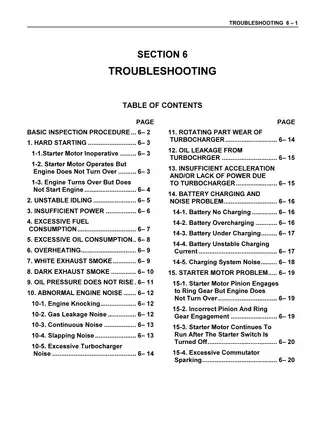

A dedicated engine cover page labels the set as a Workshop Manual for ENGINE 4JA1/4JH1-TC, and the section pages included in the preview show a structured, page-numbered symptom index with multi-system coverage (starter, charging, turbo, fuel/air, exhaust, and abnormal-noise categories).
Section Map Signals (from the included pages)
The visible section is organized with a detailed contents grid and breaks references into topic clusters such as:
- hard-start / no-start categories
- starter motor and charging/alternator reference pages
- turbocharger-related reference pages
- fuel delivery / injection / air intake / exhaust symptom groups
- smoke-related categories (black/white exhaust smoke)
- abnormal engine-noise groupings (including knocking and tapping references)
Edition markers & included reference pages
- Workshop Manual header for ENGINE 4JA1/4JH1-TC
- Section-labeled chapter pages with page-indexed contents
- Symptom-index layout spanning fuel/air/exhaust/turbo domains
- Starter motor and charging/alternator reference group present
- Abnormal-noise categories grouped as their own references
- Multi-page tables and grids used for quick lookups by symptom label
Compact technical table
| Reference artifact | What’s shown inside | Why it helps |
|---|---|---|
| Engine header page | “ENGINE 4JA1/4JH1-TC” workshop set | Immediate engine-code match |
| Section coding | Section-labeled chapter pages | Keeps content grouped by domain |
| Starter/charging grouping | Starter motor + alternator/charging references | Electrical coverage signal |
| Turbo domain | Turbocharger reference group | Forced-induction coverage signal |
| Fuel/air/exhaust clusters | Injection + intake + exhaust symptom groups | Clear system boundaries |
| Noise & smoke categories | Abnormal noise + smoke groupings | Mechanical condition reference depth |
Who This Manual Fits Best
If your buying decision starts with the engine code and you want documentation that separates references by system domain (electrical starting/charging, turbo, fuel/air, exhaust, and mechanical condition signals), this set is aligned with that “engine-family first” approach.
