Yamaha YZ450F(A) 2011 Owner's Service Manual (P/N 33D-28199-81-E0)

225 Pages • 1 Printable PDF (English) • Download

4.7starstarstarstarstar_half(3)
$18.33 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: YZ450F(A), YZ450F

Sub-models / Variants: USA and Canada — YZ450FA (33D5), Europe — YZ450F (33D6), Australia and New Zealand — YZ450FA (33D8), South Africa — YZ450F (33D8)

Model Year: 2011


  • Engine displacement: 449.7 cm3

  • Engine type: Liquid-cooled 4-stroke, DOHC, single cylinder

  • Bore x stroke: 97.0 x 60.8 mm

  • Compression ratio: 12.5:1

  • Transmission type: Constant mesh, 5-speed

  • Starter type: Primary kickstarter

  • Front tire size: 80/100-21 51M

  • Rear tire size: 120/80-19 63M (USA, CDN, AUS, NZ, ZA) or 110/90-19 62M (EUROPE)

  • Fuel type: Premium unleaded gasoline only

Yamaha Manual Features & Selected Content Preview

Yamaha's 2011 YZ450F(A) Owner's Service Manual (P/N 33D-28199-81-E0) covers the U.S., Canadian, European, Australian, New Zealand, and South African versions of this competition model. Its eight chapters cover operation, regular inspection, engine and chassis service, fuel injection diagnostics, and tuning.

PDF Search, Bookmarks, and Wiring Detail

Text search and navigation: The service text is searchable, with bookmarks for the chapters and their sections. The opening operating reminder, text inside some vehicle label illustrations, and the valve pad selection table entries are excluded from text search. Small wiring and connector labels are legible when enlarged.

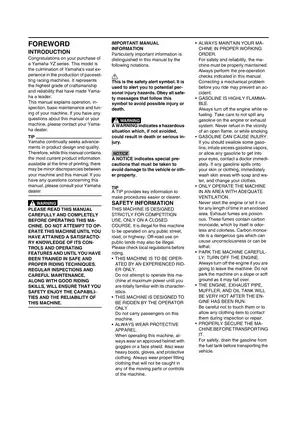

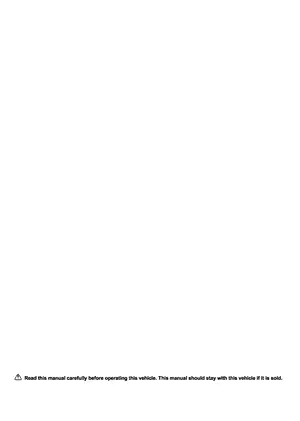

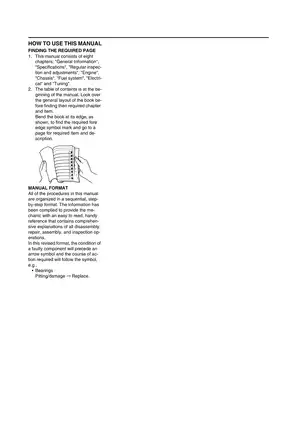

The download is one printable English PDF with 225 pages. The total includes 218 numbered chapter pages and seven opening pages: the cover, an operating reminder, three introductory and how-to-use pages, and two contents pages.


Engine, Fuel Injection, and Chassis Service

These selected service topics show the range of the manual. It also covers starting and break-in, along with sprocket selection for different track conditions.

  • Engine repair: Engine removal and installation, cylinder-head service, camshaft timing, crankcase splitting, and cylinder and piston wear checks.

  • Transmission and clutch: Wet-clutch repair, gear and shift-fork inspection, shift-cam service, and kick-shaft and shift-shaft procedures.

  • Fuel system: Throttle body and injector service, fuel pump removal, fuel pressure testing, and throttle position sensor adjustment.

  • Electrical diagnosis: A wiring diagram, ignition and AC magneto tests, sensor checks, and fault code tables for the electronic fuel injection system.

  • Chassis and suspension: Front fork rebuilds, brake caliper and master cylinder overhaul, steering bearing replacement, and swingarm service.

  • Factory reference data: Maintenance intervals, component-specific torque tables, fluid capacities, wear limits, lubrication diagrams, and cable routing diagrams.

Yamaha specifies prior servicing knowledge for the repair chapters and valve clearance work. The manual suits mechanics and experienced owners who already have those skills.

Cylinder Head, Lubrication, and Cooling

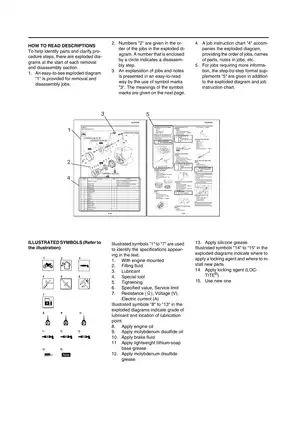

Exploded diagrams and job instruction charts accompany the engine procedures. The manual gives step-by-step instructions for checking and adjusting valve clearance, with intake and exhaust pad selection tables. Cylinder-head coverage includes the staged bolt-tightening sequence, decompression-system checks, and inspection of the titanium valves.

The camshaft section warns that uneven cap-bolt tightening can damage the cylinder head, camshaft caps, and camshaft. Crankshaft and balancer service includes installation tools and component-specific torque specifications.

Oil pump inspection covers rotor clearances. Water pump service covers the impeller shaft, bearings, and seals. The maintenance chapter includes radiator cap and cooling system pressure checks.

Fuel Injection Diagnostics and Regional Differences

The troubleshooting section cross-references FI fault codes with sensor operation tables, electrical test specifications, and component checks. These references help distinguish a connector or harness fault from a failed sensor before replacing parts.

Yamaha's FI diagnostic tool YU-03182/90890-03182 and sub-wire harness YU-03212/90890-03212 require an external 12 V battery for this model. The diagnostic section covers fault history retrieval and erasure, injector and ignition coil actuation, and Power Tuner setting history and map erasure. The lean-angle sensor is built into the ECU.

Regional differences: ECU models are 33D0 for the U.S. and Canada, 33D4 for Europe, and 33D6 for Australia, New Zealand, and South Africa. Silencer packing replacement has separate procedures for the bolted U.S. and Canadian assembly and the riveted assembly used in the other covered markets.

Front Fork Rebuilds and Rear Shock Tuning

Front fork rebuild procedures cover the damper assembly, base valve, bushings, and seals. Yamaha calls out contamination control during fork service and air release before base valve removal. The tuning charts link handling symptoms to spring selection, fork oil quantity, and rebound and compression damping.

Rear shock coverage includes removal, spring replacement, bearing service, and separate low- and high-speed compression damping adjustments. Internal damper overhaul is outside that scope. Yamaha directs technicians to leave the high-pressure nitrogen cylinder and reservoir assembled.

Sample Valve Clearances, Coolant Capacity, and Fuel Pressure

With the engine cold, valve clearance is 0.10–0.15 mm on the intake side and 0.20–0.25 mm on the exhaust side. The cooling system capacity is 1.13 L, including all coolant passages.

The fuel pressure test specifies 312–328 kPa with the engine running. That range is the reference for checking pressure regulator operation.
