Mercedes-Benz 300TE 1989 Service & Repair Manual Set

1,122 Pages • ZIP Download: 76 Printable PDFs (English)

4.5starstarstarstarstar_half(2)
$18.13 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mercedes Models Covered & Key Technical Specifications

Models: 190E, 260E, 300E, 300CE, 300SE, 300SEL, 300TE

Models & Model Codes:

190E — Body: 201.029

260E — Body: 124.026; engine: 103.940

300E — Body: 124.030; engine: 103.983

300CE — Engine: 103.983

300SE — Body: 126.024; engine: 103.981

300SEL — Body: 126.025; engine: 103.981

300TE — Body: 124.090; engine: 103.983

Sub-models / Variants: 2.6L 6-Cylinder, 3.0L 6-Cylinder; shared system coverage: 4.2L (420SEL, engine 116.965), 5.6L (560SL, engine 117.967; 560SEL and 560SEC, engine 117.968)

Model Years: 1987–1989 (1987, 1988, 1989)

Model Year VIN Codes (10th character): 1987 (H), 1988 (J), 1989 (K)

Automatic transmission variants: 190E and 260E — W4A020; 300E, 300CE, 300SE, 300SEL and 300TE — W4A040

Manual transmission service coverage: 190E — 5-speed GL76/27F-5; 260E and 300 Series — 5-speed GL76/27A-5 in the shared servicing article


  • Engine displacement: 2.6L (158.6 cubic inches) and 3.0L (180.8 cubic inches)

  • Horsepower: 158 HP @ 5800 RPM (2.6L), 177 HP @ 5700 RPM (3.0L)

  • Compression ratio: 9.2:1 (2.6L and 3.0L 6-Cylinder)

  • Fuel system: Fuel Injection

  • A/C Compressor types: Nippondenso 10-Cylinder

Mercedes Manual Features & Selected Content Preview

Publication Pages
Mitchell repair-information compilation for the 1989 Mercedes-Benz 300TE, body 124.090 / engine 103.983, with shared Mercedes-Benz system articles and general shop references 643
Motorist Assurance Program: A/C-Heater System Uniform Inspection Guidelines, January 2002 47
Motorist Assurance Program: Brake System Uniform Inspection Guidelines, January 2002 39
Motorist Assurance Program: Drivetrain Systems Uniform Inspection Guidelines, January 2002 48
Motorist Assurance Program: Electrical System Uniform Inspection Guidelines, January 2002 61
Motorist Assurance Program: Engine Systems Uniform Inspection Guidelines, January 2002 124
Motorist Assurance Program: Exhaust System Uniform Inspection Guidelines, January 2002 10
Motorist Assurance Program: Steering Uniform Inspection Guidelines, January 2002 75
Motorist Assurance Program: Suspension Uniform Inspection Guidelines, January 2002 75

The Mitchell articles combine vehicle-specific repair information with shared Mercedes-Benz system material. The MAP publications add all-makes inspection and customer-communication standards rather than additional 300TE repair procedures.

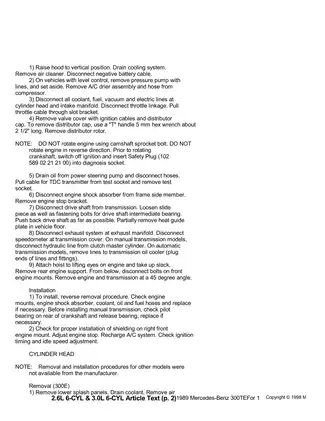

Engine coverage: Engine and cylinder-head removal and installation are detailed for the 300E; corresponding 300TE-specific procedures are not supplied. The internal-engine repair article covers the 103-series six-cylinders. Shared 420 and 560 material does not extend that coverage to V8 internal-engine overhaul.

Transmission coverage: Servicing and symptom diagnosis are included. The separate W4A020/W4A040 overhaul article referenced for vacuum-control tests, hydraulic-pressure tests, and road tests is not included.

Searchable Article Text and Wiring Diagram Detail

Search, navigation, and small labels: Article prose and captions have searchable PDF text; lettering within the wiring-diagram images is not searchable. There are no embedded PDF bookmarks. Small connector numbers and wire-color abbreviations require zooming, and occasional printed footers overlap text near the bottom of a page.

The ZIP download contains 76 printable English PDFs totaling 1,122 pages, including the eight MAP publications listed above. The Mitchell material occupies 68 article files; the MAP publications account for 479 pages already included in the total. The repair articles carry 1998 Mitchell copyright notices and 2012 print timestamps, with many technical figures credited to Mercedes-Benz of North America.


103-Series Repair, CIS-E Diagnosis, and Chassis Service

These selected coverage highlights summarize the main repair areas. Additional topics include cruise-control testing and rear-wiper motor service.

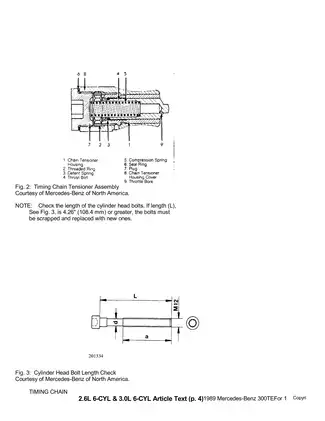

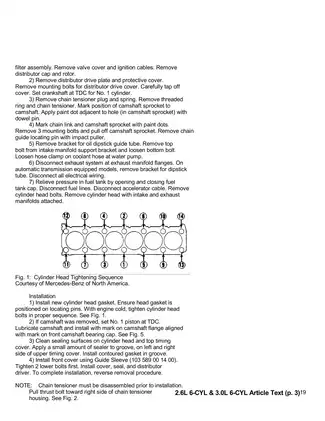

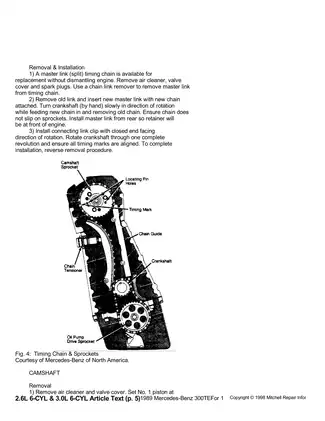

  • Engine repair: Step-by-step timing-chain replacement, camshaft timing checks and adjustment, valve-train service, piston/rod and crankshaft-bearing work, oil-pump and pan removal, and water-pump replacement.

  • CIS-E and EZL diagnosis: Basic mechanical and fuel-pressure checks, flash/impulse codes, no-code symptom diagnosis, sensor-range charts, lambda control, electro-hydraulic actuator testing, idle control, and emissions systems.

  • Transmission and rear axle: Automatic-transmission removal, fluid service, linkage and modulating-pressure adjustment, plus standard and limited-slip differential teardown, CV-joint service, pinion setup, backlash, and shim selection.

  • Brakes and ABS: Four-wheel disc brake repair, caliper overhaul, parking-brake adjustment, Bosch three-channel ABS testing, wheel-speed sensor service, and brake specifications.

  • Steering and suspension: Power-steering pump and gear overhaul, front and rear suspension procedures, automatic level-control pressure tests, ride-height checks, and wheel-alignment data.

  • Climate control: Automatic climate-control diagnosis, temperature-sensor resistance tables, vacuum tests and layouts, compressor servicing, and model-group wiring diagrams.

  • Electrical systems and restraints: SRS diagnosis, alternator testing and overhaul, starter troubleshooting and exploded views, general parasitic-load testing, component locations, and 300TE body-circuit diagrams.

The pressure tests, SRS diagnosis, and internal engine and axle work suit trained technicians or experienced owners with the specified test equipment and workshop facilities.

Engine Detail and Driveability Fault Finding

The mechanical article extends cylinder-head work to rocker arms, valve springs, stem seals, guides, and seats. Component-specific torque tables, wear limits, clearances, and capacity data accompany the procedures.

The engine-performance articles connect preliminary checks, symptom diagnosis, and individual component tests, supporting investigation of starting, idle, and power-loss complaints. Sensor-range charts also address out-of-calibration sensors that may cause driveability problems without setting a trouble code.

Named equipment includes Fuel Pressure Gauge 100 589 00 21 00, Impulse Counter 124 589 19 21 00, Socket Box Tester 124 589 00 21 00, and Protective Plug 102 589 02 21 00.

Chassis Procedures and Diagram Examples

Steering coverage includes VT49, VT61, and ZF61 pump overhaul. Rear-axle instructions explain pinion depth, bearing preload, and differential adjustment. Overtightening the pinion flange nut changes the collapsible-spacer setting and can leave incorrect bearing preload, requiring spacer replacement.

Representative illustrations include the 260E/300CE/300TE CIS-E wiring diagram, 260E/300-series ABS wiring diagram, 300TE automatic A/C-heater diagram, cooling-fan circuit, driver power-seat circuit with memory, and automatic level-control rear-suspension layout. Component-location views, ABS sensor cutaways, diagnostic charts, and exploded rear-axle views supplement these diagrams.

Climate-Control Applications and Service Planning

The Mercedes compressor application is Nippondenso. General compressor chapters additionally cover Atsugi, Bosch, Diesel Kiki, Harrison, Hitachi, Matsushita, and Sanden units; these are general references rather than alternative 300TE fitments.

The automatic climate article supplies four model-group wiring diagrams. Its detailed component removal and installation section and system functional test are labeled for the 420SEL and 560 series.

The Nippondenso procedure warns against distorting the clutch pulley or scratching head sealing surfaces, which can affect clutch alignment or cause refrigerant leakage.

Scheduled Services distinguishes normal maintenance from additional severe-service requirements. Service labor-time tables, fluid specifications, and capacities support planning scheduled work. The parasitic-load reference contains general procedures and GM examples rather than Mercedes-specific current-draw limits.

Use approved recovery equipment for the R-12 system, disable the SRS as specified, and support the vehicle securely before brake, suspension, steering, driveline, or underbody work.

Examples from the Six-Cylinder Ignition Tables

For the six-cylinder applications, the ignition-coil table lists primary resistance of 0.3–0.6 ohm and secondary resistance of 7,000–13,000 ohms, both at 68°F (20°C).

The spark-plug table specifies a 0.031 in. (0.80 mm) gap and distinguishes six-cylinder plug types and tightening specifications from the V8 applications.
