1992 Hitachi EX25, EX35, EX40 Excavator Technical Manual (KM581E-01, T581-01)

This Hitachi technical manual (document codes KM581E-01, T581-01) covers the 1992 EX25, EX35, and EX40 excavators, including Canopy and Cabin configurations. It combines component construction and operation with maintenance adjustments, operational performance tests, and hydraulic and electrical troubleshooting.

• Engine service: Valve-clearance inspection and adjustment, injection-nozzle testing, injection-timing adjustment, and injection-pump test data for the covered Isuzu engines.

• Hydraulic components: Construction and operating explanations for main pumps, control valves, pilot valves, pilot shut-off valves, and travel-speed solenoid valves.

• Travel and undercarriage: Travel devices, planetary reduction gears, center joints, swing bearings, track links, and track adjusters, with explanations of motor and brake-valve operation.

• Performance testing: Engine-speed and compression checks, travel and swing tests, cylinder cycle-time and drift checks, and hydraulic pressure-setting procedures.

• Fault diagnosis: Hydraulic symptom flowcharts and electrical checks for starting faults, gauges, warning indicators, the buzzer, and the hour meter.

• Diagrams and machine data: Model-specific wiring and hydraulic schematics, connector-terminal charts, working ranges, lifting capacities, dimensions, operating weights, and service refill tables.

This manual is suited to mechanics familiar with excavator hydraulics and electrical testing, with access to pressure gauges, a compression tester, and the specified test fittings.

Engine Maintenance and Fuel-System Adjustment

Engine coverage includes radiator and air-cleaner function, followed by separate valve-clearance procedures for the Isuzu 3KR1, 3KR2, and 4JC1 engines. Injection-nozzle tests address opening pressure, leakage, chatter, and spray pattern, with illustrations of acceptable and defective spray behavior.

Injection-timing adjustment differs by engine: the smaller engines use pump shims, while the EX40 procedure addresses pump-body position. Injection-pump adjustment data distinguish engine-mounted bench testing for the EX25/EX35 from detached-pump testing for the EX40.

Detailed injection-pump and governor work refers to separate Isuzu engine repair literature. The fuel-consumption charts distinguish load conditions and explain why calculated consumption differs from actual machine use.

Hydraulic Construction and Fault Isolation

The documentation focuses on the construction and operation of main pumps, control valves, swing devices, and piping layouts. The EX25 uses a tandem gear-pump arrangement; the EX35 and EX40 use a variable-displacement main pump with a pilot gear pump.

Control-valve illustrations identify another important difference: the EX35 omits the Boom II section shown for the EX25 and EX40. Valve-plate cross-sections, swing reduction device views, and the Cross Section of Front/Swing Pilot Valve explain internal component relationships and oil flow.

For a slow or weak boom, the troubleshooting charts distinguish pilot-pressure problems, restricted spool movement, relief-valve faults, and cylinder leakage. These checks help narrow the cause before a technician selects a repair or replaces major hydraulic components.

Operational Tests and Pressure Checks

Performance-test sections provide preparation requirements, measurement methods, standard values, and allowable limits. Coverage includes swing-bearing play measured with a dial gauge, travel deviation, swing drift, and individual hydraulic-cylinder performance.

The high-speed travel pilot-pressure test identifies pressure gauge ST-6932 and adapter ST-6290. Main relief-pressure checks specify gauge ST-6933. Swing-motor overload relief testing is covered, with the EX35 and EX40 valves identified as nonadjustable.

Hydraulic testing involves pressurized oil and raised equipment; follow the manual’s pressure-release and machine-support precautions.

Electrical Circuits and Harness Diagnosis

The Electric Wiring Diagrams include Connector Terminal Usage Charts for tracing model-specific circuits. Electrical troubleshooting also addresses optional auto-idle on the EX35/EX40 and separates monitor-panel, sensor, switch, relay, and harness faults.

The Wiring Harness Test section covers continuity and voltage checks, with lamp harness ST-7126 listed as alternative test equipment. Its connector-handling precautions address the risk of damaging harness wires by pulling connectors apart by the wiring.

A Preview of Refill and Valve-Clearance Data

Refill data: Engine-oil refill capacity is listed as 5.5 L for the EX25 and EX35. The EX40 hydraulic-system capacity is 64 L, with reservoir capacity listed separately.

Valve-clearance data: The cold-engine standard is 0.25 mm for the EX25/EX35 and 0.4 mm for the EX40, accompanied by model-specific measurement and adjustment procedures.

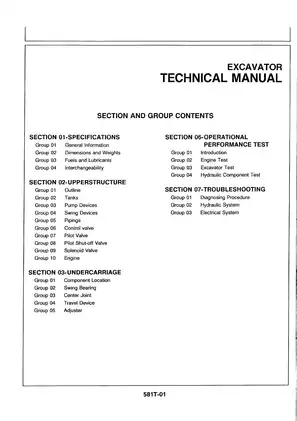

Bookmarked PDF and Diagram Detail

Search, navigation, and small labels: PDF text search is not available. Embedded bookmarks provide access to sections and subtopics. Small wiring labels require zooming, and some fine lettering remains soft.

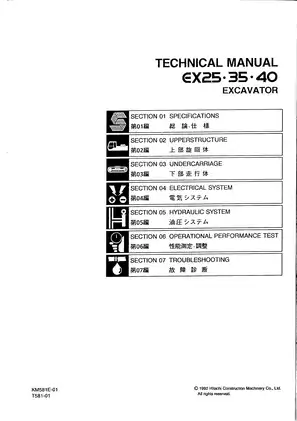

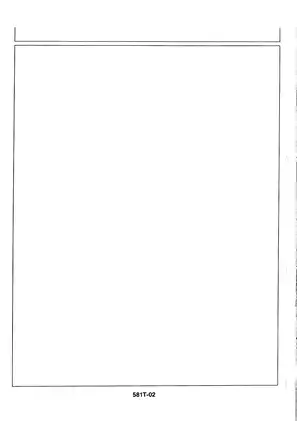

One printable, English-language 267-page PDF, including the original front cover, title page, final imprint page, and 32 otherwise blank pages.
