2013 Yamaha YZ450FD / YZ450F Owner's Service Manual (P/N LIT-11626-26-29)

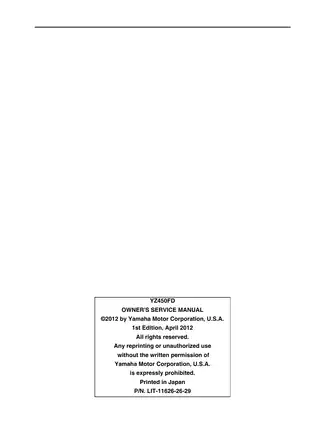

Yamaha's 2013 YZ450FD Owner's Service Manual covers the YZ450FD and YZ450F market variants listed above, including US, Canadian, European, Australian, New Zealand, and South African configurations. This is P/N LIT-11626-26-29, first edition, April 2012, for the closed-course competition model.

• Engine repair: Engine removal, camshaft timing, cylinder-head and piston inspection, crankcase separation, and crankshaft installation.

• Clutch and transmission: Wet multiple-disc clutch service, gear inspection, and removal and installation of the shift cam and shift forks.

• Fuel injection: Keihin throttle-body and injector service, fuel-pump removal, fuel-pressure testing, and throttle position sensor replacement and adjustment.

• Electrical diagnosis: AC magneto and ignition-coil tests, ECU fault-code troubleshooting, sensor checks, and the wiring diagram with connector views.

• Suspension and steering: Telescopic front-fork disassembly, rear shock spring and bearing replacement, swingarm linkage service, and steering-bearing inspection.

• Brakes and wheels: Caliper and master-cylinder disassembly, brake bleeding, pad replacement, wheel-bearing service, and drive-chain inspection.

• Cooling and lubrication: Radiator and cooling-system pressure checks, water-pump seal replacement, oil-pump clearance checks, and lubrication diagrams.

The repair sections assume existing Yamaha motorcycle service knowledge; valve adjustment and internal mechanical or electrical work require prior servicing skills.

Engine Inspection and Assembly

Operating guidance, race-based maintenance intervals, and pre-ride checklists accompany the repair procedures.

Valve-clearance adjustment includes separate intake and exhaust pad selection tables. Camshaft inspection covers journal clearance, lobe wear, the decompression mechanism, and timing-chain tensioner operation. The cylinder-head section documents a staged torque-and-angle tightening procedure.

The valve section distinguishes seat lapping from valve reuse: titanium intake and exhaust valves used to lap the seats must be replaced. It also separates the requirements for cylinder-head replacement from those for valve or guide replacement.

Exploded assembly views accompany drivetrain removal and disassembly. Internal coverage extends to balancer gear alignment, oil-pump rotor inspection, clutch plate wear, transmission engagement dogs, and shift-fork condition, with gear ratios and component wear limits in the specification tables.

Fuel Delivery and ECU Troubleshooting

The FI diagnostic tool YU-03182 / 90890-03182 and sub-wire harness YU-03212 / 90890-03212 are specified for sensor displays, actuator tests, and stored malfunction history. An external battery is required because the machine has no onboard battery.

Fault-code charts connect symptoms to connector, harness, sensor, and ECU checks. This helps distinguish a wiring fault from a failed component before replacement. Separate ignition and fuel-pump troubleshooting charts support starting and running complaints.

The optional GYTR Power Tuner is identified alongside diagnostic functions for its setting history and map erasure. Throttle-body cautions distinguish the factory-set stopper screw from the idle adjustment; disturbing the protected settings can reduce engine performance.

Fork Service, Rear Shock Limits, and Chassis Setup

Front-fork procedures cover seals, bushings, the base valve, damper bleeding, and reassembly checks. Assembly notes explain how a falling damper assembly can damage the internal valve. The tool list identifies the fork seal driver YM-A0948 / 90890-01502.

Rear shock coverage includes removal, inspection, spring replacement, mounting bearings, and preload and damping adjustments. Internal cylinder or nitrogen-reservoir rebuilding is outside this procedure: the manual prohibits dismantling those parts and specifies assembly replacement for oil or gas leaks.

Market-specific tables distinguish final gearing, chassis geometry, rear springs, and suspension settings. Front-fork and rear-shock setting charts relate handling symptoms to adjustment areas. Cable routing diagrams and torque-check points support reassembly.

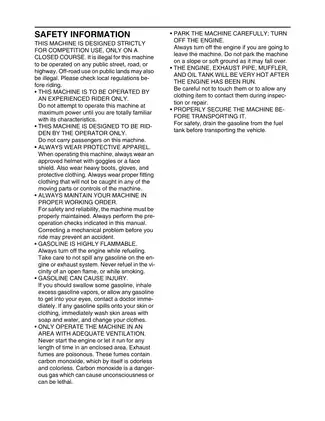

Support the machine securely during chassis work, and observe the rear shock's high-pressure nitrogen handling precautions.

A Preview of Valve, Cooling, and Fastener Specifications

These examples are a small selection from the manual's service tables and assembly sections.

Cold intake valve clearance is 0.10–0.15 mm, and spark plug tightening torque is 13 Nm. Cylinder-head installation uses a multi-stage torque-and-angle procedure whose final rotation totals 150°; that angle is only one part of the documented sequence.

Cooling-system capacity is 1.13 L, including all routes. The chassis torque table specifies 135 Nm for the rear axle nut.

PDF Search, Section Links, and Page Breakdown

Text access and diagram detail: Most service text is searchable, but the warranty body and valve-pad selection tables are not. Section bookmarks provide direct links; chapter-level entries lead to contents pages, and the top contents bookmark opens the cover. Small wiring labels are legible when enlarged.

Supplied as one printable English PDF download with 316 total pages: 299 numbered manual pages, 14 front-matter pages, one additional memo page, one supplemental page, and the back cover. All are included in the total.
