Honda CRF250X Service Manual 2004–2009

Honda’s factory service manual covers the 2004–2009 CRF250X, with regional specifications and procedures for 49-state, Canada, and California versions.

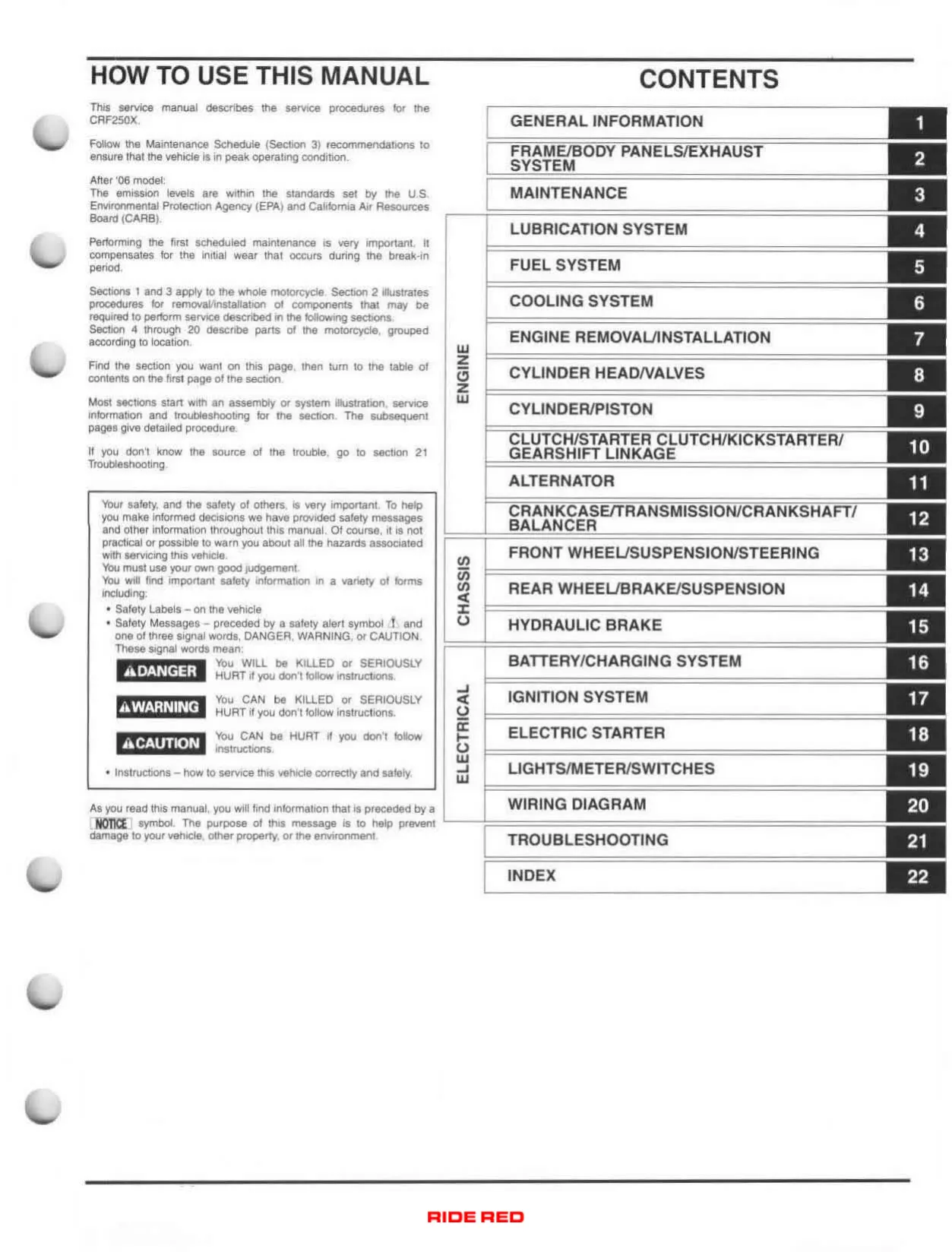

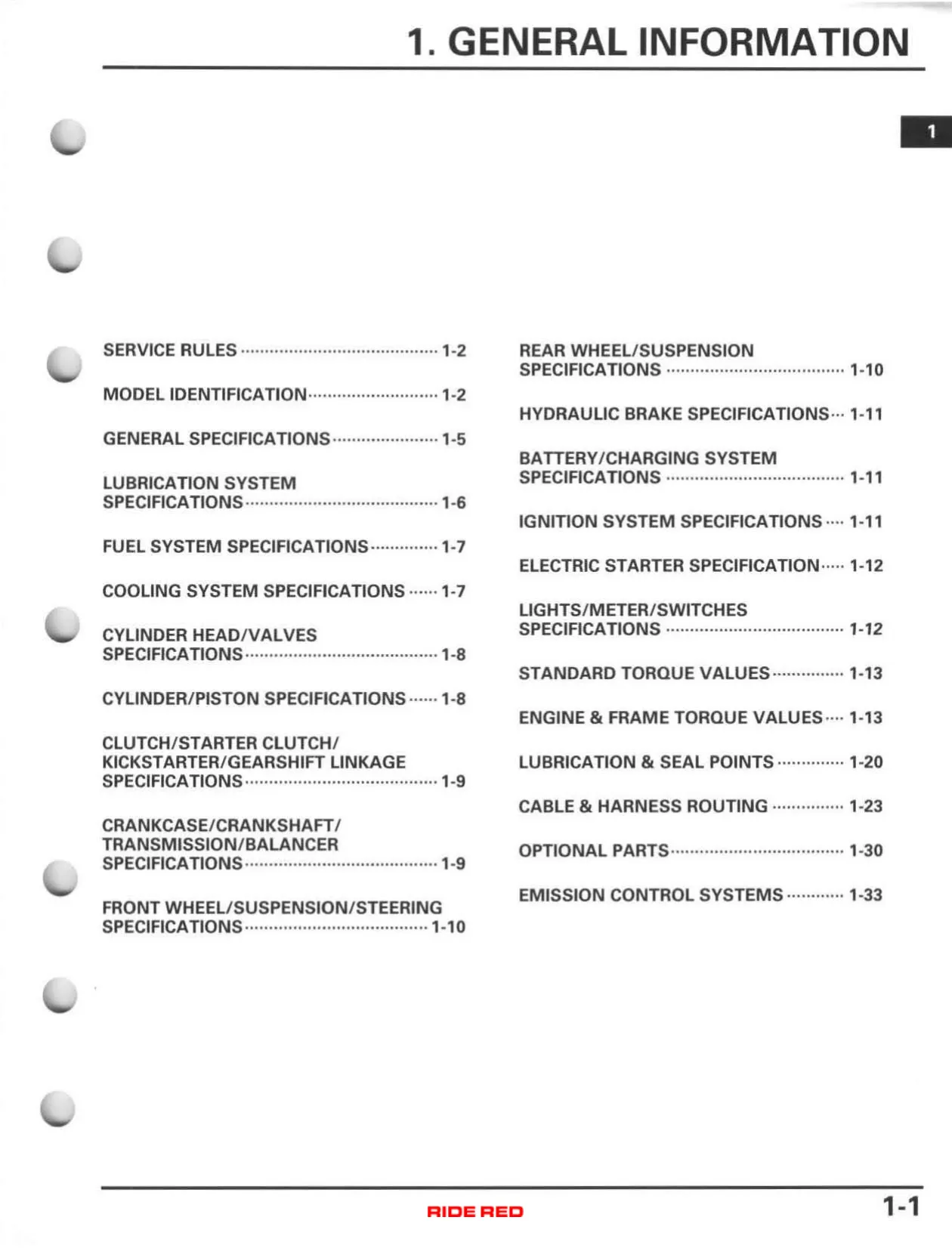

PDF Search, Chapter Bookmarks, and Wiring Detail

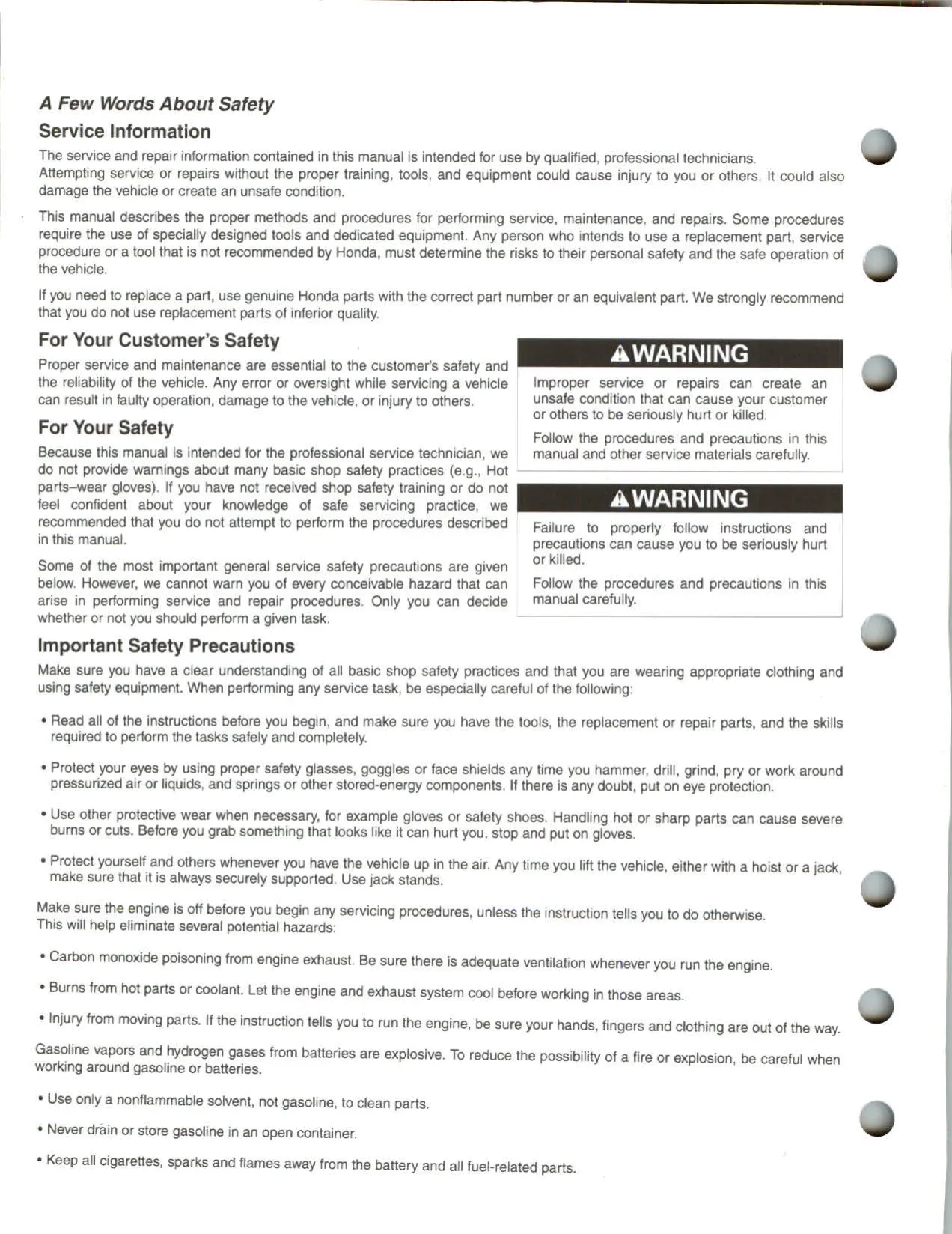

Search and diagram access: OCR text search is available throughout the technical sections, but recognition errors affect tables and wiring labels. The cover and opening safety page have no searchable text. Embedded bookmarks provide chapter navigation and access to both full wiring diagrams, whose small connector labels and wire-color codes require zooming.

Supplied as one printable, English-language PDF with 418 pages total, including the cover, three introductory pages, and 15 memo pages within the chapter sequence.

Engine Rebuilds, Chassis Service, and Electrical Diagnosis

These highlights are a selection of the contents. Other topics include spark-arrester cleaning and tripmeter removal.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, valve-guide replacement, piston-ring service, and camshaft installation.

• Clutch and transmission: Teardown and inspection of the clutch, starter clutch, kickstarter, and gearshift linkage, plus crankshaft, transmission, and balancer service.

• Fuel system: FCR carburetor disassembly, accelerator-pump inspection, float-level checks, pilot-screw adjustment, and throttle-position sensor replacement.

• Cooling and lubrication: Radiator-cap and system pressure tests, coolant replacement and air bleeding, water-pump seal replacement, and oil-pump inspection.

• Suspension and steering: Fork-seal replacement, shock-absorber overhaul, Pro-Link linkage and swingarm bearing service, steering-head bearing replacement, and wheel inspection.

• Hydraulic brakes: Front and rear master-cylinder and caliper rebuilding, pad replacement, disc inspection, and hydraulic-system bleeding.

• Electrical diagnosis: Ignition peak-voltage tests, charging-system troubleshooting, starter-motor overhaul, switch checks, and cable and harness routing drawings.

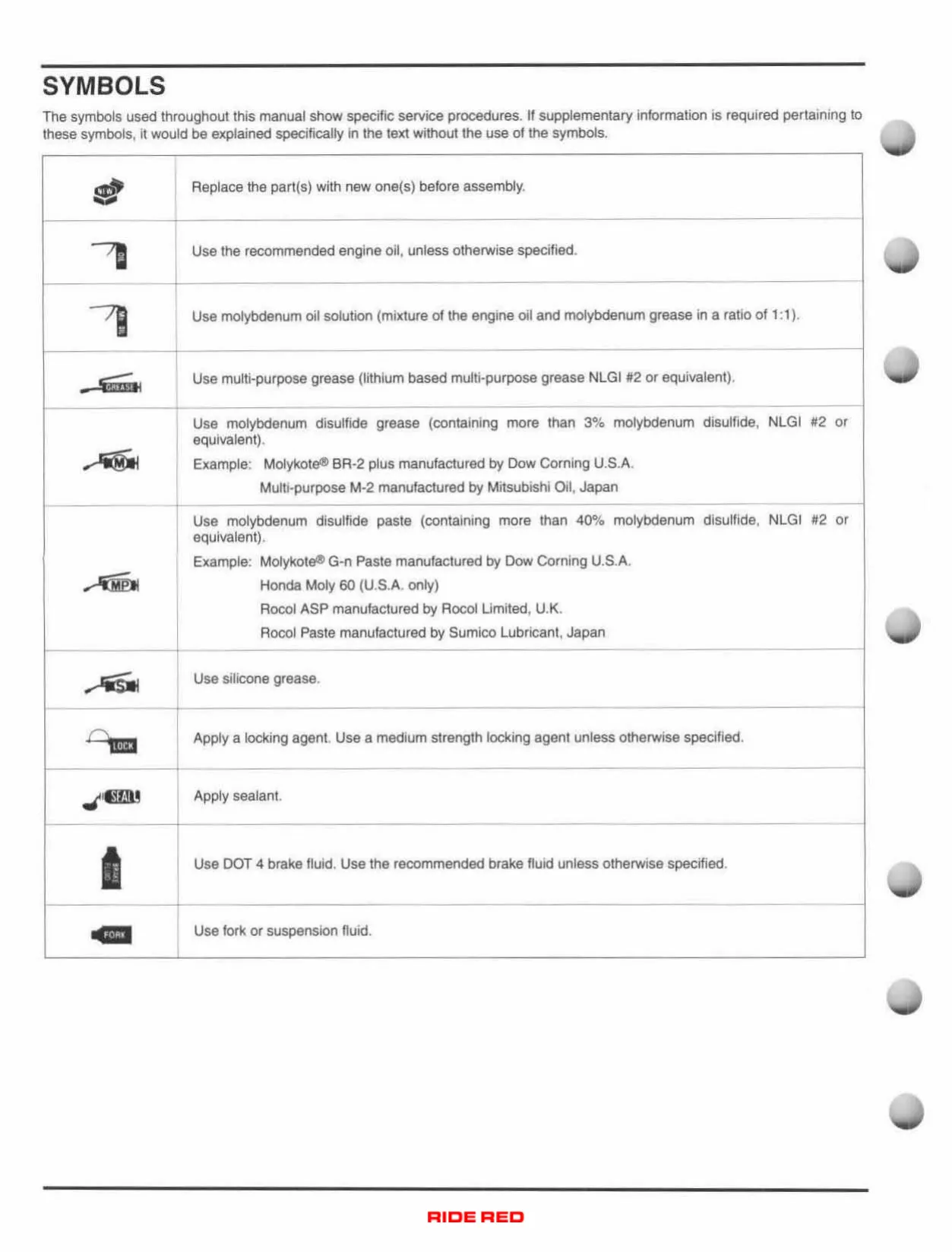

Honda wrote this manual for qualified professional technicians with the proper training, tools, and equipment.

Top-End Repair and Engine-Out Work

The engine-service information distinguishes work that can be performed in the frame from jobs requiring engine removal. Cylinder-head, valve, cylinder, and piston service can be performed in place; crankshaft, transmission, and oil-pump work require engine removal. This distinction helps plan the dismantling and equipment needed for a repair.

The rebuild sections include component wear limits, torque tables, and lubrication and seal-point references. Cylinder-head inspection extends to valve lifters, rocker-arm clearances, valve guides, and valve-seat refacing.

The intake-valve section warns that lapping damages the thin oxide coating on the titanium valves. The oil-filter section separately identifies reversed filter installation as a cause of severe engine damage.

Carburetor Variants and Cooling Tests

Carburetor settings distinguish 49-state/Canada and California configurations. The adjustment sections separate best-idle and idle-drop procedures and include a California-specific high-altitude adjustment. Throttle-position sensor replacement includes resistance-based setting instructions.

PAIR secondary-air coverage includes vacuum testing, check-valve inspection, and air-supply pipe service. The Coolant Gravity Chart and System Flow Pattern accompany coolant-condition checks and cooling-system testing; the Lubrication System Diagram traces the engine’s oil circuit.

Fork, Shock, and Steering References

Chassis data include steering geometry and production-specific fork oil capacities and damper settings. Shock service extends to bladder replacement, damper-rod inspection, air bleeding, and nitrogen charging. For detailed rider-specific preload and damping adjustment, the text refers to the owner’s manual.

Review the manual’s safety precautions and required tooling before teardown; shock-absorber service involves pressurized nitrogen.

Charging, Starting, and Ignition Fault Tracing

System diagrams accompany the charging, ignition, and electric-starter sections. The diagnostic charts help distinguish battery, alternator, regulator/rectifier, wiring, and starter-circuit faults before components are replaced.

Ignition-control-module coverage consists of system diagnosis and unit removal and installation. Ignition timing is factory preset. Separate troubleshooting charts address hard starting, loss of power, poor idle, high-speed performance, and handling problems.

Valve Clearance and Engine-Service Data

Examples from the service data include an intake valve clearance of 0.12 ± 0.03 mm with the engine cold, below 35°C/95°F. The adjustment section explains shim selection and clearance rechecking.

The engine-oil section specifies 0.69 liter at an oil-filter change. Cylinder-head nut data list 39 N·m with oiled threads and seating surfaces, alongside the installation section’s staged tightening requirements.
