Komatsu SAA6D114E-3 Diesel Engine Shop Manual, 2008–2009 (P/N SEN00169-09)

376 Pages • 1 Printable PDF (English) • Download

4.3starstarstarstarstar_border(3)
$14.35 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Komatsu Models Covered & Key Technical Specifications

Models: SAA6D114E-3 (Engine), PC300-7E0, PC300LC-7E0, PC350-7E0, PC350LC-7E0, PC300-8, PC300LC-8, PC350-8, PC350LC-8, WA430-6, D65EX-15E0, D65PX-15E0, D65WX-15E0, D65EX-16, D65PX-16, D65WX-16, GD655-3E0, GD675-3E0

Model Years: 2008–2009


  • Engine displacement: 8.27 liters (8,270 cc)

  • Rated power: 154–194 kW (206–260 HP) at 1,900–2,100 rpm

  • Maximum torque: 989–1,129 Nm (101–115 kgm) at 1,450 rpm

  • Engine type: 6-cylinder diesel

  • Fuel system: HPCR (Electronic control)

  • Coolant capacity: 10.4 liters

  • Lubricating oil capacity: 30–40 liters total, 25–35 liters refill (depending on variant)

  • Turbocharger: Holset HX40 / HX40W

  • Firing order: 1–5–3–6–2–4

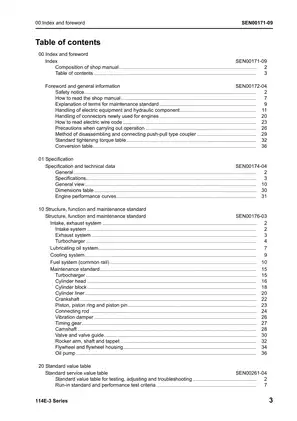

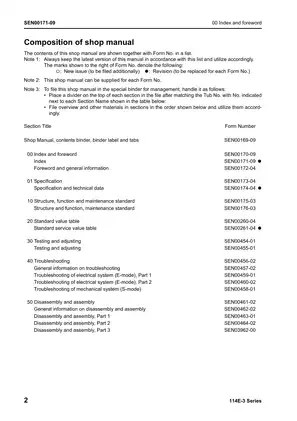

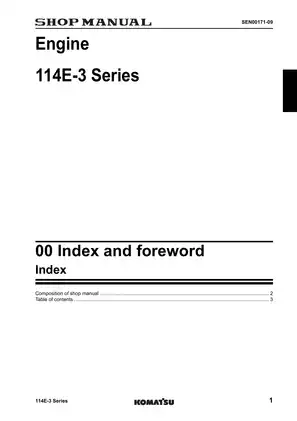

Komatsu Manual Features & Selected Content Preview

This Komatsu 114E-3 Series factory engine shop manual (P/N SEN00169-09), with revisions through January 2009, covers the SAA6D114E-3 in the listed PC300 and PC350 excavators, WA430-6 wheel loader, D65 dozers, and GD655 and GD675 motor graders. Use the separate machine chassis volume for machine-specific engine removal and installation and for chassis repairs.

Search, Bookmarks, and Wiring Diagrams

Finding procedures and reading diagrams: Searchable text and chapter bookmarks help you find specifications, fault codes, and overhaul procedures. Some wiring labels are part of the drawings and are outside text search. Small pin and connector labels on dense diagrams are best read at higher zoom.

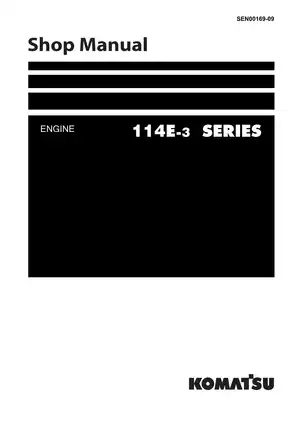

The download contains one printable English PDF with 376 pages, including the original cover, a blank page, and section pages carrying only headers and footers.


Engine Overhaul, Common-Rail Testing, and Fault Diagnosis

These selected topics show the scope of the manual. Other procedures include alternator belt replacement and service connector handling.

  • Engine overhaul: Disassembly and assembly of the cylinder head, valve gear, liners, pistons, connecting rods, crankshaft, camshaft, timing gears, oil pump, flywheel housing, and front and rear seals.
  • Engine testing and adjustment: Boost, compression, blow-by, and lubricating oil pressure tests, plus valve clearance adjustment and no-injection cranking.
  • Common-rail fuel testing: Residual pressure release, supply and rail pressure checks, pressure limiter leakage, injector return-rate measurement, fuel system bleeding, and final leak testing.
  • Supply pump service: Pump head replacement, inspection of plungers, tappets, and cam housing, and replacement of the supply pump’s gear pump.
  • Electrical and mechanical diagnosis: E-mode fault-code procedures, S-mode symptom charts, normal electrical readings, connector and pin references, and related circuit diagrams.
  • Workshop specifications: Application-specific engine data, tightening torques, component inspection and wear limits, run-in standards, and performance test criteria.

The procedures are suited to diesel technicians and experienced engine rebuilders working with an engine repair stand, rated lifting equipment, pressure gauges, electrical T-adapters, and INSITE diagnostic software.

Engine Configurations by Machine

The specification tables separate engine dimensions, performance curves, oil refill amounts, and starter and alternator options by machine group. The PC300 and PC350 excavators and WA430-6 use the Holset HX40W. The D65 and GD applications use the HX40. The WA430-6 is listed with an air compressor.

System drawings show intake and exhaust flow, variable-geometry and wastegate turbocharger operation, lubrication of the power components, coolant routing, and electronically controlled common-rail fuel flow.

Fault Codes, Symptom Charts, and Circuit Tests

The 59 E-mode procedures cross-reference INSITE and Komatsu machine codes. They give controller responses, likely causes, and expected readings for ECM power, engine speed and backup sensors, the combined boost pressure and temperature sensor, rail pressure, the inlet metering valve, all six injector circuits, the lift pump, the intake air heater, KOMNET and CAN communication, derate, and overheat. Drawings include the common-rail pressure sensor circuit and the preheating, starting, and charging circuit.

The 16 S-mode charts cover symptoms such as no-start, poor response, loss of power, black or blue smoke, oil and coolant contamination, overheating, noise, and vibration. For a no-start, the manual provides checks for both fuel delivery and cylinder compression so a technician can narrow the cause before dismantling the engine. Some S-mode checks refer to the applicable chassis volume.

Rebuild Setup, Service Tools, and Inspection Limits

The overhaul sequence starts with the removed engine on a repair stand and runs through final valve adjustment and oil refill. The tool lists identify repair stand 790-501-2001, injector puller 795-799-6700, supply pump remover 795-799-1390, liner puller 795-799-2170, and liner driver 795-799-2110. The test procedures identify the pressure gauges and ECM or sensor T-adapters needed for each check, including reduced-cylinder operation.

Component tables give inspection limits and remedies for the head, block, liners, crankshaft, pistons, rods, vibration damper, timing and valve gear, flywheel, turbocharger, and oil pump. General torque tables cover metric fasteners, eye joints, and split-flange joints. The rebuild instructions flag two specific risks: forcing a liner can damage its sealing O-ring, and mixing up supply pump plungers or reversing their orientation can damage the engine.

Residual common-rail pressure, injector-drive high voltage, rotating components, and heavy lifting require qualified personnel, proper isolation, and rated lifting equipment.

Valve Clearance and Compression Test Examples

For the SAA6D114E-3 applications listed in the manual, the service tables give standard valve clearances of 0.305 mm at the intake and 0.559 mm at the exhaust.

For the same engine, the compression test standard is at least 2.6 MPa, with a permissible limit of 2.1 MPa. Both values apply with the engine oil at 40–60°C and cranking speed at or above 170 rpm.
