Komatsu PC78UU-6 / PC78US-6 Excavator Shop Manual 1998–2007 (P/N SEBM025116)

1,027 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$24.70 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Komatsu Models Covered & Key Technical Specifications

Models: PC78UU-6, PC78US-6

Sub-models / Variants: Blade-less specification, Blade specification, Steel shoe spec, Road liner spec, Rubber shoe spec

Model Years: 1998–2007 (1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007)

Serial Numbers: PC78UU-6: 22832 and up; PC78US-6: 4001 and up, 4809 and up (Norway & EU)

Serial Breaks: PC78US-6: S/N 4001–4248 and 4249 and up within the S/N 4001–6500 blade and blade-less hydraulic diagrams, S/N 4001–4903 and 4904–6500 for fuel tank service, S/N 4001–4927 for the arm drawing detail (4809–4927 for the Norway & EU long arm), S/N 6501 and up for revised hydraulic and electrical diagrams. PC78US-6 Norway & EU: S/N 4809–6765 and 6766 and up for the boom anti-burst valve. PC78UU-6: S/N 22832–24066 and 24067 and up for track roller specifications, S/N 23501–24085 and 24086 and up for fuel tank weights.


  • Engine models: Komatsu 4D95LE-2 (PC78UU-6: S/N 22832–23500; PC78US-6: S/N 4001–5500; PC78US-6 Norway & EU: S/N 4809–5500), S4D95LE-3-A (PC78UU-6: S/N 23501 and up; PC78US-6, including Norway & EU: S/N 5501 and up)

  • Rated engine output: 40.5 kW {54.0 HP} at 1,850 RPM

  • Bucket capacity: 0.28 m³ (standard PC78US-6 and PC78UU-6); 0.20 m³ (PC78US-6 Norway & EU)

  • Max. digging depth: 4,100 mm (standard PC78US-6), 4,200 mm (PC78UU-6), 4,710 mm (PC78US-6 Norway & EU)

  • Overall length: 5,770 mm (standard PC78US-6), 6,060 mm (PC78UU-6), 6,265 mm (PC78US-6 Norway & EU)

  • Machine weight: 6,780–7,700 kg range depending on specification

Komatsu Manual Features & Selected Content Preview

This Komatsu shop manual (P/N SEBM025116, October 2007 edition) covers 1998–2007 PC78UU-6 and PC78US-6 hydraulic excavators. Coverage begins at PC78UU-6 serial number 22832 and PC78US-6 serial number 4001. Section 50 covers the differences specific to the Norway and EU PC78US-6 from serial number 4809.

PDF Search, Bookmarks, and Wiring Detail

Text search and diagram labels: Search the service text or use the embedded bookmarks to jump to chapters, procedures, and diagram sheets. Many labels within the schematics are outside the searchable text. Zoom in to read small connector labels, pin numbers, and wire codes.

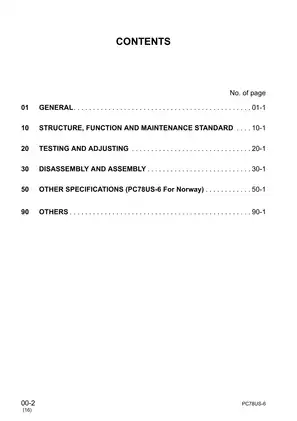

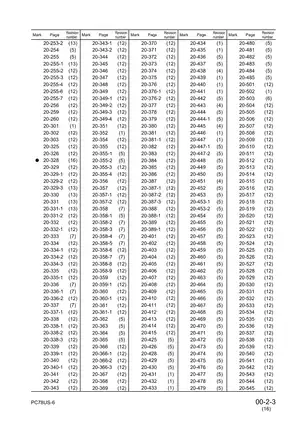

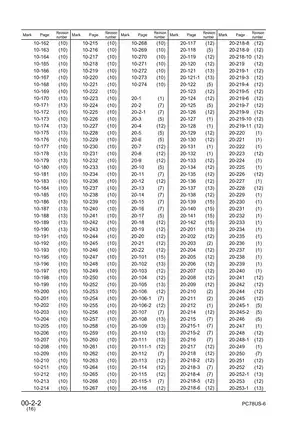

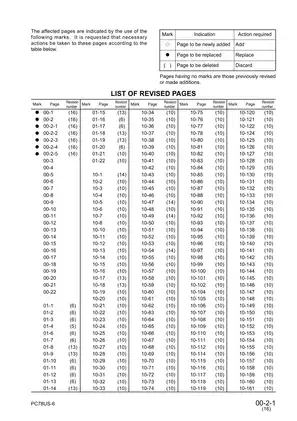

The download is one printable English-language PDF with 1,027 pages. The total includes the 109-page Norway and EU section, the original cover, five revision-list pages, and three blank pages.


Hydraulic Diagnosis, Final Drive Repair, and Electrical Fault Tracing

This selection from the shop manual also includes swing-circle bearing clearance checks and a PM Clinic inspection worksheet.

  • Engine and cooling: Compression, blow-by, and oil-pressure checks, fuel injection timing, and removal and installation of the injection pump, cylinder head, radiator, and hydraulic oil cooler.
  • Hydraulic diagnosis: CLSS operation, LS differential-pressure testing, PC valve adjustment, PPC output-pressure checks, work-equipment drift diagnosis, swing- and travel-motor leakage tests, and hydraulic circuit bleeding.
  • Travel, swing, and undercarriage: Step-by-step procedures for GM09VN2 travel-motor and swing-machinery disassembly and assembly, plus idler and recoil-spring service, track roller repair, and track tension checks.
  • Work equipment: Hydraulic cylinder rebuilding, boom and offset-bracket removal, and multi-control valve operation. PC78UU-6 coverage includes interference-prevention diagnostics.
  • Electrical troubleshooting: Controller and monitor fault charts, connector arrangement diagrams, pin tables, and wiring diagrams for tracing TVC-EPC and governor-control faults.
  • Machine configurations: Blade-equipped and blade-less hydraulic layouts, steel shoe, road liner, and rubber shoe specifications, and Norway/EU boom anti-burst valve and overload-alarm coverage.

This manual is suited to service technicians equipped for hydraulic testing and heavy assembly work, including jobs that call for dedicated adapters, presses, and lifting equipment.

Engine Testing, Removal, and Cooling Service

The engine tables list performance and fuel consumption for the 4D95LE-2 and S4D95LE-3-A. The repair section covers removal and installation of the engine and main pump. Detailed engine service is covered in the separate 95-2 Series and 95-3 Series Engine Shop Manuals, which are sold separately from this PDF.

Cooling system layouts accompany the component procedures. The lubricant and capacity tables distinguish specified capacities from refill quantities for the engine, swing machinery, final drives, and hydraulic system. They also identify hydraulic and cooling capacity changes at PC78US-6 serial number 6501.

CLSS Diagnosis and Hydraulic Repair

The CLSS section explains how LS differential pressure controls pump swash-plate angle and identifies differential-pressure gauge 799-401-2701 for the LS test. The drift test helps distinguish internal cylinder leakage from a control valve fault before either assembly is removed.

Eight hydraulic circuit sheets cover blade configurations, additional attachments, Norway/EU machines, and the PC78UU-6. Repair procedures cover the control valve and center swivel joint. The bleeding section warns that an empty pump case or trapped air between the pump and tank can cause overheating and pump damage.

Follow the manual’s hoisting, work-equipment support, and residual-pressure precautions when handling heavy assemblies or opening hydraulic circuits.

Final Drives, Swing Machinery, and Work Equipment

PTO and power-train layouts show how the engine, pumps, travel motors, and swing system connect. The GM09VN2 section pairs a sectional view and an exploded reduction gear drawing with parts lists, inspection limits, clearance tables, and a performance test. Its disassembly notes address reamer bolts that can bind because of thread adhesive.

Swing-machinery procedures cover reduction gears, shafts, bearings, and seals. Working-range drawings and component dimensions accompany the track frame, idler cushion, and work-equipment coverage. The manual also covers long-arm installation adjustments and attachment-selection settings. Torque tables cover metric bolts, flared nuts, split flanges, and O-ring boss joints.

Monitor Diagnostics and Norway/EU Systems

Monitor charts distinguish operator-facing codes such as E02 for TVC-EPC and E05 for governor control from the corresponding service codes. Serial-specific connector maps help identify the right circuit before testing wiring, relays, sensors, or controllers.

PC78UU-6 diagnostics cover angle sensors and depth indication. The Norway/EU section adds overload-alarm pressure sensing, meter display functions, associated fault circuits, and separate maintenance data for the two boom anti-burst valve versions.

A Preview of Valve Clearance and Track Slack

At normal temperature, the standard valve clearance for both the 4D95LE-2 and S4D95LE-3-A is 0.35 mm on the intake side and 0.50 mm on the exhaust side.

Standard track slack is 10–30 mm for road liners or steel shoes and 1–3 mm for rubber shoes. The specification refers to the maximum gap between the top of the track and a straightedge spanning the idler and carrier roller.
