2006 Mazda BT-50 Training Manual (P/N NMT-009)

Mazda Motor Europe’s Training Manual (P/N NMT-009) covers the 2006 Mazda BT-50 (UN) with the WL-C diesel engine, including REG, RAP/Freestyle and DBL cab configurations. It explains system design and operation with selected diagnostic and repair-related procedures; it is not a complete workshop overhaul manual.

Searchable Text, Bookmarks and PDF Contents

Search and circuit detail: Chapter text is searchable, and embedded bookmarks provide section and topic navigation. Text inside some wiring-diagram images is not searchable. Small wire-color codes and connector labels in the lighting and data-link diagrams require zooming.

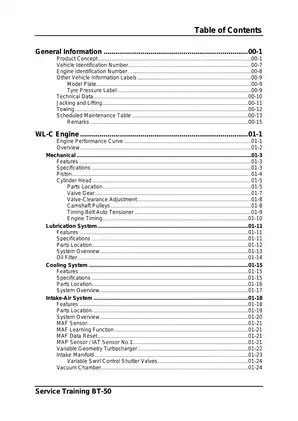

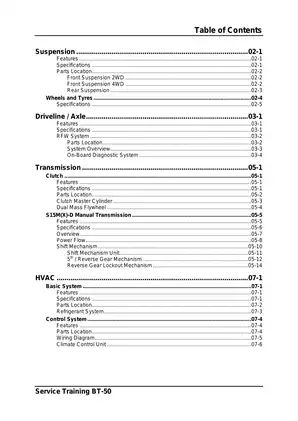

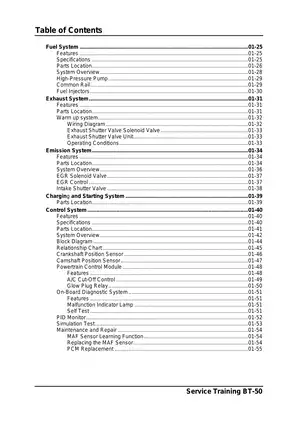

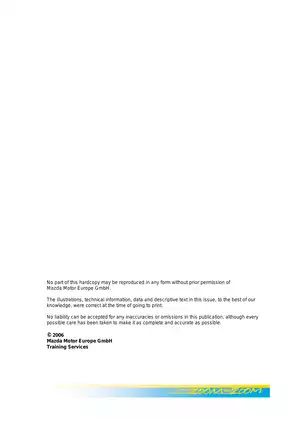

One printable English PDF with 146 pages, including the cover, copyright page, five contents pages, four notes pages and two abbreviation pages.

Diesel Controls, Driveline Operation and Electrical Diagnosis

The following content highlights are a selection from the manual. Other topics include cargo-box construction and anti-corrosion measures.

• Engine and maintenance: Cylinder-head and valve-gear construction, timing-belt tensioner operation, lubrication and cooling layouts, and scheduled maintenance tables.

• Fuel, intake and emissions: Bosch common-rail components, Variable Geometry Turbocharger operation, Variable Swirl Control, EGR control and exhaust warm-up system.

• M-MDS service procedures: MAF learning, sensor-replacement follow-up, PCM replacement, self-tests, PID monitoring and actuator simulation tests.

• Transmission and four-wheel drive: Clutch and dual-mass flywheel construction, transmission power flow, shift mechanisms, and RFW fault codes and output tests.

• HVAC: Refrigerant-system layout, cable-operated climate controls, component locations and the air-conditioning wiring diagram.

• Airbag diagnosis: SAS control-module operation, side airbags, seat belt pretensioners, diagnostic-code examples and RCM PID definitions.

• Body electrical systems: Lighting and wiper circuits, security-system wiring, diagnostic communication links and instrument-cluster input/output checks.

This service-training material is suited to technicians familiar with diesel systems and scan-tool diagnosis, particularly those using Mazda’s M-MDS equipment.

Mechanical and Powertrain Systems

The manual details the mechanical architecture of the WL-C common rail diesel engine. It documents the cylinder-head assembly, timing-belt auto-tensioner components and lubrication-system flow paths, with an Engine Performance Curve and engine-timing illustrations.

The aluminum cylinder-head surface must not be machined; the manual directs replacement when necessary. Its valve-clearance section also warns that incorrect handling of the adjusting-screw locknut can damage the rocker-arm claw.

Reference material for the S15M-D and S15MX-D transmissions explains power flow and shift mechanisms. Component views show the shift-mechanism unit, fifth/reverse gear arrangement and reverse lockout. Chassis and driveline sections distinguish front-suspension layouts and provide wheel-alignment, tire and differential specifications.

Working with automotive powertrains involves high-pressure fuel systems and heavy components. Always verify shop equipment load capacities and safely release system pressures before beginning component teardowns.

Fuel Injection and Emission Controls

The Bosch CP3S3 pump and common-rail sections explain fuel delivery and identify the metering valve, pressure sensor and pressure limiter. The rail’s sensor and limiter are treated as parts of the complete rail assembly rather than separate replacement parts.

Injector coverage describes correction-factor programming through M-MDS and specifies replacement of the sealing rings in the lower camshaft bearing case whenever injectors are removed.

EGR coverage distinguishes duty-controlled valve positioning from the separate cut-off solenoid. Intake-shutter operation and the optional exhaust-shutter warm-up system are explained alongside their component layouts.

Electronic Control and Engine Management

The PCM Block Diagram and Relationship Chart connect sensor inputs, control strategies and outputs, providing a reference for tracing electrical faults before selecting components for further testing. CKP and CMP descriptions explain their different effects on stalling and restarting.

Step-by-step procedures cover MAF-sensor replacement follow-up and PCM-replacement initialization. MAF learning, data resets, KOEO/KOER self-tests, PID monitoring and simulation tests are documented; further PCM-replacement information is referred to the separate Workshop Manual.

The RFW section supplies a DTC table and M-MDS output tests for the lock/free solenoids and indicator lights. Symptom-based troubleshooting is referred to the Workshop Manual.

HVAC, Restraints and Body Electrical Systems

The HVAC Wiring Diagram relates the PCM, pressure switch, compressor clutch and blower controls. The Airbag Wiring Diagram links the SAS module, airbags, pretensioners and diagnostic connector.

Airbag self-test coverage explains why one warning-lamp pattern can represent several circuit faults, while M-MDS reports more specific causes. Body-electrical material includes lighting and wiper schematics, security-system operation and instrument-cluster check-code definitions.

A Preview of Valve, Oil-Pressure and Cooling Specifications

The WL-C mechanical table lists cold-engine valve clearances of 0.10–0.16 mm for intake and 0.17–0.23 mm for exhaust, alongside the valve-clearance adjustment material.

The lubrication table gives an oil-pressure reference range of 100–330 kPa at idle after warm-up.

Cooling specifications list approximate coolant capacities of 8.8 liters without a heater and 9.4 liters with a heater.
