2003 Yamaha YZ250F/YZ250FR Owner's Service Manual (P/N LIT-11626-16-39)

This Yamaha Owner’s Service Manual covers the 2003 YZ250F, YZ250FR, and YZ250F(R) regional configurations for the USA, Europe, Canada, Australia, New Zealand, and South Africa. The cover identifies the publication as 5UL-28199-10, with literature number LIT-11626-16-39.

• Engine repair: Engine removal, camshaft timing, cylinder-head and valve service, piston inspection, crankcase separation, crankshaft installation, and balancer alignment.
• Carburetor and tuning: Keihin FCR-MX37 disassembly, float inspection, accelerator-pump timing adjustment, jet selection, and symptom-based carburetor setting charts.
• Clutch and transmission: Clutch inspection and assembly, kickstarter and shift-shaft service, gear inspection, and shift-cam and shift-fork installation.
• Cooling and lubrication: Radiator-cap and cooling-system pressure tests, water-pump seal service, oil-strainer maintenance, and oil-pump clearance checks.
• Brakes and chassis: Caliper and master-cylinder repair, brake bleeding, wheel-bearing replacement, steering service, front-fork disassembly, and rear-linkage inspection.
• Electrical diagnosis: Wiring diagram, ignition-system fault chart, CDI magneto and ignition-coil tests, and throttle-position-sensor inspection and adjustment.

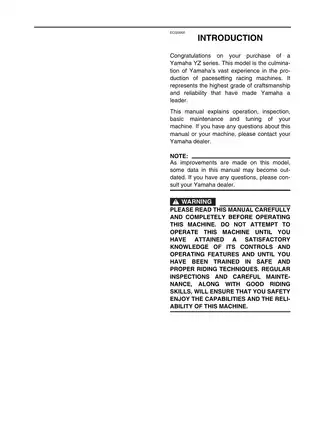

The owner sections explain controls and basic maintenance; the internal repair sections are suited to mechanics equipped for precision measurement and the specified special tools, with Yamaha recommending dealer maintenance for the front fork.

Engine Repair and Assembly Details

The engine chapter goes beyond routine servicing, with inspection limits for camshafts, valves, pistons, crankshaft components, and oil-pump rotors. Exploded views and accompanying job instruction charts identify the parts involved and the extent of removal for each assembly.

Valve service: The manual includes valve-pad selection tables, valve-guide replacement information, and a color-matching chart for cylinder heads and valve lifters. These references help distinguish adjustment work from component replacement and preserve the required component pairing.

Uneven loosening or tightening of the camshaft-cap bolts can damage the cylinder head, camshafts, or caps. The manual identifies this assembly-specific risk alongside its timing and installation instructions.

Carburetor Settings and Electrical Fault Finding

Carburetor specifications distinguish European jet-needle and identification details from the other listed markets. The tuning chapter connects atmospheric conditions and throttle-opening ranges with the relevant setting components, then supplies a symptom-based setting chart and setting-parts tables.

The ignition inspection chart helps narrow a no-spark fault through the switch, coil, magneto, neutral-switch, and connection checks before CDI-unit replacement. TPS coverage includes resistance checks, replacement, output-voltage adjustment, and input-voltage inspection.

Supporting illustrations include the Cable Routing Diagram, Electrical Components and Wiring Diagram, Ignition System inspection chart, and Throttle Position Sensor System inspection chart. The 3-D Image Map of Ignition Timing explains the control principle; it is explicitly illustrative rather than an actual ignition calibration map.

Suspension, Brakes, and Repair Limits

Front-fork coverage includes seal replacement, damper-rod removal, oil-level measurement, and damping adjustment. Separate European suspension specifications and optional spring tables support selection of the appropriate setup data.

Rear-suspension content covers spring and bearing service, linkage inspection, preload, and damping settings. The rear-shock section does not authorize internal cylinder or gas-reservoir disassembly: Yamaha expressly warns against opening these high-pressure nitrogen components.

Brake coverage includes piston and seal inspection, master-cylinder assembly, hose routing, and bleeding. For rear-shock upper-bearing installation, the manual warns that grease on the bearing’s outer race can wear the shock-body press-fit surface.

A Preview of Valve and Carburetor Specifications

Cold valve-clearance specifications are 0.10–0.15 mm for the intake and 0.17–0.22 mm for the exhaust, with the piston at top dead center on the compression stroke. The adjustment section pairs these limits with the valve-pad selection tables.

The FCR-MX37 float-height specification is 8.0 mm. Its measurement notes distinguish the float arm resting against the needle valve from compressing it, an important condition for interpreting the reading correctly.

PDF Navigation and File Contents

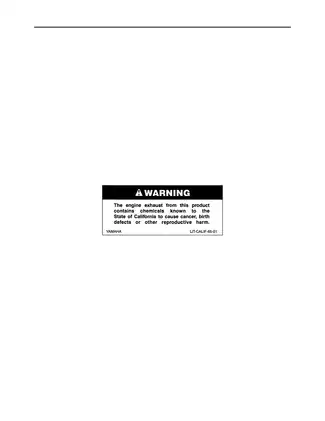

Text search and diagram viewing: The main technical chapters have searchable text; the exhaust-warning and warranty pages do not. Embedded bookmarks link to the contents and all seven chapters, while the legacy “Back To P.O.G.” entry has no usable internal destination. Small wiring color codes and connector labels are readable when enlarged.

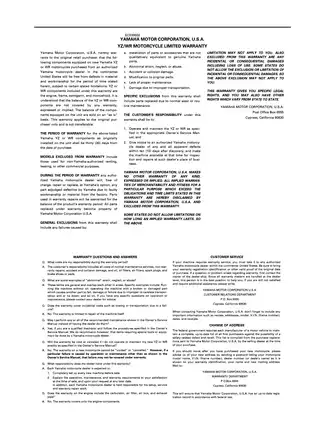

One printable English PDF contains 303 pages, including the original cover and back cover, one exhaust-warning page, one warranty page, one memo page, and two blank pages. These pages are already included in the total.
