2002–2003 Yamaha YZ250FR Owner’s Service Manual (P/N LIT-11626-16-39)

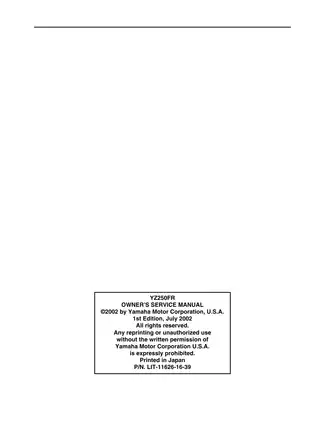

Yamaha’s Owner’s Service Manual, first edition July 2002, covers the YZ250FR and the corresponding regional YZ250F and YZ250F(R) versions. The publication carries P/N LIT-11626-16-39 and the additional cover identifier 5UL-28199-10, with operating information, maintenance, internal repair procedures, and competition tuning guidance.

Searchable Chapters and Printable PDF

Text search, bookmarks and wiring detail: The technical chapters support text search, with embedded bookmarks for the contents and all seven chapters. Two front-matter pages have no searchable text. Small wire-color and connector labels in the wiring diagram are clear when enlarged.

The single printable 304-page PDF includes 16 pages of front matter, two blank pages, and the back cover.

Engine Rebuilds, Suspension Service and Race Setup

These selected content highlights introduce the main workshop sections rather than reproduce the complete contents. Further topics include starting and break-in guidance, plus cleaning and storage.

• Engine repair: Step-by-step procedures for engine removal, crankcase separation, crankshaft installation, cylinder and piston inspection, valve service, and camshaft timing.

• Clutch and transmission: Clutch disassembly and plate inspection, kick-shaft and shift-shaft service, and transmission, shift-cam, and shift-fork removal and assembly.

• Carburetor service: FCR-MX37 disassembly, float-height inspection, accelerator-pump timing adjustment, and throttle-position-sensor testing, replacement, and adjustment.

• Cooling and lubrication: Radiator-cap and cooling-system pressure tests, radiator removal, water-pump repair, oil-pump inspection, and dry-sump oil-service procedures.

• Chassis and suspension: Brake-caliper and master-cylinder repair, brake bleeding, front-fork rebuilding, wheel-bearing replacement, steering service, and swingarm-linkage inspection.

• Ignition and tuning: Wiring diagrams, ignition-system troubleshooting charts, electrical test specifications, carburetor setting charts, and front-fork and rear-shock setup guidance.

The repair sections suit qualified mechanics; Yamaha recommends dealer service for work requiring special tools or equipment and specifically recommends dealer maintenance of the front fork.

Engine Assembly and Inspection References

Assembly operations are organized in a sequential format. Exploded diagrams and job instruction charts identify parts, removal scope, and assembly notes, helping mechanics determine how much dismantling a particular job requires.

The cylinder-head section extends to valve-guide replacement, valve-seat inspection and lapping, spring checks, and the color-coded matching of valve lifters to cylinder heads. Pad Selection Tables support valve-clearance adjustment, with notes on preserving lifter positions and preventing pads from falling into the crankcase.

Camshaft service covers the decompression mechanism and timing-chain tensioner as well as timing alignment. The manual warns that uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts.

Component-specific torque tables accompany the engine and chassis procedures. The special-tool list identifies equipment such as crankcase separating tool YU-1135-A and fork seal driver YM-01442, with corresponding international tool numbers.

Fuel Delivery, Lubrication and Cooling

The carburetor section distinguishes accelerator-pump timing from leak-jet selection and other mixture adjustments. Regional specifications separate European jet needles from those used in the other listed markets.

Dry-sump servicing covers the frame oil strainer, separate drain points, and the warm-up and settling conditions used for oil-level inspection. Routine oil changes and filter replacement have separate refill specifications.

Radiator-cap testing and cooling-system leak testing are documented separately. Water-pump procedures cover the impeller shaft, bearing, and seals, while the oil-pump section provides rotor-clearance inspection criteria.

Suspension Work and Its Limits

Factory suspension baselines and symptom-based setting charts provide a starting point for setup changes, which the tuning chapter relates to rider feedback and track conditions. European settings and spring specifications are distinguished where applicable.

Front-fork instructions cover seals, bushings, the damper rod, and oil-level setting. An assembly caution explains how a falling damper rod can damage the internal valve.

Rear-shock coverage includes removal, spring and bearing work, preload, rebound, and compression adjustment. Internal damper-cylinder and nitrogen-reservoir disassembly are expressly prohibited. The gas-release instructions concern dealer disposal of the unit, not a routine overhaul procedure.

Wiring and Ignition Fault Tracing

The Wiring Diagram and Cable Routing Diagrams connect electrical component identification with harness and cable installation. Ignition and throttle-position-sensor inspection charts organize checks of connections, switches, coils, sensor signals, and the CDI unit before replacement decisions.

The map-controlled CDI explanation includes a 3-D Image Map of Ignition Timing. This is an illustration of the control principle, explicitly distinguished from actual ignition characteristics.

Examples from the Bore and Fastener Specifications

For cylinder inspection, the standard bore is 77.00–77.01 mm. The cylinder-and-piston section explains the related bore measurements and piston-to-cylinder clearance assessment.

Torque-table examples include 50 Nm for the balancer-shaft driven-gear nut and 60 Nm for the clutch-boss nut. Their assembly sections supply the associated holding-tool, locking, and installation notes.
