2010 Yamaha WaveRunner VX Sport, VX Cruiser & VX Deluxe Service Manual (P/N LIT-18616-03-22)

This Yamaha service manual covers the 2010 WaveRunner VX Sport (VX1100), VX Cruiser (VX1100A), and VX Deluxe (VX1100B), built on the F2N hull and 6BU engine platform. It is publication LIT-18616-03-22, first edition, January 2010; the cover also carries document code F2N-28197-1M-11.

Text search, navigation, and wiring detail: The PDF has searchable text and embedded bookmarks for chapters and service sections. Two color wiring sheets appear at the end of the file. Small pin numbers and wire-color labels on these wide sheets require zooming.

• Engine repair: Engine removal and installation, cylinder-head overhaul, valve-clearance adjustment, camshaft timing, crankcase disassembly, and piston and crankshaft inspection.

• Jet pump and driveline: Pump disassembly, impeller and housing inspection, reduction drive gear case overhaul, intermediate housing service, and coupling alignment.

• Fuel system: Fuel-pressure testing, fuel-rail and injector removal, pump-module replacement, fuel-sender checks, and water-separator inspection.

• Electrical testing: Ignition and charging checks, starter motor rebuilds, ECM connector pinouts, and sensor, relay, and multifunction meter diagnosis.

• YDIS troubleshooting: Diagnostic-code tables, symptom-based fault charts, live engine monitoring, stationary component tests, active cylinder tests, and recorded fault data.

• Steering and hull: Steering-cable adjustment, Cruiser/Deluxe reverse-gate and shift-cable alignment, ventilation hoses, and model-specific deck hardware.

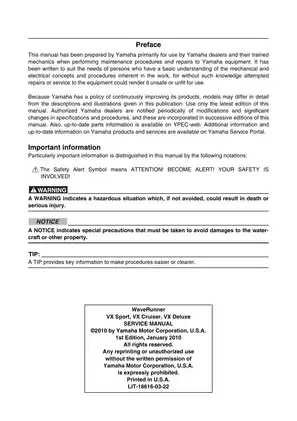

Yamaha wrote this manual primarily for its dealers and trained mechanics who already understand the mechanical and electrical principles involved in service and repair.

6BU Engine Repair and Lubrication

Cylinder-head coverage extends to valve-guide replacement, valve-seat refacing, and a valve pad selection table. Crankshaft and connecting-rod bearing selection uses size markings and color codes, alongside oil-clearance checks and wear limits.

Torque tables distinguish cylinder-head bolts from nuts requiring angle tightening. Fluid-capacity data separates total engine-oil capacity from routine oil changes with or without filter replacement.

Dry-sump lubrication coverage includes the oil separator, strainer, tank, cooler, and oil-pump checks. The oil-pump assembly is not intended for internal disassembly.

Fuel Injection and Cooling Checks

Fuel-system repair sections identify the test equipment, including fuel-pressure gauge adapter YW-06842/90890-06842. The fuel-pump module, throttle body, and APS assembly are treated as non-disassemblable units.

Injector installation notes explain how O-rings can twist and break, causing fuel leaks. The Lubrication system and Cooling system diagrams trace oil and cooling-water flow, while the oil-tank water-passage test checks for leakage at the cooler-cover gaskets.

Jet Pump, Intermediate Housing, and Deck

The F2N intermediate drive shaft engages the impeller through splines and remains in the intermediate housing when the jet pump is removed. Impeller pitch data, shaft inspection limits, and bearing and seal installation details accompany the exploded and sectional views.

The press-work cautions identify direct loading of drive-shaft threads as a damage risk. Separate procedures cover transom-plate sealing and engine coupling clearance after mounting or driveline work.

Reverse-gate and shift-cable procedures apply to Cruiser and Deluxe; reboarding-step installation applies to Cruiser. Hull service also covers the water lock, water tank, drain plugs, and seat hardware.

Electrical Controls and YDIS Diagnosis

Electrical tables provide battery requirements, stator-coil peak voltages, and sensor voltage and resistance specifications. Checks cover the throttle position sensor (TPS), accelerator position sensor (APS), cam position sensor, and slant detection switch.

The 6BU component layout shows the relocated ECM and rectifier regulator. Yamaha also identifies market-specific ECM versions and warns that these units are not interchangeable.

Off-throttle steering (OTS) and electronic throttle valve (ETV) control are explained. Yamaha Security System, L-MODE, and remote-transmitter registration coverage applies to Cruiser and Deluxe.

The Diagnostic code and checking step tables connect faults to component and wiring tests; the ECM record data graph supports investigation of recorded throttle-control faults. These references help narrow down limited-engine-speed complaints before selecting parts for replacement.

The multifunction meter displays only one diagnostic code at a time, and Yamaha recommends YDIS for ETV troubleshooting. These procedures require the diagnostic software and communication cable; the manual specifies YDIS kit 60V-85300-04 and software versions 1.30/1.32.

Model-specific ECM circuit diagrams and the ECM coupler layout distinguish Sport wiring from Cruiser/Deluxe circuits and identify connector terminals and lead colors.

Because marine electrical and mechanical systems pose inherent safety risks, attempting any repair on this equipment requires appropriate technical knowledge.

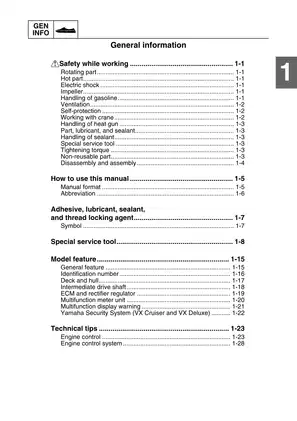

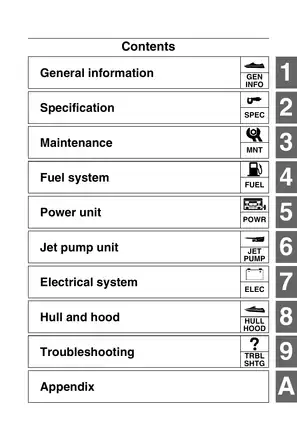

PDF Contents and Wiring Sheets

Supplied as one printable English 348-page PDF. The total includes the front and rear covers, two blank pages, four memo pages, and two wide-format color wiring sheets: one for VX Sport and one for VX Cruiser/VX Deluxe.
