Honda GCV520/GCV530 Engines Factory Service Manual (P/N GCV520-530)

This Honda service and repair manual covers 2003–2008 GCV520 and GCV530 vertical shaft V-twin engines, including aluminum (AL) and cast iron sleeve (FC) cylinder configurations.

Search, bookmarks, and wiring detail: Searchable OCR text and section bookmarks are included. Recognition errors can affect exact searches, especially in small labels. Small wiring labels require zooming, and the printed INDEX boxes are not active links.

• Internal engine repair: Cylinder/piston removal, connecting rod inspection, crankshaft checks, timing belt installation, and cam pulley service.

• Valve train: Valve clearance adjustment, rocker arm inspection, valve guide measurements, valve seat reconditioning, and decompressor checks.

• Fuel and controls: Carburetor teardown, float height inspection, fuel cut solenoid testing, fuel pump removal and installation, and governor linkage adjustment.

• Starting and ignition: Starter motor overhaul, brush replacement, ignition coil air gap adjustment, spark testing, and recoil starter reassembly.

• Lubrication: Oil pan removal and sealing, oil pump inspection on equipped engines, oil seal installation, and oil filter servicing.

• Electrical diagnosis: Wiring diagrams, charge coil tests, rectifier and regulator/rectifier checks, engine stop diode troubleshooting, and harness routing.

Honda specifies this manual for qualified professional technicians with service training, appropriate tools, and workshop equipment.

Engine Variants and Parts Identification

The description-code table assigns GJAKM (AL) and GJANM (FC) to GCV520, and GJAJM (AL) and GJAMM (FC) to GCV530.

QEA1 uses AL cylinders without an oil pump or filter. QEA3 has FC sleeves, a fuel pump, and 18A charging. QXA4 and QRA4 also use FC sleeves but have two-lever controls; QRA4 adds recoil starting. The other three types use 3A charging.

Separate cylinder and piston identification views help match AL and FC parts before an overhaul. These components are not interchangeable between the two cylinder configurations.

Internal Engine Repair and Inspection

The disassembly and inspection sections cover the cam pulleys, connecting rods, pistons, and crankshaft. Factory standards tables list component clearances, service limits, and torque values, including crankshaft main journal diameters and rocker arm tolerances. Oil capacity data distinguish oil changes, filter replacement, and disassembly.

Timing and lubrication: Illustrations show the separate timing belts and cam pulley alignment for each cylinder. Oil pump rotor checks and crankshaft axial clearance measurement accompany the oil pan procedures.

The oil pan assembly notes warn that tightening the bolts with the mating surfaces misaligned can damage the idler gear or timing belt drive pulley gear.

Valve work: Valve seat reconditioning covers contact-pattern checks and lapping, with a warning that residual lapping compound can cause severe engine damage. Specified tools include valve adjuster wrench 07908-KE90200 and valve guide reamer 07984-2000001.

Carburetor, Fuel Supply, and Governor

The horizontal two-barrel carburetor section distinguishes GCV520 and GCV530 jet specifications and the main jets for the No. 1 and No. 2 cylinders. Float height inspection uses gauge 07401-0010000; an out-of-spec reading calls for float and/or float valve replacement.

Main Circuit and Slow Circuit diagrams explain fuel metering. Fuel pump coverage consists of inspection, removal, and installation, with tube routing drawings for engines with and without the pump.

Governor linkage assembly and maximum-speed adjustment are documented alongside remote throttle and choke layouts for one-lever and two-lever controls.

Starting, Charging, and Fault Diagnosis

Hard Starting and Ignition System flowcharts connect symptoms with fuel delivery, spark, and cylinder compression checks. Separate wiring diagrams cover the 3A and 18A charging systems.

Terminal views and continuity/resistance charts support ignition coil, engine stop diode, rectifier, and regulator/rectifier testing. Harness routing drawings identify the solenoid wiring, ignition leads, and charging connections.

Starter repair extends to armature short-circuit tests, pinion gear inspection, and solenoid testing. Recoil starter coverage includes the rope, ratchets, and return spring.

Always observe proper workshop safety protocols and consult a qualified technician for service steps outside your expertise, particularly around gasoline, rotating parts, and the recoil starter spring.

Printable PDF and Included Pages

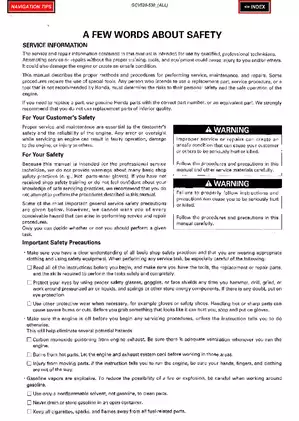

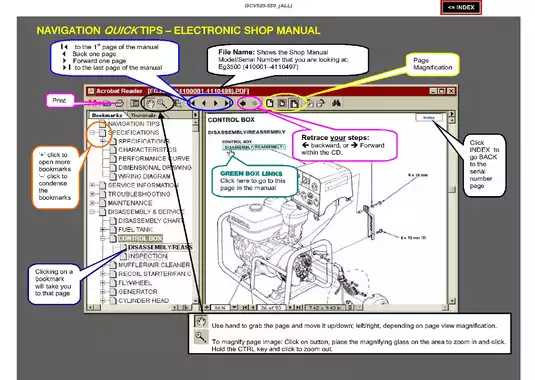

The manual is supplied as one printable English PDF. The 96-page total comprises 94 pages of technical material, one service safety page, and one Navigation Quicktips page; both preliminary pages are already included.
