2002 Yamaha EF3000iSE / EF3000iSEB Generator Service Manual (P/N LIT-19616-01-0, 19616-CM-20)

• 351 PDF pages across three Yamaha publications — a 142-page base service manual, a 33-page supplementary service manual, and a 176-page combined factory reprint. The combined file places the base manual and supplement in one volume, so it is an alternate format rather than a third block of unique repair content.
• Serial-specific coverage separates 7WL2 and 7CH2 builds: EF3000iSEB 7WL-200101 and later, EF3000iSE 7WL-240101 and later, EF3000iSEB 7CH-200101 and later, and EF3000iSE 7CH-230101 and later.
• Major removal and installation coverage reaches the control panel, fuel tank and control box, air-filter and control-unit assemblies, EF3000iSEB power unit, recoil starter and flywheel magneto, complete engine assembly, generator, muffler, chassis, and casters.
• Internal engine repair sections cover cylinder-head and valve work, camshaft and valve-lifter inspection, piston/ring/pin service, connecting-rod oil-clearance checks, crankshaft inspection, crankcase work, and carburetor disassembly.
• Fault isolation addresses no-start, stalling, failure to increase engine speed, uneven speed, throttle-control operation, ignition, electric starting, battery charging, AC output, and weak or absent DC output.
• Workshop references provide exploded views, separate model-specific wire-routing diagrams, a complete circuit diagram, special-tool numbers, maintenance schedules, torque tables, lubrication data, wear limits, clearances, and electrical test specifications.

Document Set and Serial Coverage

The full repair procedures begin with Yamaha literature number LIT-19616-01-03, first edition October 2002, also marked 7WL-28197-10. It is the base publication for the listed 7WL2 starting serials. The July 2004 supplement, LIT-19616-01-20 / 7CH-28197-10, adds the 7CH2 identification and serial coverage together with revised general, engine, generator, electrical, tightening, and routing data. Yamaha states that this supplement must be used with the 2002 manual for complete service procedures.

The later data is more than a cover change. The 7CH2 specification table identifies a GS GTX12-BS battery where the 7WL2 table lists a Yuasa YTX12-BS. Revised wire-routing pages add battery-lead, ground-terminal, throttle-control-motor, and EF3000iSEB power-unit routing details. LIT-19616-CM-20 packages the supplement first and the base manual behind it for one-file workshop use.

Mechanical Repair Depth

Access and teardown are organized around the actual generator layout. Variant-specific exploded pages show the EF3000iSE air-filter/control-unit arrangement and the EF3000iSEB arrangement with its added power unit and battery leads. The engine-removal section ties those assemblies to the fuel tank, control box, recoil starter, flywheel magneto, muffler, and generator rather than treating the engine as an isolated small-engine unit.

Internal repair coverage continues through cylinder-head removal and inspection, pushrods, valves and springs, rocker-arm and valve-seat checks, valve lapping, camshaft and lifter inspection, piston and ring measurements, connecting-rod oil clearance, crankshaft inspection, and crankcase reassembly. Carburetor coverage includes removal, disassembly, float and needle-valve inspection, passage cleaning, choke-cable setup, and throttle-control-motor fit.

Two factory cautions show why the model-specific repair information matters. The generator section warns that the magneto rotor and stator coil assembly must be removed together and kept in the same relative position; the rotor's magnetic force can damage the parts if they are separated or shifted. Inside the crankcase, camshaft-to-crankshaft index alignment is critical, since incorrect positioning leaves valve timing wrong after assembly.

Electrical and Control-System Diagnosis

The engine fault trees trace no-start, stall, failure to increase speed, and uneven-speed complaints through oil-level protection, fuel delivery, spark, compression, valve condition, mechanical timing, and the throttle-control system. Separate charts cover the ignition system, electric starting system, charging system, and generator system.

Component-level checks reach the TCI unit, spark plug and cap, charging coil, oil-level switch, starter relay and motor, rectifier, main and subcoils, control unit, throttle-control motor, switches, warning lights, DC circuit breaker, receptacles, fuses, and battery circuit. Starter-motor repair goes beyond a pass/fail test by covering the brushes, commutator, armature continuity, and related inspection limits.

Diagrams, Tools, and Specifications

Representative visual references include the Recoil Starter and Flywheel Magneto, Generator, Valve, and Piston, Connecting Rod, Crankshaft and Crankcase exploded assemblies; separate Engine and Generator wire-routing drawings for both models; the Ignition System troubleshooting chart; and the full Circuit Diagram.

Named service tools include the YS-01880-A/90890-01701 sheave holder, YU-33270-B/90890-01362 rotor puller, YM-01253/90890-01253 valve spring compressor, YU-33294/90890-05158 piston ring compressor, and YU-03112-C/90890-03112 pocket tester. Related tables supply component-specific torque specifications, lubrication points, inspection limits, adjustment data, and electrical test values without relying on generic small-engine figures.

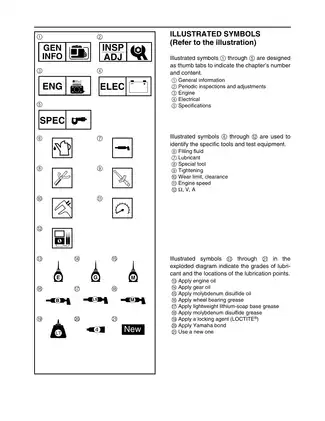

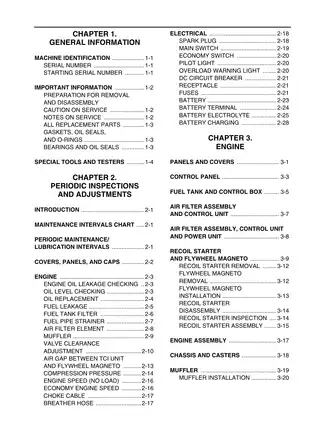

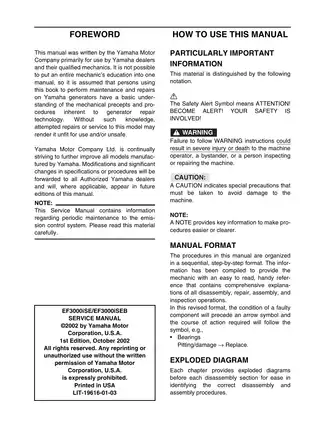

Yamaha wrote these publications for dealers and qualified mechanics, and the procedures assume basic repair knowledge. Before service, disconnect all loads, shut the generator down, allow hot components to cool, and follow the manual's fuel, battery, ignition-spark, and live-output test precautions. Some diagnostic checks intentionally require cranking or running the generator, so they should not be treated as dead-circuit tests.
