2006 Yamaha YZF-R6V(C) Factory Service Manual (P/N LIT-11616-19-78)

This Yamaha factory service manual covers the 2006 YZF-R6V and YZF-R6VC, including USA and California variants. Publication P/N LIT-11616-19-78 is the first edition, dated December 2005.

• Engine repair: Engine removal, cylinder-head and valve work, camshaft timing, crankcase separation, and crankshaft, piston, and connecting-rod inspection.

• Clutch and transmission: Clutch disassembly and plate inspection, transmission shaft disassembly, shift-fork checks, and gear inspection.

• Fuel injection and emissions: Throttle-body synchronization, YCC-T sensor adjustment, primary and secondary injector service, EXUP adjustment, and California evaporative-system checks.

• Brakes and suspension: Caliper and master-cylinder repair, hydraulic bleeding, fork disassembly, steering-head service, and preload and damping adjustment.

• Lubrication and cooling: Oil-pump inspection, oil-pressure testing, radiator and oil-cooler service, thermostat testing, and water-pump removal and replacement.

• Electrical diagnosis: Wiring and circuit diagrams, ECU self-diagnostic tables, sensor and actuator checks, and ignition, starting, and charging-system troubleshooting.

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes mechanical knowledge and familiarity with the repair techniques and tools used for these vehicles.

Engine Rebuilding and Transmission Inspection

The 2C0-series engine documentation follows disassembly through internal measurement and reassembly. Crankshaft and connecting-rod sections include Plastigauge checks and bearing-selection tables, while valve service covers guides, seats, and shim selection.

Timing illustrations show camshaft alignment and tensioner installation. The assembly notes warn that uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts.

Clutch exploded views and job charts support plate identification and assembly-width adjustment. Transmission inspection includes gear dogs and shift forks, with gear ratios and component-specific torque tables available for reference.

YCC-T, Fuel Injection, and California Emissions

Separate procedures address the throttle-valve position sensor and the throttle-cable-pulley sensor. Basic and alternate throttle-body synchronization methods are included, alongside fuel-pressure testing with the specified pressure gauge and adapter.

Throttle-body service covers removal, cleaning, inspection, and adjustment; the manual expressly prohibits disassembly of the bodies themselves. California coverage includes canister and rollover-valve checks with variant-specific hose routing. EXUP cable adjustment and air-induction valve checks have their own procedures.

Cable-routing diagrams show harness and hose placement. Fuel-line removal includes precautions against fuel spray from residual pressure.

Fork, Rear Shock, and Brake Service

Fork exploded views accompany damper-rod and oil-seal service. The cap-bolt procedure warns that incorrect preload-adjuster handling can break the collar projections.

Rear shock coverage extends to removal, inspection, replacement, and linkage-bearing service; internal shock disassembly is prohibited. Steering-head tension checks and brake-caliper seal replacement are documented separately.

Cooling and Lubrication Circuits

Oil-flow charts and cooling-system diagrams map the lubrication and coolant routes. Component checks include radiator-cap pressure testing and thermostat operation; oil-cooler installation and water-pump assembly replacement are also covered.

ECU Diagnostics and Electrical Fault Tracing

The DENSO ECU section links fault codes to sensor readings, actuator tests, wiring checks, and reinstatement criteria. Its intake-air-pressure diagnosis distinguishes sensor-circuit faults from blocked or detached hoses, helping identify which branch of the system needs attention.

The fuel-injection circuit and starting-circuit cut-off diagrams support connector and interlock tracing. Symptom-based troubleshooting also addresses starting failures, unstable idling, clutch drag, and overheating.

A Preview of Valve Clearances and Fuel-Pump Data

These selected values give a small preview of the factory reference data; the manual also provides spark-plug gaps, fluid capacities, and electrical test specifications.

For the covered models, cold valve clearance is 0.12–0.19 mm at the intake valves and 0.16–0.23 mm at the exhaust valves.

The 2C0/DENSO fuel pump has a specified output-pressure range of 319.0–329.0 kPa. This is the pump specification listed in the engine data tables.

Searchable Text and Detailed Wiring Sheets

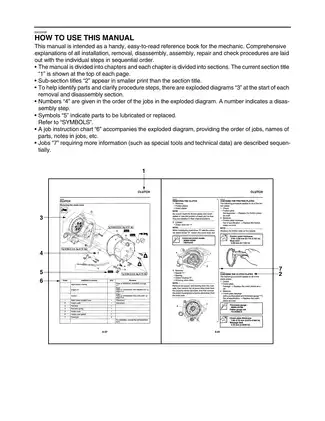

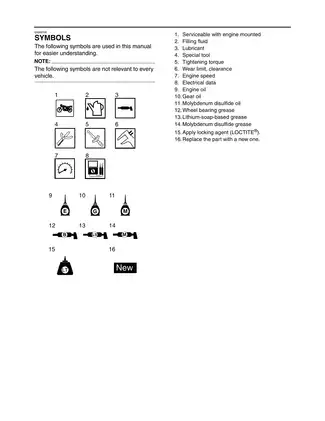

Text search and diagram detail: Searchable text and embedded bookmarks provide navigation to chapters and individual procedures. Small wiring labels are readable when enlarged, including the densely populated ECU and harness areas.

The download contains one printable, 434-page PDF: 432 pages of manual material, covers, and blank pages, followed by two appended wiring-diagram sheets, one black-and-white and one color. Both sheets are already included in the total.
