2007 Yamaha RS90K, RS90RK, RSG90K, RS90MK, RST90K, RST90TFK, VK10L & VK10W Snowmobile Service Manual Collection (P/N LIT-12618-02-38)

The VK10L supplement is used with the RS90 base manual. The VK10W supplement requires both earlier publications, bringing the shared service procedures and model-specific changes together in this collection.

Searchable Text, Chapter Bookmarks and Wiring Detail

Text search and diagram navigation: Searchable service text and embedded chapter bookmarks cover the base manual and both supplements. Small wire-color codes and connector labels in the full wiring diagrams require zooming. The separate “Back to Index” shortcut points to an external Index.pdf file.

One printable, 688-page PDF contains all three publications. The totals above include their front and rear covers, wiring sheets and one blank page.

Engine Overhaul, Clutch Service and Snowmobile Diagnostics

• Engine repair: Step-by-step procedures for engine removal, crankcase disassembly, piston and bearing inspection, cylinder-head service, valve-pad selection and camshaft installation.

• Clutches and chaincases: Primary and secondary sheave disassembly, bushing inspection, drive V-belt adjustment, reverse-drive service and VK10W shift-mechanism repair.

• Steering and suspension: Steering-linkage alignment, ski inspection, front suspension installation, model-specific slide rail suspension assemblies, and track tension and alignment procedures.

• Cooling system: Coolant replacement and bleeding, leak testing, heat exchanger service, thermostat testing, water-pump repair and VK10 radiator-fan diagnosis.

• Carburetion and tuning: Carburetor disassembly, synchronization, fuel-level adjustment, fuel-pump checks, throttle position sensor adjustment and high-altitude tuning charts.

• Electrical troubleshooting: System circuit diagrams, starter-motor service, ignition and charging tests, grip warmer diagnosis, carburetor heater checks and self-diagnosis code tables.

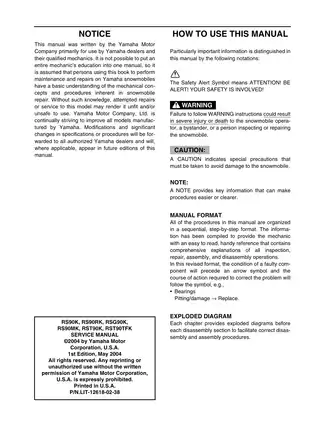

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume a working knowledge of snowmobile maintenance and repair.

Engine Inspection and Internal Repair

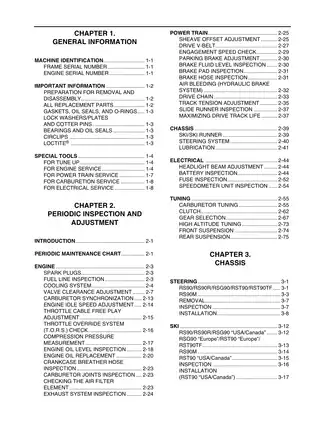

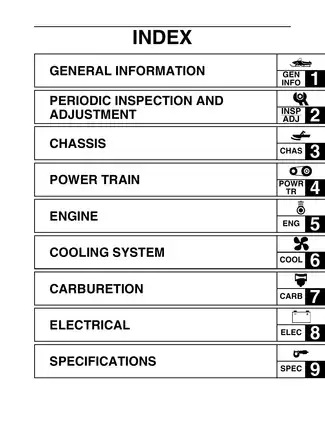

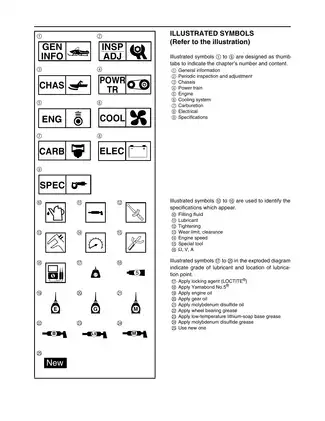

The base manual is organized into nine chapters, progressing from machine identification and special tools to mechanical repair, electrical diagnosis and specifications. Engine coverage extends to crankshaft and balancer-shaft removal, oil-pump inspection, valve-guide and valve-seat work, and bearing selection using component markings.

Exploded assemblies accompany the repair sections, while valve-pad selection tables and Plastigauge checks support internal inspection. The crankcase section warns that interchanging connecting rods and big-end bearings can alter oil clearance and damage the engine.

Special-tool references identify the equipment needed for specific jobs, including the engine mount spacer wrench, YS-01489 / 90890-01489, and mechanical seal installer, YM-04145 / 90890-04145.

Clutches, Reverse Drive and Chassis Service

Power train sections separate primary and secondary sheave work from drive chain housing and secondary-shaft service. Reverse-equipped and non-reverse chaincases have distinct procedures; the VK10W supplement adds shift-lever disassembly, low-range gearing, shift-drum installation and linkage adjustment.

Suspension coverage distinguishes RS90, RS90M, RSG90, RST90 and RST90TF assemblies instead of treating them as interchangeable. The RSG90 full-rate adjuster notes explain how turning its toothed adjusting bolt against a tightened nut can strip the teeth.

Brake coverage includes caliper inspection and repair, master-cylinder service, parking-brake adjustment and hydraulic bleeding. Front axle and track sections provide sprocket-positioning and track-installation illustrations.

Carburetor Tuning and Cooling-System Differences

Carburetor tuning charts relate main-jet selection to operating temperature and altitude, with separate clutch and gearing references for the covered configurations. Synchronization, fuel-level measurement and throttle position sensor checks provide the supporting adjustments rather than relying on jet charts alone.

Cooling sections document filling, bleeding and pressure testing alongside component inspection. The VK10L supplement adds radiator and radiator-fan service, a fan circuit diagram and a troubleshooting chart, keeping those procedures separate from the base manual’s heat exchanger and water-pump work.

Circuit Diagrams and Fault Isolation

Electrical chapters provide circuit diagrams for the ignition, electrical starting, charging, lighting and grip warmer systems. Troubleshooting charts connect symptoms with wiring checks, component tests and the relevant specifications.

Self-diagnosis tables explain displayed faults for the throttle position sensor, coolant temperature sensor, speed sensor and warmer circuits. The VK10W supplement adds gear-position switch and relay checks for the back buzzer. These references help distinguish a circuit or switch fault from a failed component before replacement parts are selected.

Cooling Capacity and Engine Check Examples

The RS90M cooling section specifies a total coolant capacity of 6.3 L. Its filling and bleeding instructions accompany that model-specific capacity rather than applying a single quantity to every snowmobile.

For the RS90 models covered by the base manual, intake valve clearance is 0.15–0.22 mm with the engine cold at room temperature. The compression-testing section lists a standard sea-level pressure of 1,450 kPa at 400 r/min for a warmed engine, alongside minimum and maximum readings.

Always consult this original OEM documentation alongside standard workshop safety protocols before beginning hands-on maintenance. Proper protective gear, secure support during track tests, and precautions for spring-loaded sheaves and pressurized cooling systems are essential.
