2013 Yamaha FX10D, FX10RTRSD, FX10XTD, FX10XT75D, FX10M53SD, and FX10M62SD Snowmobile Supplementary Service Manual (P/N LIT-12618-03-08)

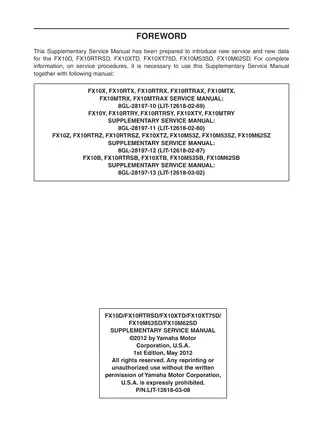

This supplementary service manual outlines updated service procedures and maintenance data for the 2013 Yamaha FX Nytro models listed above. It is Yamaha publication P/N LIT-12618-03-08, document code 8GL-28197-14, first edition May 2012.

One 118-page PDF in English. This is a supplement to the base service manual and earlier supplements listed below.

• Engine lubrication: Maintenance schedules, engine oil and filter replacement, oil pan and oil pump removal, and oil pressure sensor replacement.

• ECU diagnosis: Self-diagnostic function tables, meter-based diagnostic mode, sensor and actuator checks, fault history, and oil pressure troubleshooting.

• Steering and suspension: Model-specific handlebar removal, ski inspection, front suspension service, spring-preload adjustment, and slide rail suspension disassembly.

• Front axle and track: FX10D and FX10XT75D removal, inspection, sprocket positioning, track installation, and extrovert sprocket wheel wear checks.

• Clutch and gearing: FX10D/FX10XT75D clutch-component selection, gear-ratio charts, and high-altitude tuning tables.

• Brake master cylinder: Removal, disassembly, and reassembly information, with exploded views, component identification, and tightening torques.

• Grip and thumb warmers: Resistance measurements, adjustment-switch continuity checks, circuit diagrams, and fault-finding charts for heating failures.

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of snowmobile repair.

Required Base Manual and Earlier Supplements

Complete service information requires these companion publications, which are not included in this PDF:

• Base service manual: 8GL-28197-10 (LIT-12618-02-69).
• Supplement: 8GL-28197-11 (LIT-12618-02-80).
• Supplement: 8GL-28197-12 (LIT-12618-02-87).
• Supplement: 8GL-28197-13 (LIT-12618-03-02).

This supplement does not contain a full internal engine overhaul chapter.

Chassis and Track Repair by Model

Slide rail suspension procedures distinguish FX10D from FX10XTD/FX10XT75D assemblies. Front suspension removal and spring-preload adjustments cover FX10D/FX10XTD/FX10XT75D; FX10D also has rear spring-preload adjustment data.

Separate handlebar drawings cover the trail/crossover, RTX, and MTX layouts. Ski and runner inspection includes wear limits and the inner/outer runner positions.

Front axle and track repair includes separate sprocket positioning drawings for FX10D and FX10XT75D. Track clip installation identifies the installer YS-91045-C / 90890-01533.

Brake master cylinder exploded views identify the reservoir diaphragm and master cylinder kit. Have brake and suspension work checked by a qualified technician before returning the snowmobile to service.

Clutch Selection and High-Altitude Tuning

FX10D and FX10XT75D charts identify primary and secondary springs, weights, rivets, rollers, torque cams, and chain/sprocket combinations. Separate altitude tables link clutch parts and gearing to operating elevation, helping match a setup before parts are ordered.

Oil Pressure, ECU Diagnosis, and Warmers

Meter-based diagnostic mode covers sensor readings and actuator tests, including ignition coils, injectors, and the ISC (idle speed control) unit. Fault tables also address T.O.R.S. and meter communication errors, with malfunction-history display and erasure procedures.

Oil pressure sensing system troubleshooting distinguishes low oil pressure from sensor and switch circuit faults. The sensor service notes flag impact damage and connector contamination: a dropped sensor requires replacement, while oil or water in the connector can cause a malfunction.

The grip warmers are wired in parallel, so an open circuit on only one side may not trigger fault code 81. The individual resistance and switch tests help trace a one-sided heating failure even when no code appears.

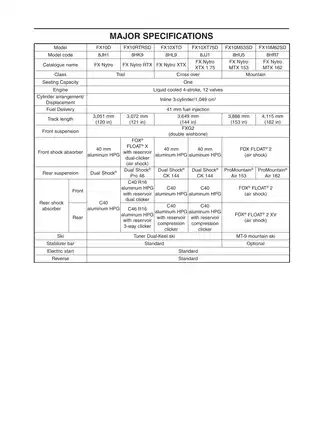

Specifications and Technical Drawings

Factory references include oil capacities, torque tables, ski and sprocket wear limits, and electrical test values. Fuel-injection and grip-warmer circuit diagrams sit alongside cable routing views and the engine oil lubrication chart.

PDF Contents and Readability

The page count includes 101 numbered manual pages, 10 preliminary pages, two wiring-legend/color-code pages, three closing pages, and two large-format wiring diagrams in black-and-white and color. Covers and blank pages are included.

Service text, tables, and legends support text search; many labels within wiring and routing drawings do not. Embedded bookmarks navigate the service sections. Small wiring labels require zooming.
