2004–2007 Yamaha WaveRunner FX High Output & FX Cruiser High Output Service Manual with FX / FX Cruiser Supplement (P/N LIT-18616-02-83, LIT-18616-02-93)

This 2004–2007 Yamaha WaveRunner package pairs the FX High Output / FX Cruiser High Output Service Manual (P/N LIT-18616-02-83) with Supplementary Service Manual P/N LIT-18616-02-93, covering updates for those models plus FX and FX Cruiser.

• High Output engine repair: Power unit removal, crankcase disassembly, cylinder-head and valve service, camshaft installation, piston inspection, and crankshaft bearing selection.

• Fuel injection: Fuel pump module service, throttle body disassembly and synchronization, fuel pressure measurement, injector checks, and bypass valve motor testing.

• Jet pump and controls: Impeller replacement, intermediate drive shaft and bearing service, reverse gate assembly, and Quick Shift Trim System cable adjustment.

• Electrical diagnosis: Ignition and charging tests, starter motor repair, slant detection switch checks, and electric bilge pump troubleshooting.

• Security and instruments: Yamaha Security System checks, remote transmitter registration, multifunction meter diagnosis, and variant-specific display tests.

• Workshop references: Wiring diagrams, connector pinouts, cable and hose routing schematics, maintenance interval charts, torque tables, and removal and installation charts.

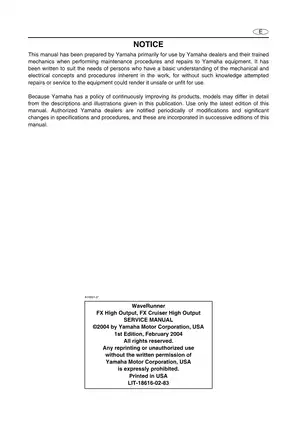

Yamaha wrote these service instructions primarily for its dealers and trained mechanics with a working knowledge of mechanical and electrical service.

Base Manual and Supplement Coverage

The base manual contains the internal engine and jet pump repair procedures for the F1S High Output models. The supplement adds F1X High Output and F1Y FX/FX Cruiser specifications, revised steering components, instrument checks, and bodywork procedures.

FX / FX Cruiser coverage: These models receive supplementary information here. Complete service coverage also requires the referenced F1B-series FX140 Service Manual and FX140/FX Cruiser Supplementary Service Manual, which are not included.

Power Unit, Lubrication, and Cooling

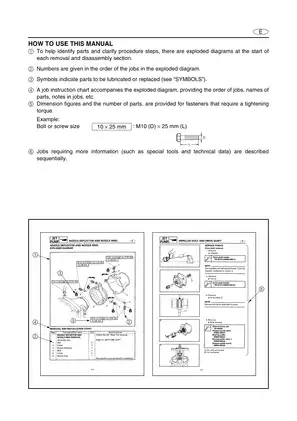

The power unit section covers valve guide replacement, valve seat refacing, piston and ring measurements, and color-coded connecting-rod and crankshaft bearing selection. Exploded views identify assembly relationships, replacement seals, and torque requirements.

Dry-sump lubrication coverage includes oil tank disassembly, feed and scavenge pump inspection, and the reduction drive gear. Thermostat tests and cooling-water hose routing diagrams support cooling-circuit checks.

The bearing procedures warn that mixing up connecting-rod or crankshaft journal bearings can cause engine damage. Starter clutch inspection and camshaft timing procedures are also included.

Jet Pump, Steering, and Cable Service

The jet pump chapter details drive shaft bearings, oil seal installation depths, and intermediate housing shim selection. Control-system sections cover QSTS grip disassembly and steering master inspection.

Cable-routing cautions explain how incorrect handling of crimped cable ends can deform or loosen them. The supplement adds separate handlebar arrangements and reboarding-step procedures for the Cruiser models.

Electrical Fault Tracing and Instrument Differences

Fault isolation: Trouble analysis charts connect starting, idling, charging, and overheating symptoms with the relevant inspection chapters. Together with diagnostic display codes and component tests, they help narrow a fault to the appropriate circuit before replacing sensors, relays, or the ECM.

Yamaha Diagnostic System: The manual describes engine monitoring, stored fault records, stationary tests, and active cylinder tests. These checks require separate diagnostic software, an adapter, and a communication cable. Remote transmitter registration uses an entry box and clears previously stored transmitter IDs.

Off Throttle Steering System coverage distinguishes the base manual's steering-switch checks from the supplement's steering-sensor test. FX Cruiser High Output instrument procedures address the compass, air and water temperature displays, tripmeter, and fuel-consumption display.

Follow the manual's fuel-pressure, ventilation, and electrical-isolation precautions when servicing the injection and electrical systems.

Valve Clearance, Fuel Pressure, and Coil Data: A Preview

These examples are a small selection of the engine, fuel-system, and electrical specifications in the manuals.

For the High Output engines, cylinder-head warpage is limited to 0.1 mm and cold intake valve clearance is 0.11–0.20 mm. The supplement specifies fuel pressure of 320.8–327.2 kPa for these models.

The base manual's ignition-coil check specifies primary resistance of 1.19–1.61 ohms at 20 °C (68 °F), with guidance on accounting for meter resistance.

Searchable PDF with Bookmarks and Wiring Sheets

Text search and diagram detail: Searchable text and embedded bookmarks provide access to both publications. Small pin numbers and wire-color codes in the detailed wiring sheets require zooming.

One printable 515-page PDF combines the 376-page base manual and 139-page supplement. These totals already include 19 pages of covers and introductory material, seven wiring-diagram appendix pages, and two back covers.
