MAN V8, V10 & V12 Marine Diesel Repair Manual, 2005 (P/N 51.99598-8123)

MAN Nutzfahrzeuge AG factory Repair Manual, P/N 51.99598-8123, technical status 10.2005, for V8-900 (D 2848 LE 423), V10-1100 (D 2840 LE 423), V12-1360 (D 2842 LE 423), V12-1550 (D 2842 LE 433), and V12-1224 (D 2842 LE 443) marine diesel engines.

Searchable Chapters and PDF Bookmarks

Text search and diagram detail: The chapter text is searchable, with 114 embedded bookmarks covering repair sections, Service Data, special tools, and the index. The cover and blank pages have no searchable text. Numbered cooling and fuel schematic labels are readable; zooming helps with fine linework.

Supplied as one printable, English-language PDF with 218 pages, including 214 numbered pages, front and back covers, and two blank pages.

Common-Rail, Marine Cooling, and Engine Overhaul

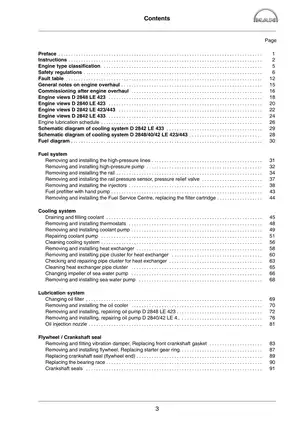

The following are selected repair topics, rather than a complete contents list. Other sections cover air-filter removal and vibration-damper replacement.

• Common-rail fuel system: High-pressure pump, rails, pressure sensor, relief valve, and injector removal/installation, plus Fuel Service Centre work, fuel-system venting, and post-installation leak testing.

• Marine cooling: Coolant filling and bleeding, thermostat testing, coolant-pump overhaul, heat-exchanger pipe-cluster inspection and cleaning, and sea-water pump impeller replacement.

• Turbochargers and intercoolers: Troubleshooting, shaft-clearance measurement, charge-pressure control-valve testing, and removal/installation procedures for the different charge-air arrangements.

• Internal engine repair: Cylinder-head, rocker-arm, valve, camshaft, crankshaft, piston/conrod, piston-ring, and cylinder-liner work, including valve-timing and protrusion checks.

• Lubrication and pump drives: Oil-filter and oil-cooler service, model-specific oil-pump overhaul, oil injection nozzle checks, and sea-water-pump and hydraulic-pump PTO repair.

• Diagnosis and workshop references: EDC fault tables, commissioning after overhaul, lubrication and cooling schematics, torque/angle specifications, inspection limits, and numbered MAN special tools.

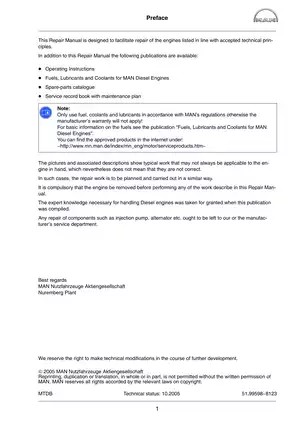

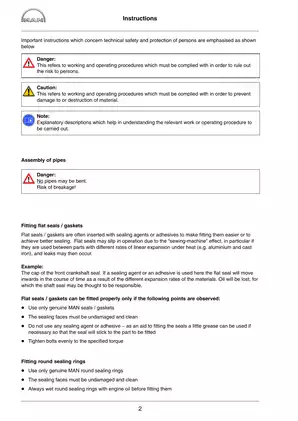

MAN specifies authorized skilled personnel for checks, adjustments, and repair work; the manual assumes expert knowledge of diesel engines.

Fault Diagnosis and Common-Rail Service

The fault table supports diagnosis before parts are removed. It connects EDC self-diagnosis or flash-code output and symptoms such as hard starting, shutdown, low power, irregular running, and smoke with possible fuel, sensor, control-unit, cooling, lubrication, and turbocharger faults.

Service Data identifies the Bosch CP2V4 high-pressure pump and EDC 7 control system. Illustrated, step-by-step injector replacement procedures include a pressure-hold leak check for the injector, pressure pipe, and leak-off circuit. Cleanliness requirements explain how contamination can jam injectors or damage the high-pressure pump drive.

High-pressure lines with WAF 17 and WAF 19 union nuts have different replacement and reuse rules. The manual distinguishes these fittings before specifying the applicable tightening procedure.

Cooling Repairs and Charge-Air Variants

Coolant-pump coverage reaches mechanical-seal replacement and bearing installation. The inspection guidance distinguishes normal traces of coolant at the drain bore from leakage requiring repair, helping assess the pump before replacement.

Heat-exchanger work includes pipe-cluster removal, deflector-position checks and repair, and sea-water-side cleaning. The sea-water pump sections cover impeller replacement, pump removal, and its power take-off.

The D 2842 LE 433 two-stage turbocharger/intercooler arrangement has separate front and rear component procedures. These differ from the D 2848/40/42 LE 423/443 arrangement. Turbocharger diagnosis also addresses oil accumulation in the charge-air system and checks to make before condemning the turbocharger.

Engine Overhaul and Workshop Requirements

Cylinder-head work includes valve guides, valve-seat inserts, seat reworking, and valve refacing. The timing and crankgear chapters extend to the timing case, camshaft bearings, crankshaft bearings, conrods, pistons, rings, and liner replacement.

Flywheel and starter ring gear replacement, front and rear crankshaft seals, starter motor and alternator removal/installation, and V-belt inspection and tensioning are also covered. Commissioning instructions address lubrication-system pressurization before restarting an overhauled engine.

Engine-out scope: MAN states that the engine must be removed before performing the work described. Internal repair of components such as the injection pump and alternator is directed to MAN or the component manufacturer’s service department.

PTFE crankshaft-seal warnings explain how loss of pretension or oil contamination can render a seal unusable and cause leakage. Cracked conrod caps are matched to their original rods; damaged fracture faces or mismatched assemblies cannot be reused.

Because these procedures involve high-pressure fuel, hot coolant and oil, heavy engine components, and rotating machinery, follow the MAN safety instructions and specified lifting, isolation, and workshop practices.

System Diagrams, Service Data, and Special Tools

Visual references include the Engine lubrication schedule, Schematic diagram of cooling system D 2842 LE 433, Schematic diagram of cooling system D 2848/40/42 LE 423/443, and Fuel diagram. Model-specific engine views locate intercoolers, heat exchangers, turbochargers, the Fuel Service Centre, sea-water pump, and oil cooler.

Service Data provides clearances, wear limits, capacities, pressure and compression criteria, adjustment specifications, and torque procedures. Tables cover the crankcase, liners, crankshaft, bearings, pistons, cylinder head, valve train, lubrication, cooling, fuel system, starter/alternator, V-belts, and PTO components.

Factory tool references include cylinder-head straightedge 80.99606-0582, leak tester 80.99620-0029, cylinder-liner extractor 80.99601-6018, injector extractor 80.99601-6022, and camshaft bearing tools 80.99606-6103 and 80.99606-6099. A dimensioned support-ring drawing is included for making coolant-pump repair tooling.

A Preview of Valve-Clearance and Liner-Protrusion Data

Valve-clearance specifications are 0.5 mm for the intake and 0.6 mm for the exhaust, with the engine cold and coolant temperature no higher than 50°C. The adjustment chapter includes engine-specific cylinder sequences.

Permitted cylinder-liner protrusion is 0.04–0.08 mm. The replacement chapter explains measurement before O-ring installation and rechecking after the liner is fitted.
