2005–2006 MAN D2876 LE 423/433 Marine Diesel Engine Repair Manual (P/N 51.99598-8166)

This MAN repair manual covers the 2005–2006 D2876 LE 423 and D2876 LE 433 marine diesel engines, corresponding to the R6-800 and R6-730 configurations. Technical status: 03.2006.

• Common-rail fuel system: High-pressure pump, rail, and injector removal and installation, delivery-pump inspection, Fuel Service Centre service, and fuel-system leak testing.
• Marine cooling: Coolant-pump repair, thermostat testing, heat-exchanger tube-bundle removal and cleaning, seawater-pump disassembly, and impeller replacement.
• Cylinder heads and timing: Cylinder-head removal, rocker-arm assembly, valve-guide and seat-insert replacement, valve-clearance adjustment, and camshaft bearing-bush installation.
• Crankshaft and pistons: Crankshaft and connecting-rod inspection, piston-ring checks, wet cylinder-liner replacement, and liner and piston protrusion measurements.
• Lubrication: Oil-pump disassembly and clearance checks, oil-cooler removal, bypass-valve inspection, oil-injection nozzle installation, and post-overhaul oil pressurization.
• Engine diagnosis: Symptom-based fault tables, turbocharger troubleshooting, compression-recorder testing, and MAN-Cats II compression and cylinder run-up tests.
• Illustrations and specifications: Lubrication, cooling, fuel-system, and engine-timing schematics, exploded component views, dimensional limits, and multi-stage torque schedules.

The manual assumes expert diesel-engine knowledge and specifies that inspection, adjustment, and repair work be performed by authorized, skilled personnel.

Common-Rail Service and Cylinder Diagnosis

The Bosch CP3.4 fuel system uses EDC 7 electronic control. Illustrated step-by-step procedures cover component removal and installation, injector extraction, and leak testing of the nozzle-holder seat, pressure pipe, and leak-off circuit.

Repair scope: Injectors must not be opened. Internal injection-pump and alternator repairs are assigned to MAN or the component manufacturer’s service department; the delivery pump has separate inspection and cleaning instructions.

The fault tables connect starting problems, reduced output, smoke, overheating, and oil-pressure symptoms with possible causes. MAN-Cats II TCOM compression and TRUP run-up tests help distinguish mechanical compression problems from injection-related cylinder weakness. The run-up test alone does not establish which side is responsible.

The common-rail handling notes explain how contamination can jam injectors and break the high-pressure pump drive. Because these circuits retain hazardous fuel pressure, follow the manual’s pressure-release and handling precautions.

Marine Cooling and Air Handling

Coolant-pump repair extends to the bearing, impeller, and mechanical seal. Heat-exchanger documentation covers tube-bundle removal, cleaning, and leak checks; the troubleshooting guidance also considers seawater restrictions and impeller wear before tube-bundle cleaning.

Turbocharger troubleshooting addresses oil consumption, low output, abnormal noise, and oil accumulation in the charge-air system. Intercooler removal and cleaning are covered separately. The waste-gate section describes a function check and replacement, while identifying the units as maintenance-free with no permitted setting adjustment.

Cylinder Heads, Crankgear, and Seals

For top-end rebuilds, the manual documents cylinder-head removal, rocker-arm assembly, valve-guide replacement, valve-seat insert replacement, Mira valve-seat machining, and valve refacing.

Bottom-end coverage includes crankshaft bearing inspection, connecting-rod measurements, piston-ring clearances, and cylinder-liner repair sizes. The camshaft bearing-bush procedures explain tool selection and oil-hole alignment, while liner installation includes checks for correct O-ring seating.

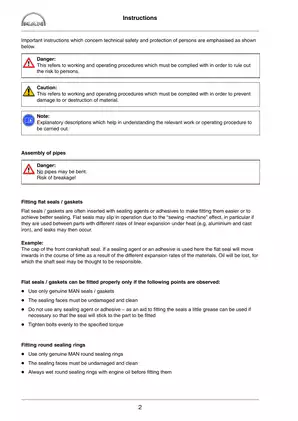

PTFE crankshaft seals: The seal-handling notes explain why oil contamination or premature removal from the transport sleeve can make the seal unusable and cause leakage.

Reassembly Data and Workshop Equipment

Component-specific dimensions and torque schedules support inspection and reassembly across the overhaul. Service Data includes crankcase, crankshaft, connecting-rod, and piston dimensions, plus separate tightening requirements for high-pressure fuel lines and cylinder-head bolts.

The lubrication chapters cover oil-pump wear checks and oil-cooler service. Post-overhaul commissioning includes oil pressurization to establish lubrication before startup.

Starter-motor and alternator coverage includes removal, installation, and functional checks. Special tools are identified by number, including injector extractor 80.99601-6022 and cylinder-liner measuring plate 80.99605-0195.

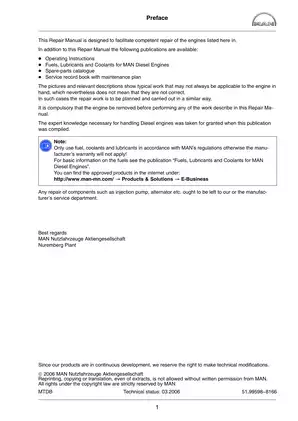

Workshop prerequisite: MAN specifies engine removal before the repair work described in this publication.

A Preview of Valve and Liner Measurement Data

For the covered engines, valve clearances are specified with the engine cold: 0.5 mm at the intake and 0.6 mm at the exhaust. The adjustment chapter defines the cold condition as a coolant temperature no higher than 50°C.

Cylinder-liner protrusion above the crankcase upper deck is specified at 0.03–0.08 mm. The liner chapter describes protrusion measurement and verification of O-ring seating after installation.

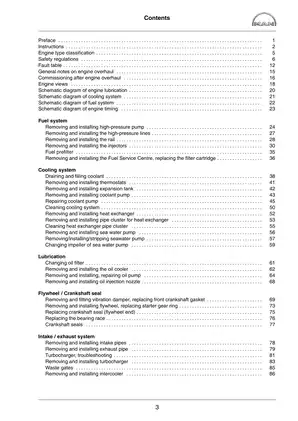

Searchable Text, Bookmarks, and PDF Contents

Search and diagram detail: The main manual text is searchable, with embedded bookmarks for repair chapters, Service Data, special tools, and the index. Cover lettering is outside the searchable text layer. Small schematic details benefit from zooming; the engine-timing schematic has faint linework.

One printable English PDF contains 192 pages total, including the front and back covers, two blank pages, and four notes pages.
