MAN EDC 7 D 08 / D 28 Marine Common Rail Repair Manual, 2005–2006 (P/N 51.99598–8128)

MAN repair manual for the EDC 7 common rail injection system on D 08, D 28 in-line, and D 28 V marine diesel engines. P/N 51.99598–8128, technical status 07.2006, covers system operation, testing, electrical interfaces, and electronic engine and gearbox control.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram access: Most text is searchable, and embedded PDF bookmarks provide access to technical sections and wiring diagrams. The V-engine wiring drawings are not text-searchable; small labels require zooming, and some MMDS annotations overlap.

One printable English-language PDF contains 342 pages, including the front and rear covers, two Notes pages, and an overview divider page.

Common Rail Testing and Marine Control Systems

The following selected topics outline the main coverage. Other subjects include charge-indication circuits and smoke-map selection.

• Fuel-system diagnosis: Step-by-step hydraulic checks cover suction, supply, and return circuits, with measurement points, pressure specifications, and causes of inadequate rail-pressure buildup.

• Cylinder testing: TCOM compression and TRUP run-up procedures include result interpretation for in-line, V8, V10, and V12 engines.

• EDC electrical checks: Separate in-line and master/slave test lists cover sensors, injectors, metering units, power supplies, starter control, and CAN connections.

• Fault-code troubleshooting: EDC and SFFR SPN/FMI information links fault symptoms and system reactions to measurements, wiring checks, and corrective measures.

• Marine controls: Covers SFFR displays, MMDS integration, MPC throttle interfaces, Marex SB, Mini-Marex-C, and the Em-R emergency running system.

• Wiring references: Engine-specific EDC and MMDS wiring diagrams, connector assignments, terminal diagrams, sensor characteristic curves, and troubleshooting charts support circuit tracing.

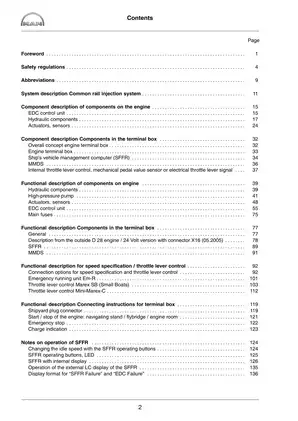

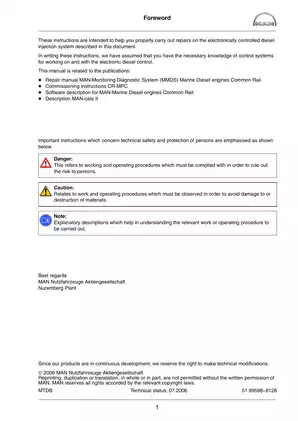

Written for authorized skilled personnel who already understand control systems and electronic diesel control.

Common Rail Components and Hydraulic Diagnosis

This technical reference breaks down the high-pressure common rail injection system, focusing on pressure generation and electronic control. It explains the CP3.4 pump used on in-line engines and the CP2/4V pump used on V-engines, together with ZME metering units (MProp), rail-pressure sensors, solenoid injectors, and the two-stage pressure limiting valve (PLV).

Configuration differences: V-engines use separate rails and metering units for the cylinder banks. The hydraulic section distinguishes the zero-delivery return from the general return and shows the different measurement arrangements; D 08 return-pressure testing requires separately connected sensors.

The troubleshooting material connects poor rail-pressure buildup with restricted fuel flow, air ingress, pump problems, and leakage. Fine contamination can damage precision injection components, a recurring concern in the manual’s fuel-system repair precautions.

Compression Tests, Run-Up Tests, and Fault Interpretation

The diagnostic procedures help workshops distinguish mechanical compression problems from injection faults before selecting further tests or replacement parts. TCOM compares cylinders within the same engine; it does not provide an absolute assessment of engine condition.

TRUP evaluates each cylinder’s contribution to acceleration. The manual explains why low compression can also affect run-up results and why V10 and V12 results require cylinder-bank-specific interpretation.

MAN-cats II coverage includes reading and clearing fault memories, monitoring measurement channels, and interpreting status information. Detailed menu instructions are referred to the separate MAN-cats II publication.

Terminal Boxes, Throttle Controls, and Displays

The terminal-box sections distinguish electrical configurations and motherboard versions, with connections for starting, stopping, emergency stop, throttle commands, and engine synchronization.

Marex SB and Mini-Marex-C have different control arrangements: Marex SB does not support trolling, while Mini-Marex-C does. Em-R coverage includes its connection and operating logic, with detailed emergency-unit information referred to a separate publication.

Internal and external SFFR display sections explain alarm acknowledgement, fault priorities, active and passive faults, monitoring screens, and idle-speed adjustment. Related MMDS, CR-MPC commissioning, software, and diagnostic publications are separate from this download.

Electrical Measurements and Circuit References

Connector tables distinguish single-ECU installations from V-engine master/slave systems. Sensor coverage includes boost pressure, coolant and fuel temperature, crankshaft increment signals, camshaft segment signals, and TDS speed-output characteristics; D 08 engines do not use the fuel-temperature sensor.

Reference illustrations include the in-line fuel-system schematic, V-engine hydraulic schematic, SFFR block diagram, MMDS motherboard wiring, and D 08/D 28 terminal diagrams.

The tool section describes wiring-harness adapters and test boxes, including the MAN-cats II adapter 51.25411–6025. Unsuitable test probes can expand ECU connector contacts and cause connection faults.

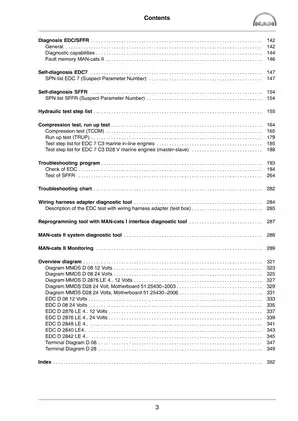

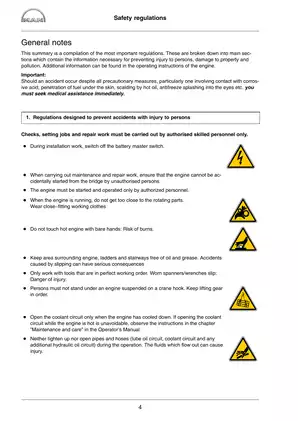

High-pressure fuel and live injector circuits require the manual’s pressure-relief and electrical-isolation precautions.

Selected Oil- and Fuel-Pressure Sensor Characteristics

Oil-pressure sensing: Sensors 51.27421–0163 and 51.27421–0221 have a measurement range from 0 bar at 0.5 V to 6 bar at 4.5 V. Their characteristic curves and connector assignments support signal evaluation.

Fuel-pressure sensing: Sensor 51.27421–0183 covers 0 bar at 0.5 V to 15 bar at 4.5 V on the low-pressure fuel supply, including the D 08 Fuel Service Centre application. These are sensor measurement ranges, not normal operating-pressure specifications.
