Isuzu Models Covered & Key Technical Specifications

Models: NPR, GMC W4, Chevy 4000

Sub-models / Variants: 4BD2-T Diesel Engine (4BD2-TC), Automatic Transmission, Manual Transmission, Flat Low Model

Model Year: 1993


  • Engine: In-line 4, 4-stroke, Turbocharged, 4BD2-T Diesel

  • Displacement: 3.85 Liters (235.3 cubic inches)

  • Compression Ratio: 21:1

  • Bore and Stroke: 102 mm (4.02 in) x 118 mm (4.65 in)

  • Engine Oil Capacity: 11.2 Liters

  • Idle Speed: 650 RPM (Manual and Automatic in D)

Isuzu Manual Features & Selected Content Preview

This 1993 Isuzu NPR, GMC W4 and Chevy 4000 diesel engine service manual covers the 4BD2-T engine, identified in the engine description as the charge-air-cooled 4BD2-TC. It covers internal engine repair and the related cooling, fuel, engine electrical and exhaust systems.

Printable PDF: Search, Navigation and Diagram Detail

Search and wiring detail: PDF text search and embedded bookmarks are not available. Small wire codes and connection labels in the engine electrical circuit diagram are readable with zooming.

One printable PDF contains 189 pages, including one cover page and five blank pages already included in that total.


Diesel Engine Overhaul, Injection Timing and Electrical Testing

The following selected coverage highlights outline the main workshop content. Additional topics include air-cleaner service and crankcase-breather replacement.

  • Internal engine repair: Step-by-step procedures for cylinder-head disassembly, valve-train service, piston and liner replacement, and crankshaft, camshaft and bearing inspection.

  • Fuel injection: Injection-pump removal and installation, pump-to-engine timing checks and adjustment, system bleeding, and injection-nozzle testing, disassembly and reassembly.

  • Cooling and fan drive: Cooling-system pressure checks, thermostat testing, radiator replacement, water-pump unit repair, fan-clutch diagnosis and drive-belt adjustment.

  • Engine electrical: Battery load testing, charging and starting diagnosis, generator and starter disassembly, electrical bench tests and reassembly.

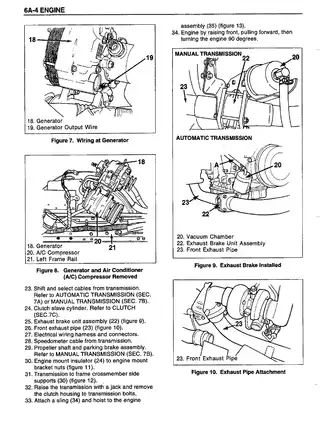

  • Exhaust brake controls: Electrical and vacuum diagnosis, magnetic-valve and vacuum-chamber replacement, pedal-switch adjustment, and engine warm-up control diagrams.

  • Exhaust system: Restriction and leakage diagnosis, system alignment, and replacement procedures for exhaust pipes, the muffler and tailpipe.

The inspection and overhaul content is suited to experienced diesel technicians equipped for precision measurement, component pressing and electrical bench testing.

Engine Inspection and Assembly

The documentation details crankshaft, camshaft, piston, liner and valve-train specifications, with production dimensions, service limits and component-specific torque tables. Cylinder-head, connecting-rod and flywheel fasteners have separate torque-and-angle requirements.

Parts selection: Liner and piston grading information, bearing-clearance measurements and Plastigage illustrations support decisions about component reuse and replacement. The manual specifically rules out regrinding the hardened crankshaft or fitting undersize bearings.

The Lubrication System Schematic traces oil delivery through the filters, cooler and engine galleries. Gear Train Timing Marks and head-bolt tightening drawings provide assembly references. Listed special tools include compression gauge J-26999-12 with adapter J-26999-20 and liner tools J-36520/J-37365.

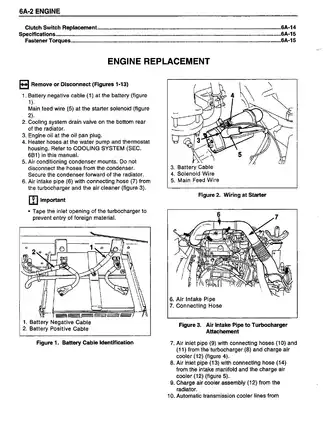

Engine-support warnings explain how jacking under the oil pan can bend it into the pickup screen and damage the oil pickup. Turbocharger service notes identify foreign material entering an uncovered intake as a cause of turbocharger and engine damage.

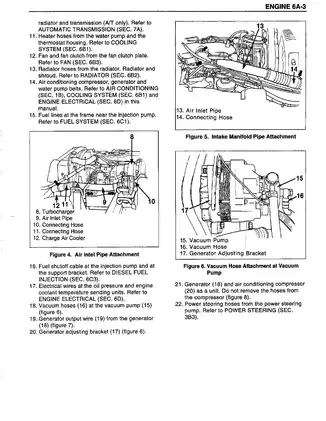

Manual- and automatic-transmission illustrations distinguish engine-mount and flywheel/flexplate arrangements. Transmission overhaul sections referenced by the text are not included in this engine PDF.

Injection Diagnosis and Pump-Service Limits

Symptom charts connect hard starting, rough idle, low power and exhaust smoke with possible fuel, timing and mechanical causes. Used alongside the compression-check procedure, they help technicians distinguish fuel-system faults from loss of compression.

The Bosch-type inline injection system uses ZEXEL components serviced by Bosch. Coverage includes aneroid and boost-compensator operation, nozzle opening-pressure adjustment with shims, spray-pattern and leakage checks, and nozzle cleaning tools.

Pump-service boundary: Internal injection-pump and governor faults are directed to an authorized service dealer. The included procedures cover pump removal, installation and timing rather than an internal pump rebuild.

Cooling, Fan Adjustment and Exhaust Brake Diagnosis

Cooling charts address overheating, coolant loss and lack of heat. Further tests cover air entering the cooling system and exhaust-gas leakage, while the oil-cooler section includes flushing and replacement.

Fan adjustment includes measured radial runout, shim dimensions and shim-placement drawings. Drive-belt diagnosis distinguishes pulley misalignment, slipping and belt damage.

The Exhaust Brake and Engine Warm-up Controls diagram combines electrical switching with the vacuum circuit. Its diagnostic chart covers failure to engage, weak braking and failure to release.

Starting, Charging and Preheating Circuits

The Charging, Starting and Preheating Systems Circuit Diagram identifies QOS III controller connections, glow-plug relays and separate manual- and automatic-transmission paths.

Generator repair includes the rear-mounted vacuum pump, rotor and stator checks, diode testing and regulator tests. Starter coverage includes no-load testing and solenoid pull-out, hold-in and return tests. Complete cab/chassis wiring referenced in Section 8F is not included.

A Preview of Valve, Liner and Bearing Specifications

Cold valve clearance is specified as 0.4 mm for both intake and exhaust valves. The valve-adjustment illustrations show the corresponding crankshaft positions.

The liner tables list production bore diameters of 102.021–102.060 mm, with separate size-grade selection information. Main-bearing inspection uses an 80.0 mm nominal bearing inside diameter alongside journal measurements and clearance limits.
