2006 MAN D 2840 LE 301 & D 2842 LE 301 Marine Diesel Repair Manual (P/N 51.99598−8171)

MAN Nutzfahrzeuge Aktiengesellschaft's repair manual covers the 2006 D 2840 LE 301 and D 2842 LE 301 V-series marine diesel engines. The manual carries document code 51.99598−8171 and technical status 01.2006.

The 194-page PDF contains searchable workshop text, illustrated repair procedures, and embedded bookmarks.

• Fuel system: Injection pump removal and installation, start-of-delivery adjustment, injector testing and repair, filter service, and fuel-system bleeding.

• Marine cooling: Coolant-pump repair, seawater-pump disassembly and assembly, heat-exchanger pipe-cluster service, coolant filling and bleeding, and thermostat testing.

• Lubrication: Oil-cooler replacement, two-gear and three-gear oil-pump repair, pressure-relief valves, and piston-cooling oil nozzles.

• Internal engine repair: Cylinder-head overhaul, valve-clearance setting, compression testing, camshaft and crankshaft service, piston-ring installation, and cylinder-liner replacement.

• Intake and exhaust: Turbocharger troubleshooting, axial/radial shaft-clearance measurement, wastegate function checks, intercooler removal, and intake/exhaust-pipe installation.

• Electronic speed control: GAC governor fault tracing, speed-pickup checks and replacement, actuator tests, and control-unit connection diagrams.

This manual assumes diesel-engine expertise; MAN specifies authorized skilled personnel for checks, adjustments, and repair work.

Fuel Injection and GAC Speed Control

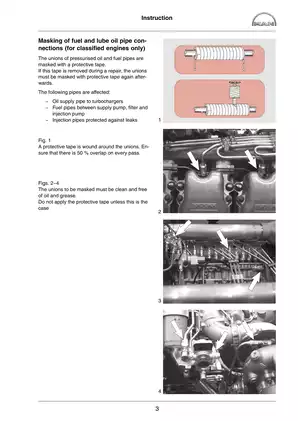

The fuel section covers the Bosch inline injection pump and DLLA 146 P 581 injectors. Manual test-stand procedures address opening pressure, leakage, and spray pattern, while the Fuel Diagram shows the pump, filters, and injector connections.

Delivery-start data distinguishes 1,500- and 1,800-rpm constant-speed operation and fuel-consumption- versus NOx-optimized versions. These distinctions help technicians select the timing specification that matches the engine configuration.

The GAC ESD 5221 connection drawing identifies terminals and adjustments. No-start tests cover the battery supply, speed pickup, actuator, and control-unit output. ESD 5221 is presented as an example; installation and commissioning require the applicable controller's operating instructions.

Marine Cooling, Lubrication, and Turbochargers

The Schematic Diagram of Cooling System separates the engine-coolant and seawater circuits. Heat-exchanger pipe-cluster pages address baffle positioning, repair, and cleaning. A seawater-pump exploded view identifies the shaft, impeller, bearings, and mechanical seal.

Oil-cooler instructions distinguish ten- and twelve-cylinder arrangements. Separate oil-pump sections cover gear inspection, drive-gear fitting, and axial-clearance measurement. The Engine Lubrication Schedule maps bearing feeds, piston-cooling nozzles, and turbocharger oil lines.

Turbocharger diagnosis addresses excessive oil consumption, low output, abnormal noise, and oil accumulation in the charge-air system before replacement is considered.

Cylinder Heads, Crankgear, and Seals

Internal engine work includes valve-guide and seat-insert replacement, valve-seat reworking with the Mira machining tool, piston-ring orientation, and liner/piston protrusion measurements. A valve-timing diagram accompanies the timing checks and camshaft procedures.

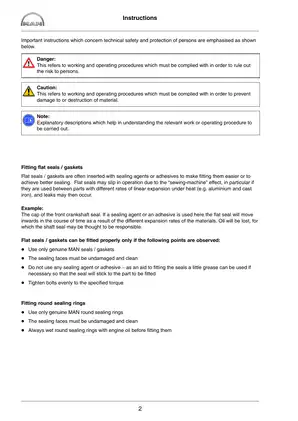

Flywheel and front-end sections cover vibration-damper removal, starter-ring-gear fitting, crankshaft bearing races, and PTFE crankshaft seals. MAN warns that oil or grease contamination makes these PTFE seals unusable and can cause leaks.

Service Data, Special Tools, and Repair Limits

Service Data provides model-specific fluid capacities, wear limits, repair-size bearing and liner dimensions, electrical test values, component torque tables, and staged cylinder-head bolt tightening sequences.

The illustrated tool catalog identifies the compression-test connection 80.99607−0002 and cylinder-liner extractor 80.99602−0019, alongside seal-installation tools and drawings for locally made coolant-pump tooling.

Attachment procedures cover starter motors, 55 A and 120 A alternator installations, V-belts, and the hydraulic-pump power take-off (PTO). MAN requires engine removal for the work described and refers internal injection-pump and alternator repairs to its service department or the component manufacturer's service department.

Observe the manual's safety requirements for heavy-component lifting, pressurized fuel, and preventing unintended starting from the bridge.

File Format and Readability

The total includes 190 numbered pages, including two Notes pages, plus front and back covers and two unnumbered blank pages. All are already included in the stated page count.

The workshop text is searchable. Image-based cover text and labels embedded in some illustrations are not searchable. 104 PDF bookmarks provide access to repair sections, Service Data, special tools, and the index.

Small terminal and circuit labels in the GAC control diagrams are readable when enlarged.
