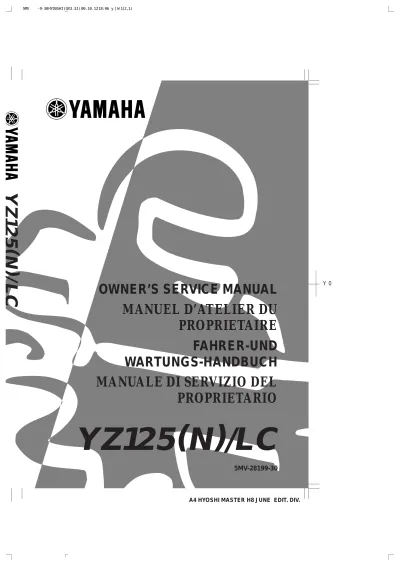

2001 Yamaha YZ125(N)/LC Owner's Service Manual (P/N 5MV-28199-30)

This official 558-page Yamaha OEM PDF publication (P/N 5MV-28199-30, first edition June 2000) is the factory-authorized reference for the 2001 YZ125(N)/LC series. It specifically documents liquid-cooled 2-stroke engine performance, chassis settings, and 6-speed transmission specifications for the 5MV-series build.

• Contains over 50 exploded-view diagrams
• Features comprehensive torque tables
• Includes detailed maintenance interval schedules for racing preparation
• Covers critical break-in procedures for internal components and specialized tuning adjustments
• Details the Mikuni TMXX38SS carburetor, YPVS governor, water pump, CDI magneto, and reed valve
• Outlines the shift cam, shift forks, primary driven gear, swingarm, rear shock absorber, and steering head

Documentation Overview

The service manual provides an in-depth look at the operational procedures, inspection points, and basic maintenance tasks required to keep this machine race-ready. Organized into seven distinct chapters, the text breaks down the technical layout of the engine, chassis, and electrical systems. It offers clear reference material for engine removal, transmission assembly, and front fork adjustments. By detailing step-by-step instructions for complex jobs like completely splitting the crankcase, rebuilding the rear shock absorber, and overhauling the front forks, it empowers you to fix severe mechanical issues yourself and bypass expensive dealership repair bills. The publication covers all global variants, ensuring accurate assembly specs regardless of the domestic or international configuration you are working on. Working on high-performance dirt bikes carries inherent risks, so referencing these factory-approved torque sequences and structural limits is crucial to maintain structural integrity and prevent equipment failure or personal injury during a ride.

When servicing the 2001 YZ125, mechanics must navigate specific model traps. For example, holding the inner fork tube vertically during damper rod installation is a notorious pitfall that can cause the rod to drop and irreparably damage the internal base valve. Additionally, installing the connecting rod nut on the wrong side of the chassis will cause it to contact the swingarm during rear shock compression, leading to severe suspension binding.

Specification and Technical Reference

Mechanics will find detailed specifications for every major mechanical component. This includes critical parameters like piston-to-cylinder clearance, gear ratios, and cooling system capacities. The manual directly enhances daily workshop efficiency through its sequential format, utilizing an intuitive problem-arrow-action layout (e.g., Pitting/Damage → Replace) and clear job instruction charts. This allows technicians to instantly determine component viability and perform the correct repair without skimming through dense paragraphs. The engine assembly data calls out specific torque values, noting 28 Nm for the cylinder head nuts and 80 Nm for the clutch boss, allowing for precise bench work.

Beyond the text, technicians benefit from essential wiring diagrams, cable routing diagrams, sectional views, and tuning charts to guide every procedure. The diagnostic charts deliver hard numbers for electrical troubleshooting, such as the CDI magneto pick-up coil resistance specified at 248–372 ohms. You also get exact fluid requirements, with the coolant system capacity listed at 1.00 liters to assist with radiator top-offs and flushes. Reed valve inspection data is mapped out in the engine tables to help verify intake tolerances.
