2007–2012 Yamaha YZ85W1 Service Manual PDF (P/N LIT-11616-20-08)

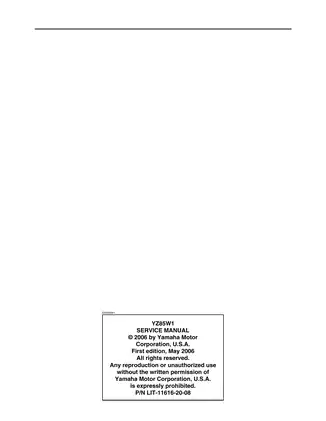

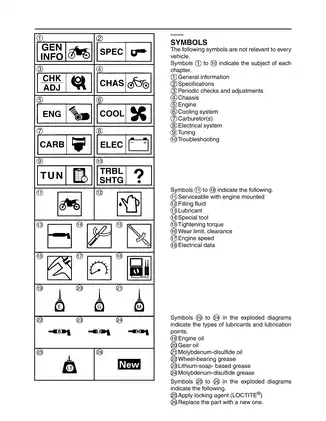

This 2007–2012 Yamaha YZ85W1 service manual is publication LIT-11616-20-08, first edition May 2006, for U.S. model code 5PAG. It covers periodic maintenance, mechanical repair, electrical diagnosis and competition tuning.

• Engine repair: Engine removal, cylinder-head and piston inspection, crankcase separation, crankshaft installation, clutch service and transmission disassembly.

• Brakes and running gear: Hydraulic brake bleeding, master-cylinder and caliper overhaul, wheel-bearing replacement, steering-head service and swingarm inspection.

• Suspension service: Telescopic front-fork disassembly, seal replacement and reassembly, plus rear-shock inspection, Monocross linkage service and damping adjustments.

• Cooling system: Radiator removal, cap-pressure and cooling-system leak tests, plus water-pump impeller, shaft, bearing and oil-seal service.

• Fuel system and tuning: Keihin PWK28 and reed-valve inspection, float-level adjustment, atmospheric jetting guidance and symptom-based carburetor setting charts.

• Ignition diagnosis: CDI magneto service, switch-continuity checks, coil-resistance tests and wiring diagrams for the engine stop switch, CDI unit and ignition coil.

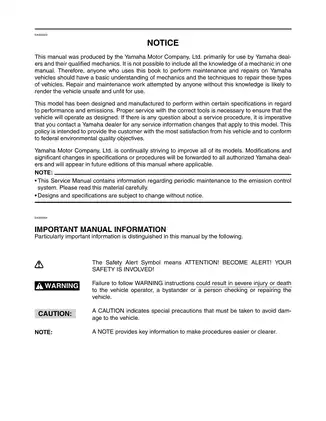

Written primarily for Yamaha dealers and qualified mechanics, the manual assumes a working knowledge of mechanics and the techniques used to service these machines.

Engine, Clutch and Transmission Repair

Piston selection: The piston-and-cylinder matching chart links cylinder grades A–D with the corresponding color-coded pistons. This helps identify the correct replacement piston before ordering rather than treating every cylinder as the same size.

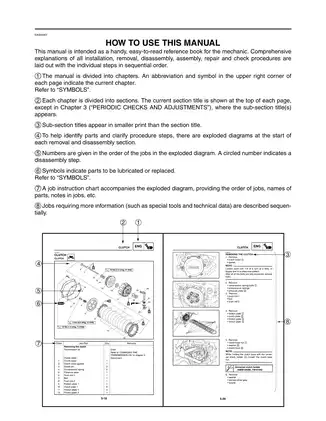

Bottom-end work: Exploded views and job instruction charts identify transmission shaft assemblies, shift-fork orientation and crankshaft components. The special-tool references include crankcase separator 90890-01135 / YU-1135-A and U.S./Canada crankshaft installation tools YU-90050 and YM-1277.

Crankcase separation cautions address the risk of damaging case halves and gasket mating surfaces when components are forced apart. Clutch inspection covers friction plates, plate warpage, springs, housing wear and push-rod condition.

Carburetor Inspection and Competition Tuning

The atmospheric-conditions table relates air pressure, humidity and temperature to mixture changes. Throttle-opening charts distinguish the operating ranges of the main jet, pilot circuit and jet needle.

Road-condition and symptom tables provide carburetor setting examples, supported by jet and needle part-number tables. These examples require evaluation against actual engine operation and spark-plug condition; they are not universal settings for every riding condition.

Radiator and Water-Pump Testing

Radiator-cap testing is separate from the cooling-system leak check, with tester and adapter references for both procedures.

Water-pump assembly notes highlight the risk of damaging the oil-seal lip or dislodging its spring during impeller-shaft installation.

Fork Overhaul, Suspension Settings and Brake Service

Front-fork exploded views identify the damper rod, base valve and seals. Suspension-setting charts connect stiffness, bottoming and poor grip with the relevant damping, spring and oil-level checks. Compression and rebound adjustment positions are tabulated for the fork and rear shock.

Rear-shock coverage addresses removal, inspection, external spring components and adjustment. The nitrogen-charged damper and gas cylinder must not be opened.

Brake-hose routing drawings accompany the hydraulic service procedures. Follow the manual’s brake-system precautions and securely support the machine during wheel and suspension work.

Ignition Fault Tracing and Troubleshooting

The no-spark/intermittent-spark troubleshooting chart separates spark-plug, cap, ignition-coil, stop-switch, pickup-coil and charging-coil checks before CDI replacement. Ignition-timing checks use a dial gauge and rotor/stator alignment marks.

Monochrome and color wiring diagrams show component connections, connector layouts and wire-color codes. A separate troubleshooting chapter addresses starting and running faults, clutch and shifting problems, overheating, poor braking and unstable handling.

Engine Inspection and Cooling Specifications

The engine tables specify maximum cylinder-head warpage of 0.03 mm and standard piston-to-cylinder clearance of 0.040–0.045 mm, with a clearance limit of 0.10 mm. The specified NGK BR10EG spark plug has a 0.5–0.6 mm gap.

Radiator-cap opening pressure is listed as 93–123 kPa. Component-specific torque tables in Nm and ft-lb, fluid capacities, gear ratios, intake inspection data and a metric/imperial conversion table accompany the repair procedures.

Text Search, Bookmarks and Wiring Detail

Finding sections and reading diagrams: Searchable PDF text and 64 embedded bookmarks provide access to contents pages, technical sections and the appended wiring diagrams. Small connector and wire-code labels are clearest when enlarged; the color diagram also distinguishes the wiring visually.

Supplied as one printable, 250-page PDF: 14 front-matter pages, 233 chapter pages, one publisher closing page and two wiring-diagram pages. All are included in the total.
